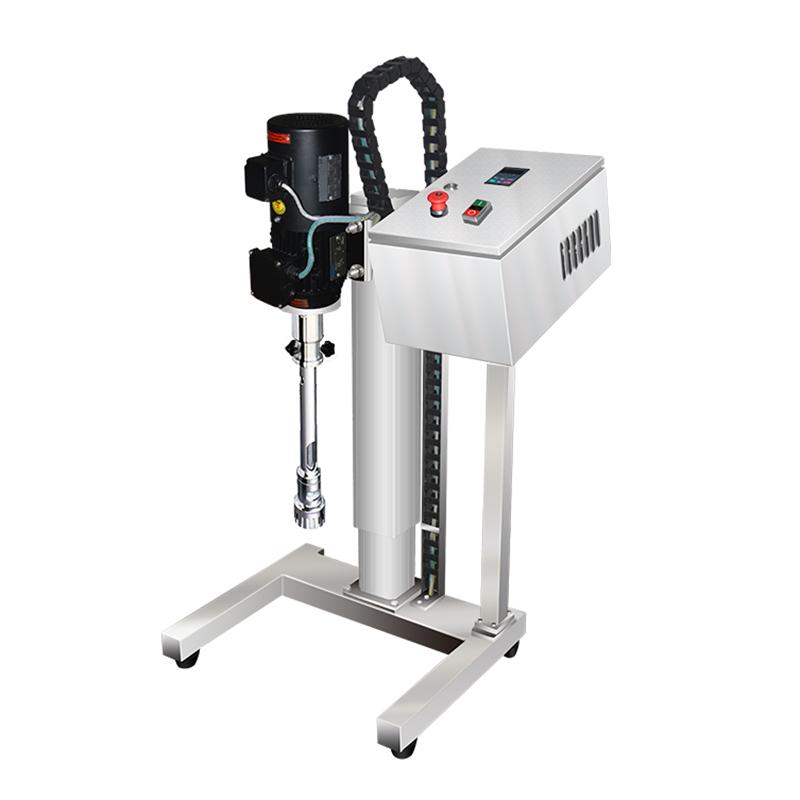

Huxi HR-90Z Pilot High-Shear Dispersing Emulsifier electric lift/220V
SE
HR-90Z (electric lift)
HuXi HR-90Z (electric lift) Pilot High Shear Dispersion MulserSPEC
HuXi HR-90Z (electric lift) Pilot High Shear Dispersion MulserDetails
HuXi HR-90Z (electric lift) Pilot High Shear Dispersion MulserPacking list
- SKU
- NB023090
- power
- 1500W
- Power
- 220V 50HZ
- Standard throughput
- 5~50L
- Maximum Max. Viscosity
- 5000cp
- Speed range
- 300~3600rpm
- Speed regulation
- Frequency conversion speed regulation
- Speed display
- Digital display
- Work head material
- SS316L
- Bearing material
- PTFE
- Work head specification
- 90F
- Allowable environment temperature
- 5~40℃
- Allowable Relative Humidity
- 80%
- Protection class
- IP54
- Overload protection
- Yes.
- Process type
- batch processing
- Lifting method
- Electric lift
- Work frame, base material
- SS304, CS spray
- Lifting stroke
- 400mm
- Dimensions
- 710*550*1060mm
- Weight
- ~50Kg
- Encasement
- wooden box
Applications
● Shanghai HUXI pilot high shear dispersion emulsifier is designed for pilot test, simulated production and small batch production in factories. The standard working head adopts a claw structure, and the suitable stator and rotor can be freely replaced according to different materials and process requirements
Features
● Laboratory pilot equipment, processing capacity 50L (H2O)
● Only need to replace the working head, the equipment can achieve strong stirring, dispersion, homogenization, emulsification, interception mixing, solid-liquid dispersion mixing, grinding and other functions
● The equipment is equipped with a high-speed inverter motor, which is started when the inverter is turned on to protect the equipment, and the speed can be adjusted and displayed
● Continuous working time up to 8 hours
● The dispersion head adopts the quick connection method, which is easy to disassemble and replace
● Modular design of the equipment, which can be flexibly combined
