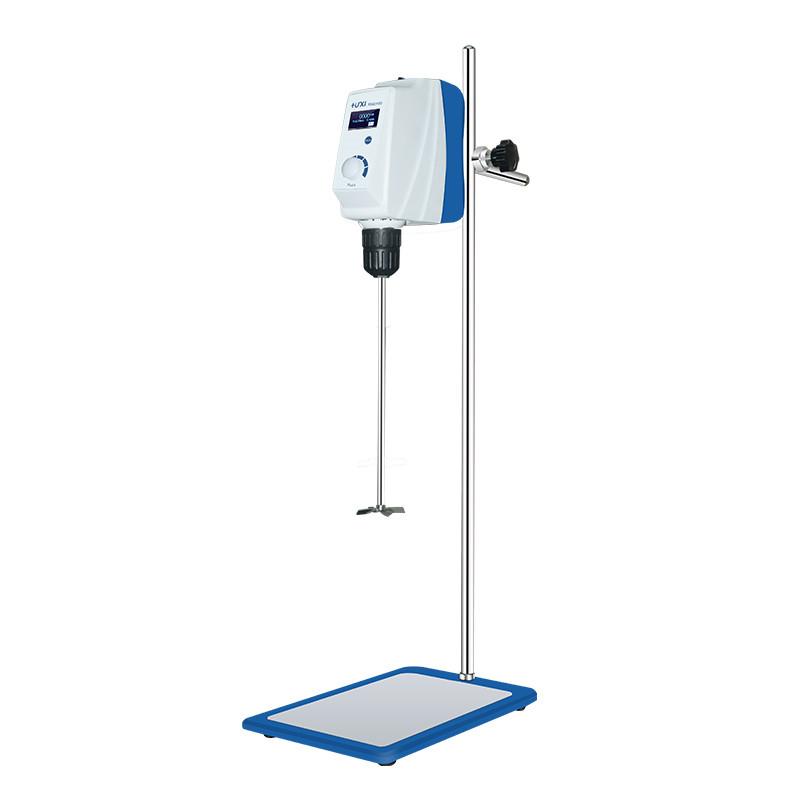

Huxi RWD50 (set) overhead Overhead Stirrer
SE
RWD50 (set)
HuXi RWD50 (set) Overhead Overhead StirrerSPEC
HuXi RWD50 (set) Overhead Overhead StirrerDetails
HuXi RWD50 (set) Overhead Overhead StirrerPacking list
- SKU
- NB023119
- Capacity
- 20L
- Speed range
- 30~2200rpm
- Speed display
- LCD
- Timer
- 1~9999min
- Stir time settings
- Yes.
- Speed display resolution
- ±1rpm
- Speed memory function
- Yes
- Speed regulation
- Crude and fine tuning
- Max Torque
- 40N.cm
- Maximum Viscosity
- 10000mPa·s
- Impeller fixing method
- Self-locking chuck
- Rotary collet clamping range
- Ph0.5 ~ 10mm
- safety protection
- Collet protective cover, safety buckle, non-slip pad
- safety protection
- Display fault, stop automatically
- safety protection
- Display fault, stop automatically
- Input power
- 120W
- output power
- 100W
- Rated Voltage
- 100~240VAC
- Rated frequency
- 50/60Hz
- power
- 70W
- Protection class
- IP42
- Allowable environment temperature
- 5~40℃
- Allowable environment humidity
- ≤80%
- Data Interface
- RS232
- Dimensions
- 160*80*180mm
- Total Weight
- 2.5kg
Overhead (powerful) electric agitators are suitable for mixing medium to high viscosity liquids. hostTo be used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health care products,Food, biotechnology and other fields. The product can be competent for high-load, ultra-long continuous workOutstanding performance. With automatic protection against overload and abnormal conditions, it ensures that the laboratorySafe.
Applications:
● The liquid display electric mixer adopts numerical control stepless speed regulator, which is high-speed and convenient, and can digitally display the operating speed, so that the machine body is more safe and reliable, professional technology, low-noise mechanical deceleration structure, small size, large output torque, suitable for scientific research, colleges and universities, chemical industry, ** units and other purposes.
Features
● Speed range: 30-2200rpm, constant speed, high-low speed can be accurately controlled. The minimum operating speed is 30 rpm, which can meet the occasion of lower speed. It has a digital feedback of speed to ensure the constant speed and torque of the mixer.
● The speed and time are coarse and fine, the coarse adjustment is fast to the set stirring speed, and the fine adjustment can be accurate to the stirring speed. The time and Operating Time of the equipment can also be fine-tuned during operation.
● Performance: Maintenance-free brushless DC brushless motor, ultra-long continuous and stable operation, outstanding performance.
● Safety protection: including overload protection and motor protection, in case of overload, short circuit and abnormal speed, etc., the circuit will be automatically cut off and alarmed to ensure the safety of operation and laboratory safety.
● Sample spillage prevention: Smooth start-up, effectively prevent sample spillage.
● Closed shell: The closed shell prevents liquid from splashing into the internal corrosion circuit of the machine to ensure safe operation.
● There is a stirring rod penetration hole, the stirring rod is easy to replace, no need to move the stirring head up and down, just easily adjust the height of the stirring paddle.
● Abundant extended applications: It can be connected to an external PC through the RS232 data transmission port to control the instrument and record the speed and torque data.
● Imported self-locking chuck, easy and fast operation, with locking function, to prevent the stirring rod from loosening. High degree of axis.
● LCD displays the set value and actual value of the speed, and can monitor the speed in real time.
● The torque can be automatically adjusted according to the change of sample viscosity, and the speed can be fine-tuned according to the needs during operation, which is convenient for experimental operation.
Structure
Optional stirring paddle
