EASTONG ETC-098 Ultrasonic Thickness Gauge Good conductor thickness for measurement of any hard material and Miscellaneous any ultrasound

EASTONG ETC-098 Ultrasonic Thickness Gauge is the use of ultrasonic Measurement principle for measurement, this ultrasonic thickness Tester can make accurate measurement of various plates and various processed parts, and can also monitor various pipes and Pressure Vessel in production equipment.
Model：
Certificate
Contact
Details SPEC
Similar products

Eastong ETC-098 Ultrasonic Thickness GaugeSPEC

Eastong ETC-098 Ultrasonic Thickness GaugeDetails

Eastong ETC-098 Ultrasonic Thickness GaugePacking list

SKU
NB000232
Measurement range
0.75~ 300.0Mm (determined by the probe)
Probe Frequency
5MHz
Probe style
Split probe
Probe diameter
Φ6mm
Lower limit of pipe measurement
Φ20*3mm
Measurement error
±(1%H+0.1)mm
Display resolution
0.01mm
unit system
mm
Speed of sound
1000~9999m/s
Display
LCD screen
Operating language
Chinese
Application Software
without
Environmental temperature
0~40℃
Working Relative Humidity
≤85%RH
Power Supply
2 * 5 battery
Host size
150*73*32mm
Weight
180G (without battery)
Application
Thickness measurement of any hard material such as steel, cast steel, aluminum, copper, brass, zinc, quartz Glass, polyethylene (PE), polyvinyl chloride (PVC), gray cast iron, ductile cast iron, ceramic, plastic and Miscellaneous any ultrasonic good conductor.
ETC-098
Ultrasonic Thickness Gauge
EASTONG ETC-098 Ultrasonic Thickness Gauge Good conductor thickness for measurement of any hard material and Miscellaneous any ultrasound Picture

Introduction

ETC-098 ultrasonic Thickness Gauge is measured by the principle of ultrasonic measurement, this ultrasonic thickness Detector can accurately measure all kinds of plates and various processed parts, and can also monitor various pipelines and pressure vessels in production equipment.

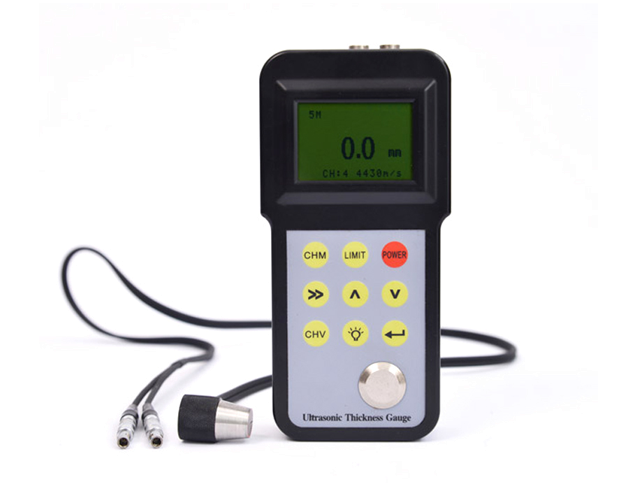

ETC-098 ultrasonic Thickness Gauge display diagram

Application

ETC-098 ultrasonic thickness Detector is widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. It is mainly used to measure the thickness of various materials that can make ultrasonic waves propagate inside at a constant speed and be reflected on their backs.

ETC-098 ultrasonic thickness Detector has .png application fields

FAQ
QHow thick can this ETC-098 Ultrasonic Thickness Gauge be measured?
A ETC-098 Ultrasonic Thickness Gauge The thinnest can measure the measured thickness of 0.75mm.
