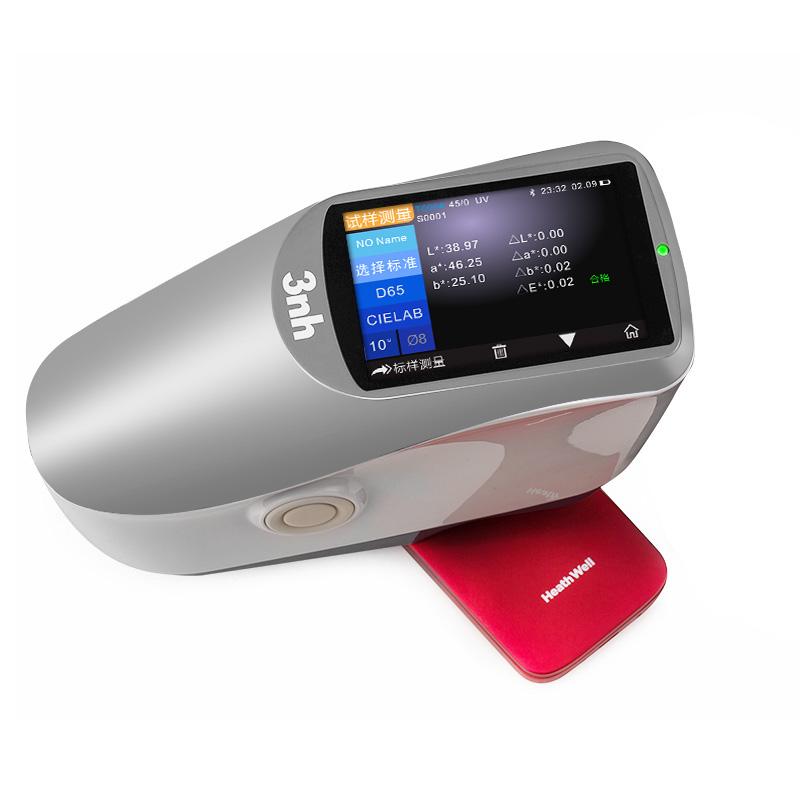

3NH YS4580 Colorimeter

YS4580

Raster Colorimeter

Concave grating spectroscopic mode, φ 20mm large measurement diameter, with UV Light source can measure fluorescent color, with PC software, USB/Bluetooth 2.1 dual communication mode, can measure sample reflectance and various chroma data.

YS4580 high-precision Spectrophotometer adopts the 45/0 (45-degree ring illumination, 0-degree reception) geometrical optical structure conforming to CIE No.15, and adopts the concave grating spectroscopic method, which can accurately measure the reflectance of samples and various chromaticity data. The instrument is equipped with a large measuring diameter of Φ20mm, which is used for accurate color measurement and quality control in traffic road signs, plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries. The instrument has a separate UV light source, which can be used for fluorescent sample measurement. The instrument has built-in standard colors of GB 2893 and GB/T 18833, and the tolerance of polygonal rectangles can be customized manually. One-key can realize the measurement of luminance factor and chromaticity coordinates of traffic road signs, marking lines, and reflective films. For uneven samples with streaks or granular samples, the instrument has high accuracy and high stability.

Under the 45/0 geometric optical lighting conditions recommended by CIE, the instrument can accurately measure the reflectance data of samples/fluorescent samples, and can accurately measure and express various color difference formulas and color indices in various color spaces. With the aid of this instrument, accurate color transfer can be easily achieved, and it can also be used as a testing device for a precise color matching system. The instrument is also widely used in the quality control of color difference of various products. The instrument is equipped with high-end color management software, which can be connected to a computer to achieve more functional expansion.

YS4580 Features

a. Good combination of beautiful appearance and structural design in line with human mechanics;

b.45/0 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833;

c. Using a combined LED light source with long life and low power consumption, including UV / excluding UV (some models);

d. Φ20mm caliber is suitable for testing larger samples or uneven samples;

e. Measure the sample spectrum, the Lab data is accurate, and can be used for color matching and accurate color transfer;

f. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS Detector, etc.;

g. USB/Bluetooth 2.1 dual communication mode, wider adaptability;

h. Super dirt-resistant and stable standard whiteboard;

i. Large-capacity storage space, which can store more than 30,000 test data

j. Two standard observer angles, multiple light source modes, multiple color systems, and chromaticity indicators that meet multiple standards to meet the needs of various customers for color measurement;

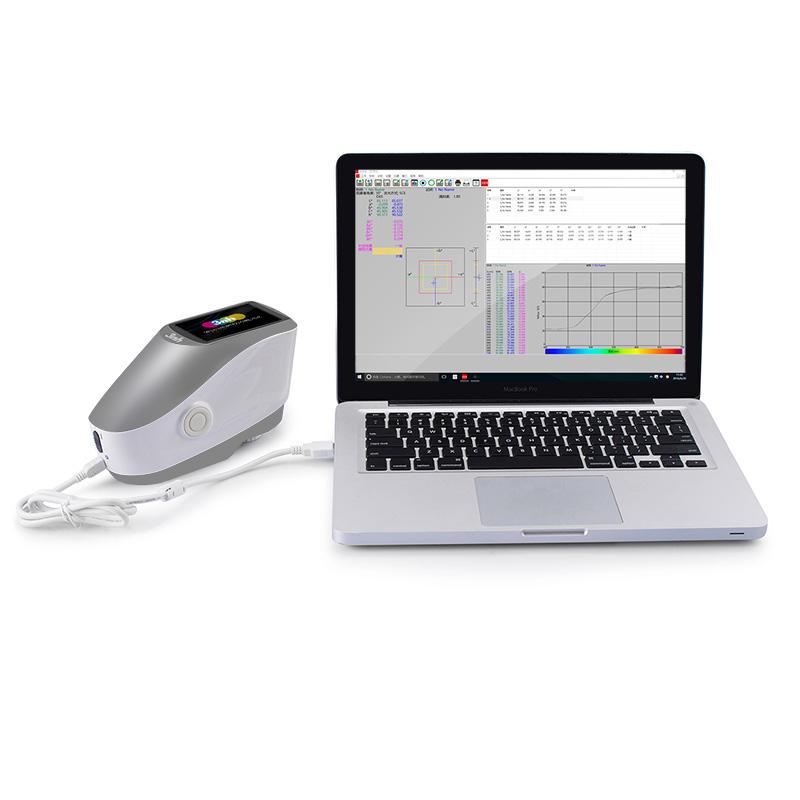

k. PC-side software has powerful function extensions;

l. Built-in standard polygon tolerance setting and specific traffic road sign color gamut, especially suitable for judging the brightness factor and chromaticity performance of traffic road signs.

Packing list：host, power adapter, data cable, built-in lithium battery, manual, quality control software (download required), black and white correction box, protective cover

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
