3NH NS820 Ultra high accuracy Colorimeter D/8 4mm caliber

SE
Standard D/8 ° conforms to standard CIE No.15, GB/T 3978; 3.5 inch capacitive touch screen, repeability accuracy Delta E * ab within 0.04, inter-stage difference Delta E * ab within 0.2, stable test performance; large integrating sphere, more effective homogenization of rays of light, making the measurement data more accurate;
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

3NH NS820 ColorimeterSPEC

3NH NS820 ColorimeterDetails

3NH NS820 ColorimeterPacking list

SKU
NB023222
Lighting method
D/8 ° (diffuse reflection uniform illumination 8 ° reception); in line with standard CIE No.15, GB/T 3978.
Integrating sphere size
F58mm
lighting source
Combination LED light source
Sensors
Silicon photodiode
Wavelength range
400~700nm
wavelength spacing
10nm
Reflectance Measurement Range
0~200%
Measurement caliber
F4mm
Color space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,LAB&WI&YI
Color difference formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00,ΔE(h)
Chromaticity indicator
WI, YI, TI, homochromatic index MI, lightfastmess, color fastness, force
Viewing Angle
CIE 2 ° / 10 °
Observation light source
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5)F11(TL84),F12(TL83/U30)
display mode
Light spectrum graph/data, sample chromatic value, color difference value/graph, pass/fail result, Color bias, Color simulation, Color parameter setting (ΔE * 94 factor, ΔE * cmc factor, ΔE2000 factor), tolerance prompt, inverted display, time setting, language setting, factory reset
Measurement time
1.5s
Spectral reflectance repeability
Standard deviation within 0.1% (400~700nm: within 0.2%)
Inter-station difference
ΔE * from < 0.2
Dimensions
90*77*230mm
Weight
0.6kg
Battery life
Lithium-ion polymer lithium battery, 2800 times in 8 hours
Lighting source life
5 years more than 1.60 million measurements
Display
TFT true color 3.5inch, capacitive touch screen
Data Interface
USB/TTL printing serial port
Data storage
More than 10,000 pieces (1000 pieces of master standard, 10000 pieces of sample)
Operating conditions
0~40℃（32~104°F）
Storage environment
-20~50℃
Chromatic value repeability
ΔE * ab within 0.04
NS820
Colorimeter
Standard D/8 ° conforms to standard CIE No.15, GB/T 3978; 3.5 inch capacitive touch screen, repeability accuracy Delta E * ab within 0.04, inter-stage difference Delta E * ab within 0.2, stable test performance; large integrating sphere, more effective homogenization of rays of light, making the measurement data more accurate;

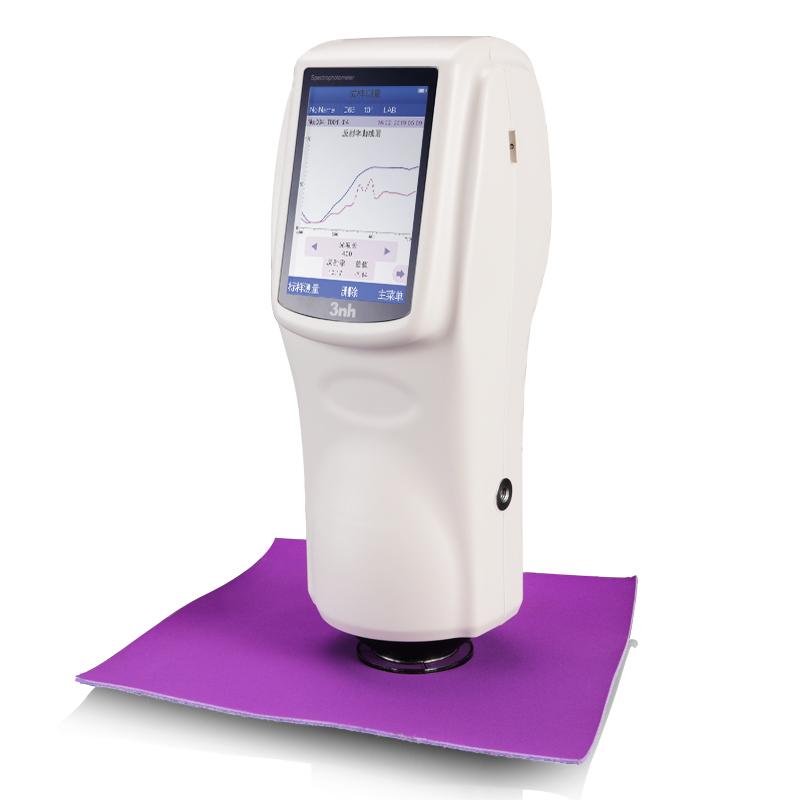

3NH NS820 Ultra high accuracy Colorimeter D/8 4mm caliber Picture

Features

1. Beautiful appearance and structural design in line with human mechanics;

2. Standard D/8° (diffuse reflection uniform illumination 8° reception) conforms to the standard CIE No.15, GB/T 3978;

3.3.5-inch capacitive touch screen pure screen design interface, friendly operation interface, extraordinary operation experience;

4. Two standard observer angles, multiple light source modes, multiple color systems, and chromaticity indicators that meet multiple standards to meet the needs of various customers for color measurement;

5. The repetition accuracy is within ΔE*ab 0.04, the inter-station difference is within ΔE*ab 0.2, and the test performance is stable;

6. Large-capacity storage space, which can store more than 10,000 test data;

7. The PC-side software has powerful function extensions;

8. Higher hardware configuration, incorporating a number of innovative technologies;

9. The large integrating sphere can homogenize the light more effectively and make the measured data more accurate;

The 10.15° screen tilt angle is more in line with the observation habits of the human eye.

FAQ
QWhat light sources are available for NS820 colorimeters?
A A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5)F11 (TL84), F12 (TL83/U30)。
QWhat is the difference between NS810 and NS820?
A Hello, NS810 is 8mm caliber, NS820 is 4mm caliber, and the rest are the same.
QCan NS820 colorimeter test the color difference of liquids?
A Hello, to test the color difference of the liquid, you need to buy a separate test component.
QDoes the 3nh Colorimeter meet the GB/T7975 standard?
A The NS820 Colorimeter can be referred to
QWe want to test the color and lightfastmess of the Spinning & weaving product, which one is suitable?
A Hello, this NS820 colorimeter can test Spinning & weaving lightfastmess.
QWhat is the repeability accuracy of NS820 colorimeter?
A Hello, the sexual repeability accuracy Delta E * ab is within 0.04.
