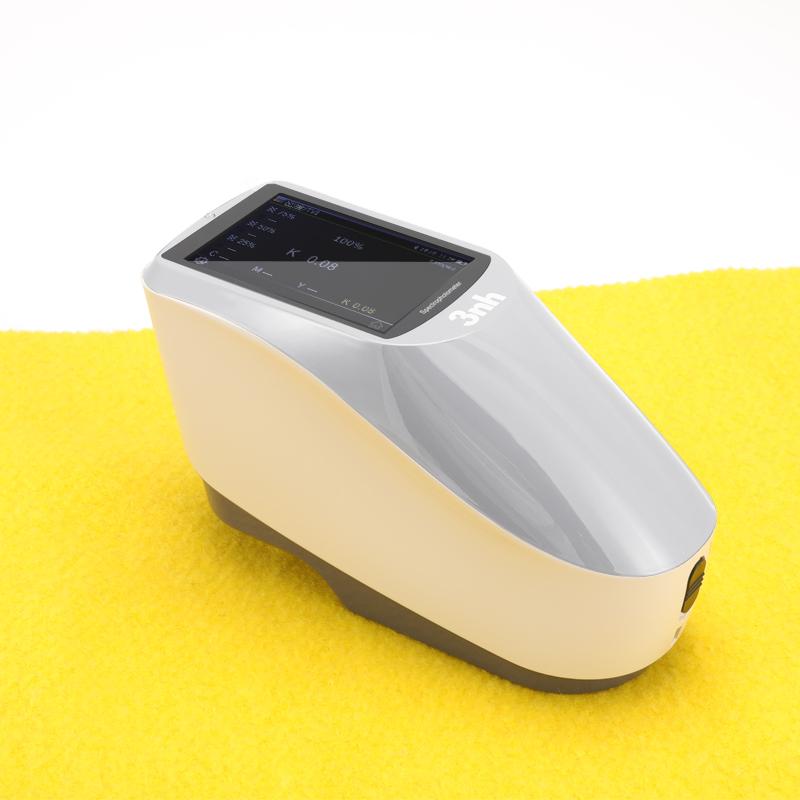

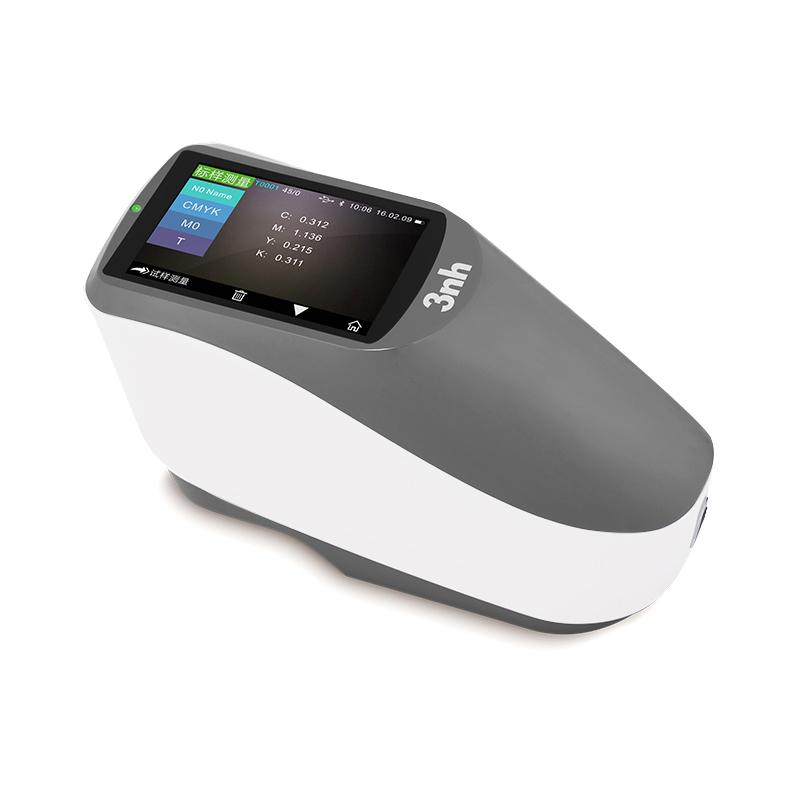

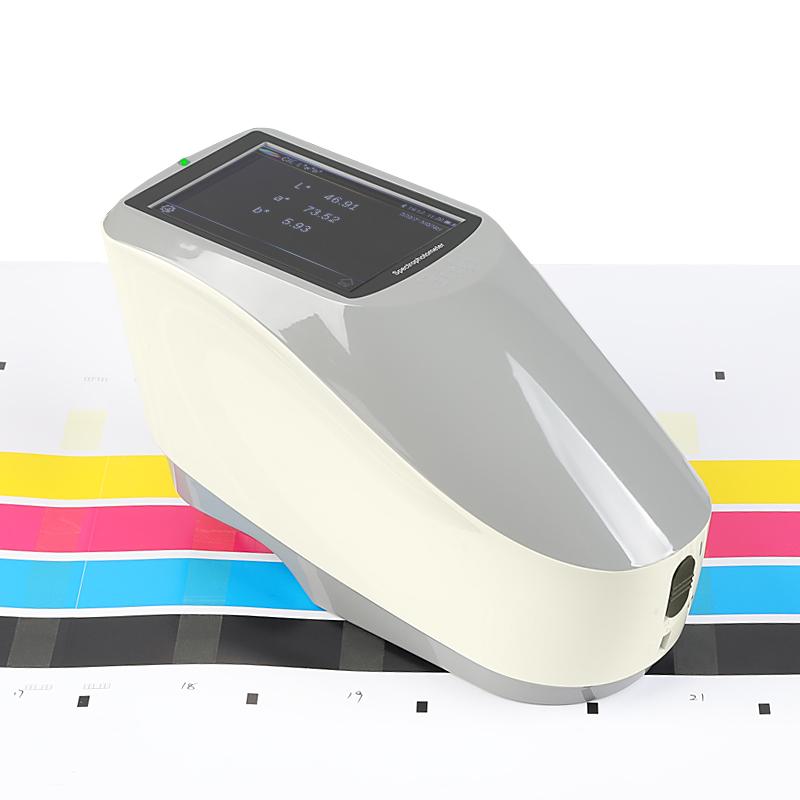

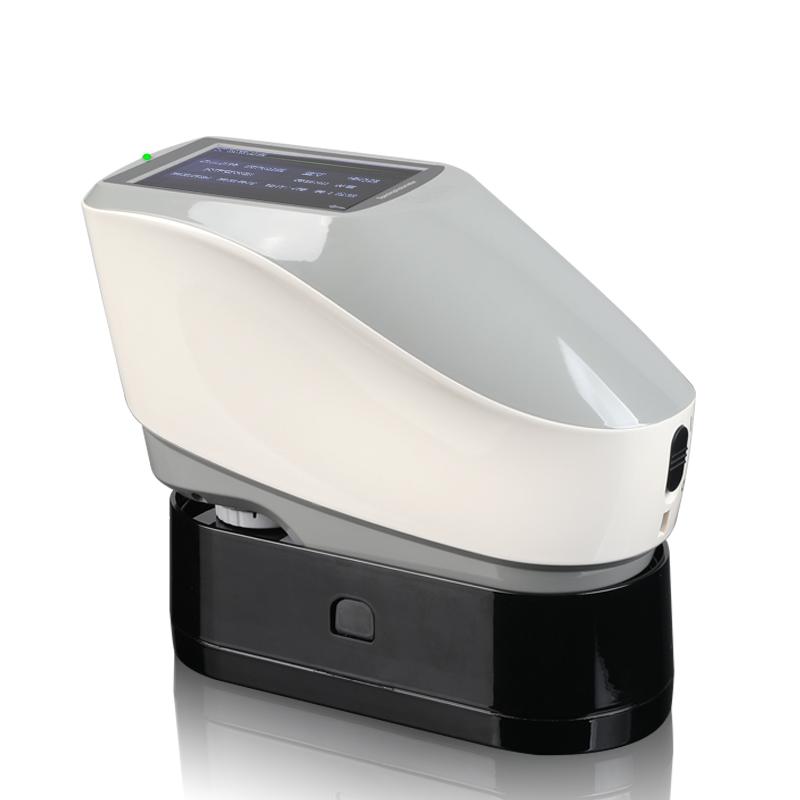

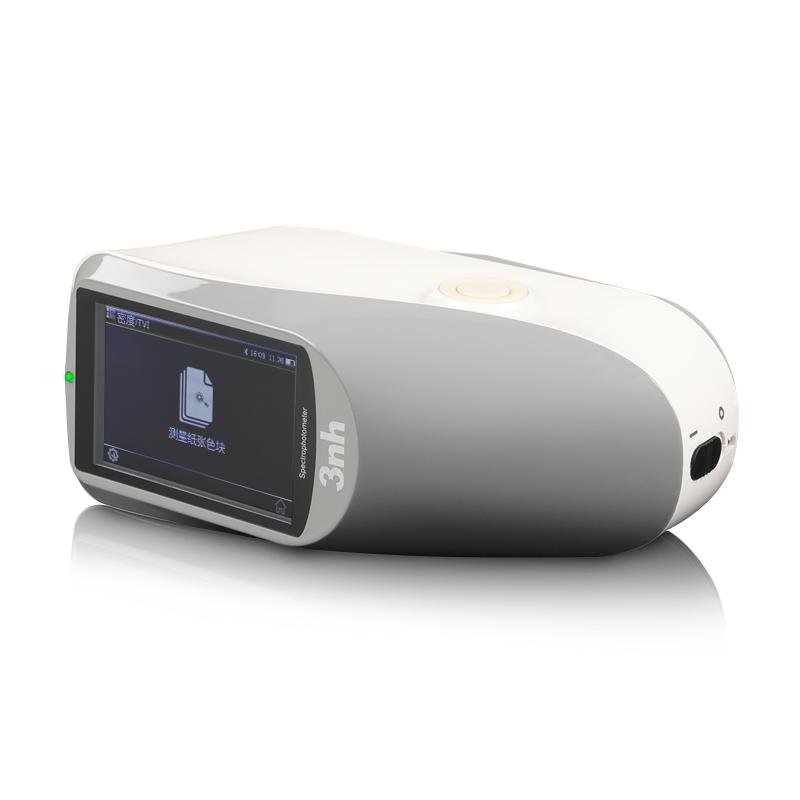

3NH YD5050 Grating density spectrometer, enhanced version

YD5050

Grating Spectrophotometer

With UV Light source can measure fluorescent color, chromatic value Repeatability Delta E * ab within 0.03, ISO Status T, E, A, I density measurement, USB/Bluetooth 2.1 dual communication mode, with PC software.

YD5050 fully complies with the standard ISO 5-4, supports the MO, M1, M2, and M3 test conditions stipulated in the ISO 13655 standard, and can accurately achieve ISO Status T, E, A, and I density measurements.

YD50 series instruments are stable, accurate in measuring density and colorimetric data, and powerful. The instrument is equipped with a variety of measurement calibers and is widely used in ink printing factories, paper mills, traffic sign industries, textile and clothing printing and dyeing and other industries, as well as in scientific research institutions, quality inspection institutions, and laboratories.

Under the 45/0 geometric optical lighting conditions recommended by CIE and based on the MO, M1, M2, and M3 test conditions stipulated in the ISO 13655 standard, the instrument can accurately measure the reflectance data of the sample. In a variety of color spaces, it can measure various Density indicators, color difference formulas, and color indexes can be accurately measured and expressed. This instrument is also widely used in color difference quality control of various products. The instrument is equipped with high-end color management software, which can be connected to a computer to achieve more functional expansion.

Features

a.45/0 geometric optical structure, compliant with CIE No.15, supports MO, M1, M2, M3 test conditions stipulated in the ISO 13655 standard, and accurately achieves ISO T, E, A, and I density measurements;

b. Beautiful appearance and structural design that conforms to human mechanics;

c. Use a combination LED light source with long life and low power consumption, including UV light;

d. Φ2/4/8/20mm diameter can be selected at will to adapt to more tested samples;

e. Measure the sample reflection spectrum, CMYK density, and Lab data accurately, which can be used for accurate color transmission;

f. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS Detector, etc.;

g.USB/Bluetooth 2.1 dual communication mode, wider adaptability;

h. Dirty-resistant, stable standard whiteboard;

i. Large capacity storage space, can store more than 20,000 test data

j. Two standard observer angles, multiple light source modes, multiple color systems, and multiple standard chromaticity indicators to meet the needs of various customers for color measurement;

k. Especially suitable for process control and quality control in printing plants;

l. The PC software has powerful function extensions;

Packing list：host, power adapter, data cable, built-in lithium battery, manual, quality control software (download required), black and white correction box, protective cover, polarization filter box, positioning plate

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
