3NH YG60S 60 ° Single Angle Glossiness Meter

SE
YG60S 60 ° economical Glossiness Meter is a gloss Measurement Instrument designed and manufactured with reference to international standard ISO2813 and Chinese national standard GB/T9754, equipped with high-end quality management software, to meet the requirements of JJG696 secondary work Glossiness Meter.
$161.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

3NH YG60S GlossmeterSPEC

3NH YG60S GlossmeterDetails

3NH YG60S GlossmeterPacking list

SKU
NB023227
Geometry
60°
Measuring Areas
9*15mm(60°)
Measurement range
0~200GU
Division Value
1GU
Measurement mode
Basic mode
Measurement time
0.5s
Repeatability
0~100GU:±1GU ;100~200GU:±1%GU
Accuracy
Meet the requirements of JJG 696 secondary working glossiness instrument
Automatic shutdown time
30 seconds
Calibrate
Manual calibrating
Operating language
Simplified Chinese, English, Traditional Chinese
data storage
without
Display
2.3 inch black and white display
Dimensions
160*52*84mm
Weight
Approx. 300g (including calibration box and battery)
Power
1 AA battery (AA alkalinity battery or nickel-metal hydride rechargeable battery), which can be measured more than 10,000 times
Data Interface
USB powered only
software
without
Operating Temperature
0~40℃
Storage temperature
-20~50℃
Environment Operating Humidity
Less than 85% RH, no condensation
Standards
ISO2813、GB/T9754、JJG696
YG60S
Glossmeter

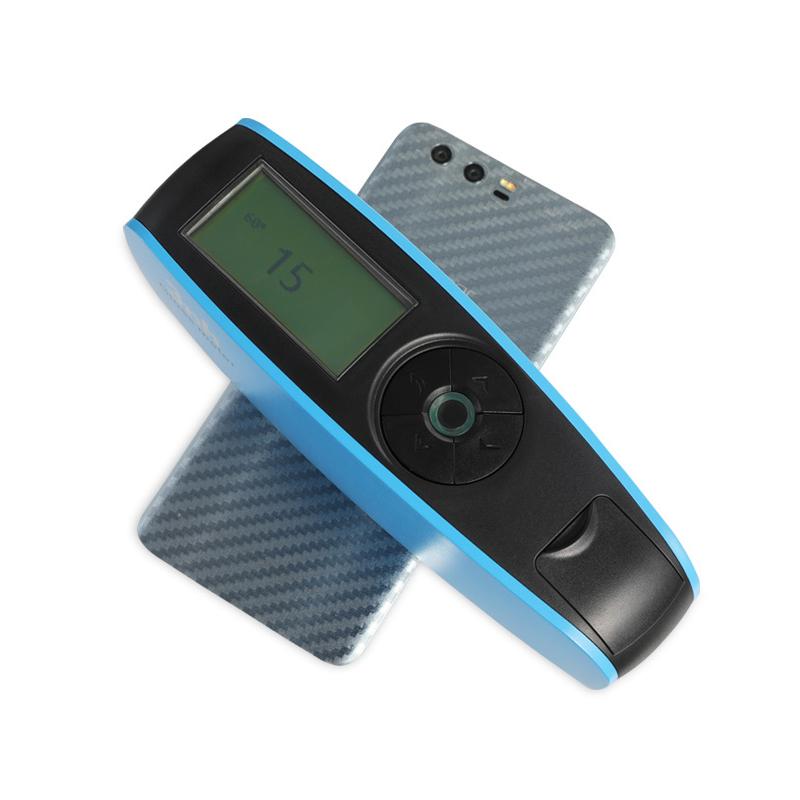

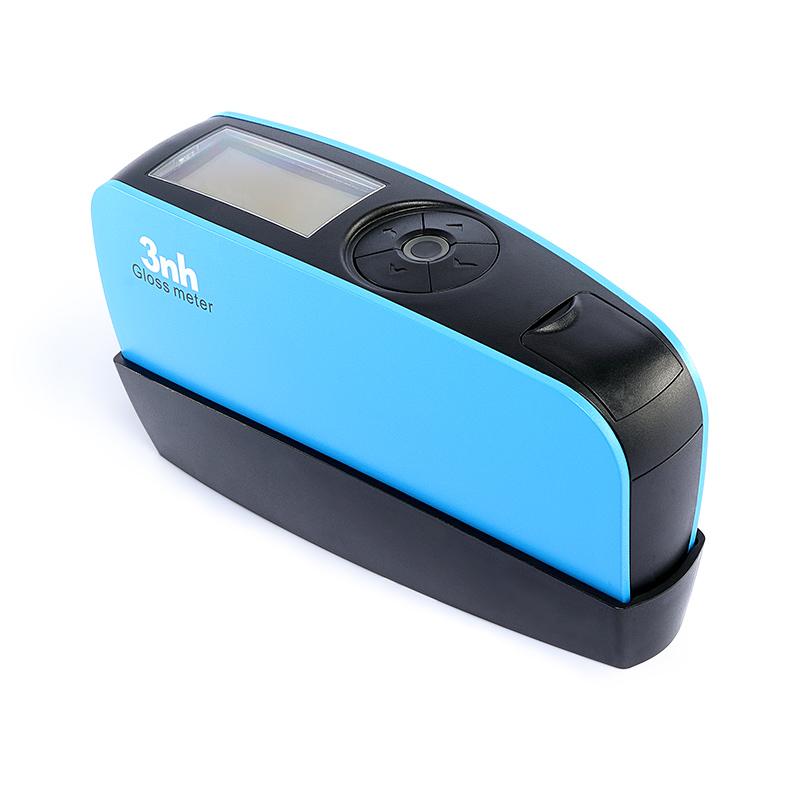

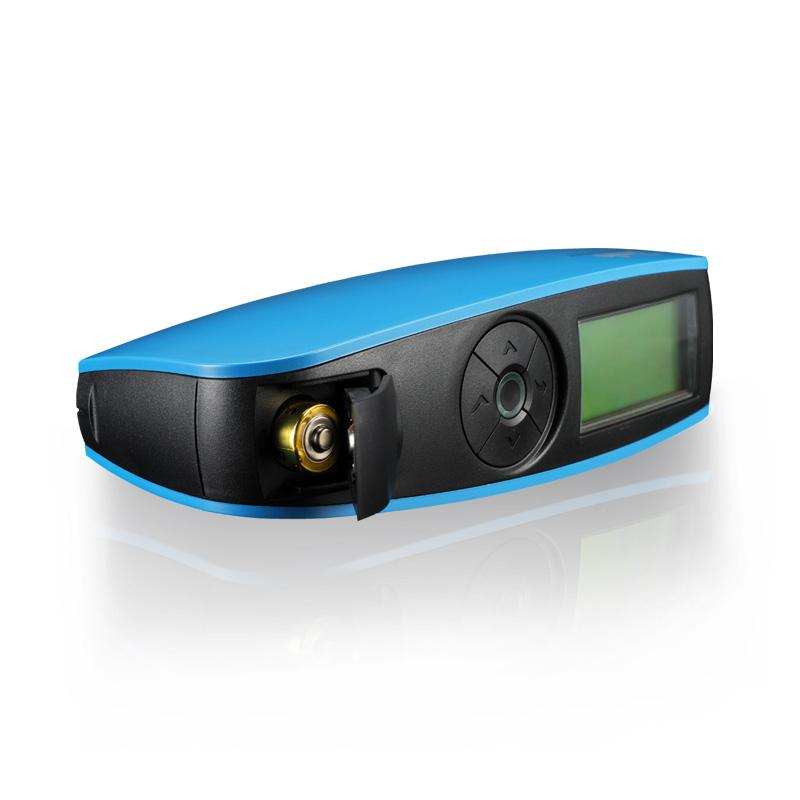

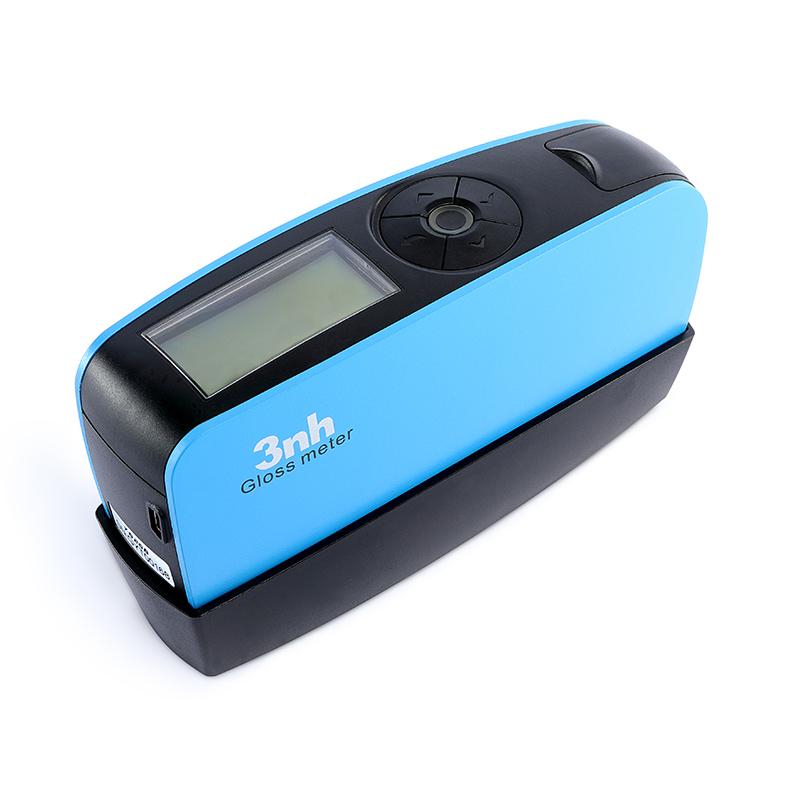

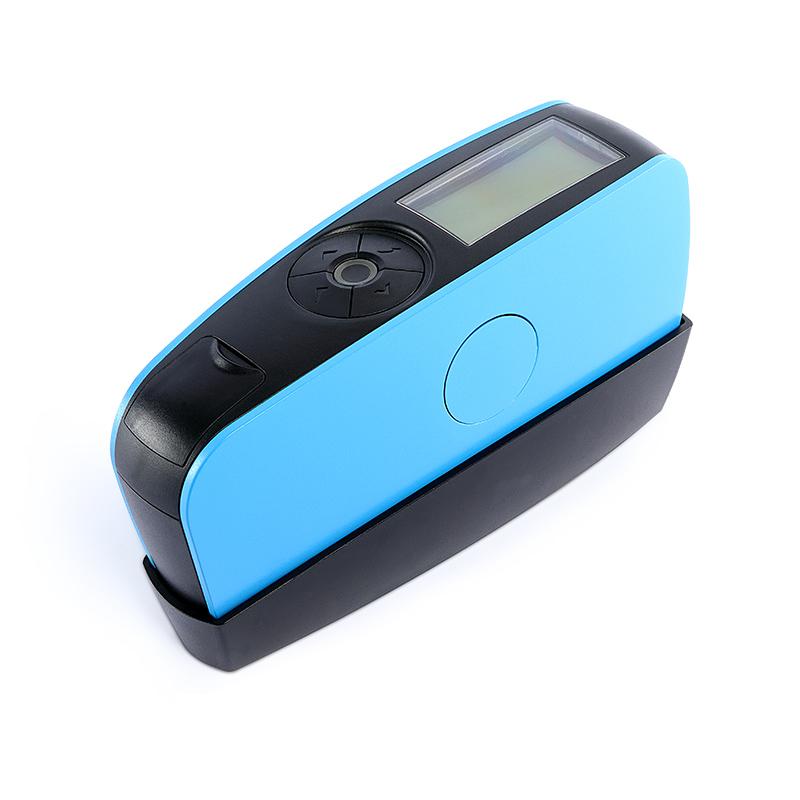

3NH YG60S 60 ° Single Angle Glossiness Meter Picture

YG60S 60° economical gloss meter is a gloss measuring instrument designed and manufactured according to international standard ISO2813 and Chinese national standard GB/T9754. It is equipped with high-end quality management software and meets the requirements of JJG696 second-level working gloss meter.

Features

1. Close combination of aesthetic surface design and ergonomics;

2. It has the function of automatically checking and calibrating the standard plate;

3. Meet the requirements of JJG696 secondary working gloss meter;

4. With automatic shutdown function;

5. Conform to the standard ISO2813, ASTMD523, GB/T9754;

Application

Used for gloss measurement and quality inspection in paint ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.

FAQ
QWhat is the difference between YG60S and HG268?
A YG60S single angle, generally Stone factory, furniture factory measured Stone floor; and HG268 is three angles, lithium battery charging, large color screen, accuracy is also very high.
QThe value measured by YG60s can only be accurate to integers?
A Yes!
QHow long is the measurement time of this 3nh YG60S single angle glossmeter?
A Hello, the measurement time is 0.5S.
QDo you have the glossmeter required in the ASTMD3928 standard?
A This YG60S glossmeter will do.
QWhere does Sanenchi's YG60s gloss erase measurement data?
A Hello, you can choose from Data Management, but be careful, because the deletion operation will clear all corresponding records at one time.
QWhat is the difference between the 3nh YG60s gloss instrument and the YG60?
A Hello, the Gloss ranges of the two models are different. The measurement range of the YG60s is 0~ 200GU, while the Gloss range of the YG60 model is 0~ 1000GU.
