China

KORNO GT-2000-VOC Gas Analyzer

Model:
Certificate

KORNO GT-2000-VOC Gas AnalyzerSPEC

KORNO GT-2000-VOC Gas AnalyzerDetails

KORNO GT-2000-VOC Gas AnalyzerPacking list

SKU
NB023284
Detect gas
VOC
detection Accuracy
≤±3%
Response time
≤20s(T90)
Linearity
≤±1%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Protection level
IP65
Repeatability
≤±1%
intrinsic safety certification
CNEx16.0537
Expansion gas
Supports 1-12 Sensors, any combination
Humidity
Optional accessories, temperature detection range -40~120 ℃, Humidity detection range
Sampling method
Pump suction
Data storage
Real-time storage, Timer storage can be set; 120,000 groups of data can be stored
Operating temperature
-30~60℃
Dimension
230*120*220mm
Net Weight
2.5 Kg
Production license
Guangdong 00001052 (CMC metrology authentication)
execution standard
GB3836.1-2010、GB3836.4-2010
GT-2000-VOC
Gas Analyzer

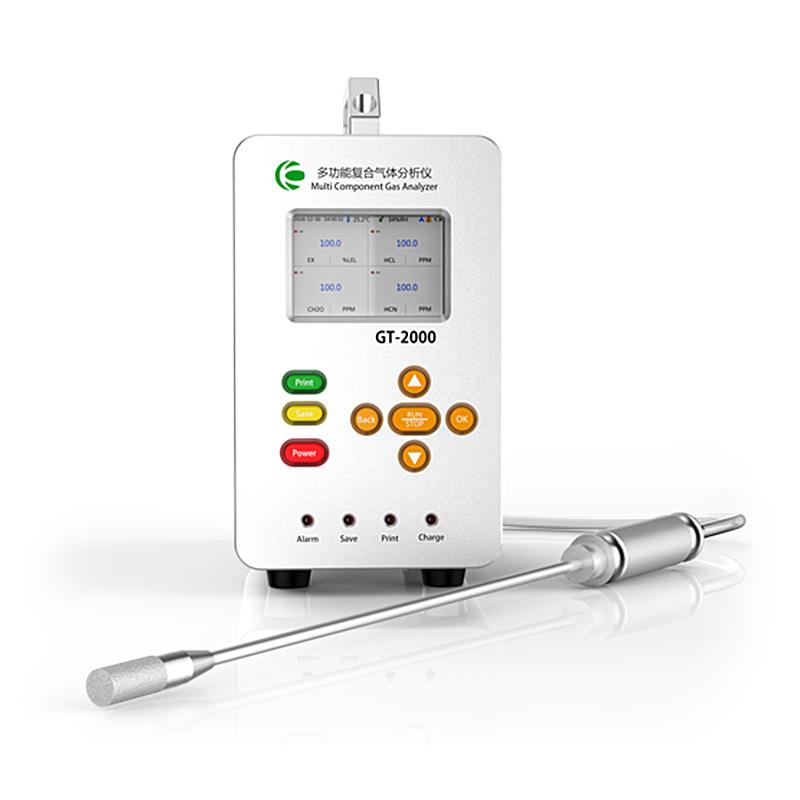

KORNO  GT-2000-VOC Gas Analyzer Picture

Detailed Figure 1 of the Korno GT-2000 Gas Analyzer

12 different gases can be detected

Any combination of different sensors

Support PM2.5 dust particle sensor, temperature and humidity sensor, etc

It has the function of data storage, which can store 120,000 sets of data

PPM, %VOL, mg/m3, mg/L four concentration units can be switched freely

Corno GT-2000 Gas Analyzer back cover



Mobile printing function is realized

Built-in micro printer or external Bluetooth printer for mobile printing data (optional)

Full software automatic calibration, up to 6 levels of sensor target point calibration function, to ensure the accuracy and linearity of measurement, and with data recovery function

Dustproof, explosion-proof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference, passed the national standard test and CMC measuring instrument production license certification


Detection of gases

Any combination of carbon monoxide, oxygen, ammonia, sulfur dioxide, hydrogen sulfide, carbon dioxide, methane, nitrogen oxides, benzene, nitrogen, VOC, TVOC, chlorine, nitric oxide and other gases
