TOKI TOKI TVE-25L cone-plate viscometer viscosity up to 30380mP.s

SE
The TSE-25L cone-plate viscometer has three ranges of M, 2.5M, and 5M, which can test the viscosity of 1ml samples. The swirl/spin Rotation speed of the TSE-25L cone-plate viscometer is 0.01~ 100.0rpm, with RS232 Interface.
Model：
Contact
Details SPEC VIDEO CAT

TOKI TVE-25L Con-plate viscometerSPEC

TOKI TVE-25L Con-plate viscometerDetails

TOKI TVE-25L Con-plate viscometerPacking list

SKU
NB023338
Standard rotor
1°34′×R24
Rotor speed
0.01~100rpm
step
1001 steps, step 0.1rpm
Measurement mode
Manual, automatic stop time, automatic stop viscosity
Measurement memory
5 ways per mode
Viscosity display
%，mPa.s，Pa.s，kPa.s，cP/P
Measurement Accuracy
±1%
Repeatability
±0.2%
Measuring temperature
10~60℃
Data output
RS232C，USB
input signal
Measurement start signal (no Voltage contact)
Output signal
Measurement signal, beep signal, measurement end signal (when automatically stopped) Output signal is open collector electrode
Environment Operating temperature
0~40℃
Environment Relative Humidity
Relative Humidity less than 90% (no condensation)
Power Supply
AC100- 230V；50-60Hz
Power
Less than 20W
Rotor material
stainless steel
host Volume
105×220×320mm（W×D×H）
Base size
290*300*430mm
Weight
About 9Kg (including bracket)
Range file
M、2.5M、5M
Full scale torque
67.37μN·m、168.4μN·m、336.9μN·m
Viscosity range
0.608~6076mP.s、1.52~15190mP.s、3.04~30380mP.s
TVE-25L
Con-plate viscometer

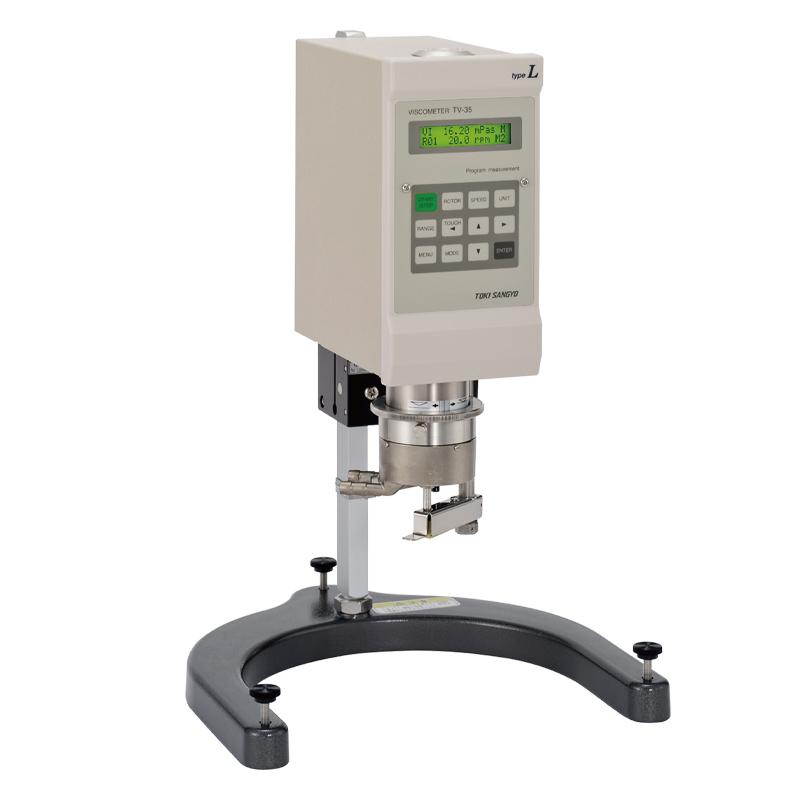

TOKI TOKI TVE-25L cone-plate viscometer viscosity up to 30380mP.s Picture

Introduction

The combination of "torque balance servo method" and "pivot-free structure" achieves good linearity and reproducibility of data. Automatic range adjustment derived from dynamic range makes the program measurement function more convenient to use.

The "pivot-free structure" that does not use jewel bearings ensures reliable linearity and reproducibility of viscosity values ​​over a wide measurement range.

The dynamic range is the biggest charm of TV-25/35 viscometer.

With one viscometer, the viscosity range can be expanded up to 8 times without having to replace the spindle, and the viscosity can be measured continuously.

Features

◆Torque balance servo method

Using torque balance and servo method, zero position measurement method is adopted. Even within a wide measuring range, it is not affected.

◆Multiple measurement ranges

The wide dynamic range enables multi-weight range measurement. The measurement range can be expanded up to 8 times, and continuous measurement is possible without replacing the rotor.

◆No pivot structure

A flexible hinge system replaces pivots and gems, resulting in a pivot-free structure.

◆Rotation speed

Increasing at a speed of 0.1 rpm, any rotation speed can be set between 0.1 and 100.0 rpm.

◆Automatic zero point correction and deviation correction

This automatic feature makes instrument calibration easy.

◆Measurement mode memory

Manual mode, automatic stop (time, viscosity) mode, each mode has 5 memory modes.

◆Auto stop

The measurement time and viscosity value can be automatically terminated.

◆Remote operation

The viscometer can be remotely operated to start and end measurement using external input signals. In addition, the output signal (collector open circuit) can be used to confirm the status of the viscometer by lighting and beeping.

◆Upper and lower limit alarms

When the upper and lower limit settings are exceeded, a buzzer will sound.

◆Preheating

The measurement can be started automatically after preheating according to the preset preheating time. The time until the measurement starts is displayed as a countdown.

◆Data exchange

It is interchangeable with conventional viscometer data and complies with JIS and ISO standards.

plan

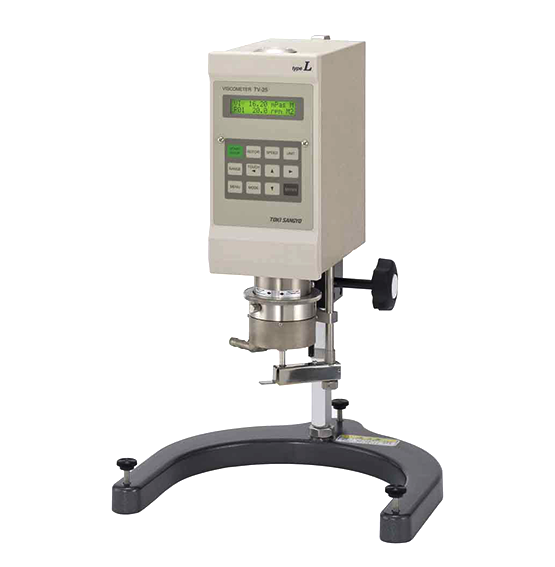

Japan Toki TVE-25L cone and plate viscometer display diagram

FAQ
QCan this be used to detect the thixotropic performance of inks?
A Yes!
QWhat is the minimum sample size that this Viscometer can measure?
A TVE series can measure a minimum of 1ml.
QCan this cone-plate viscometer be applied to GB/T9751?
A OK
