Brand：SUNDOO
Model：SDS-10

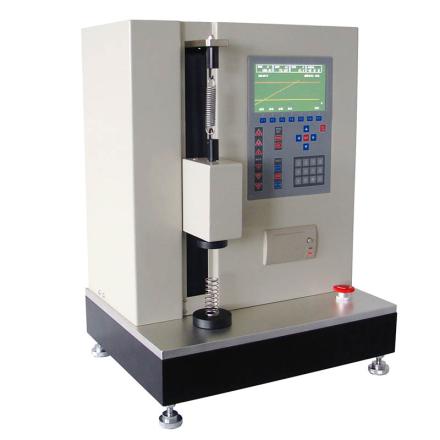

Name：Automatic spring tension and compression testing machine
Specifications
| Range | 10N |
| Force resolution | 0.001N |
| Measurement range | 1%~100%F.S |
| Force Precision | ±1%, ±0.5% |
| Test speed range | 0.5~500mm/min |
| Speed Accuracy | +/- 2% (Measurement range < 10% FS ), +/- 1% (Measurement range > 10% FS) |
| Displacement resolution | 0.001mm |
| Displacement scale stroke | 170mm |
| Maximum free length of spring | 170mm |
| platen diameter | Ф50mm |
| Force unit | N、kgf、lbf、ozf |
| Power supply Voltage | AC 220V±10% 50Hz |
| Operating temperature | 20±10℃ |
| Operating Environment | No source and corrosion medium around |
| Transport temperature | -27℃~+70℃ |
| Dimension | 460*370*615mm |
| Weight | 79kg |
Packing list
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/23410/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
