Brand：SUNDOO
Model：SDS-1000

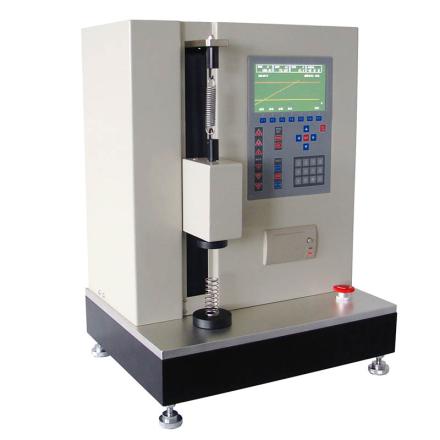

Name：Automatic spring tension and compression testing machine
Specifications
| Range | 1000N |
| Force resolution | 0.1N |
| Measurement range | 1%~100%F.S |
| Force Precision | ±1%, ±0.5% |
| Test speed range | 0.5~500mm/min |
| Speed Accuracy | +/- 2% (Measurement range < 10% FS ), +/- 1% (Measurement range > 10% FS) |
| Displacement resolution | 0.001mm |
| Displacement scale stroke | 170mm |
| Maximum free length of spring | 170mm |
| platen diameter | Ф50mm |
| Force unit | N、kgf、lbf、ozf |
| Power supply Voltage | AC 220V±10% 50Hz |
| Operating temperature | 20±10℃ |
| Operating Environment | No source and corrosion medium around |
| Transport temperature | -27℃~+70℃ |
| Dimension | 460*370*615mm |
| Weight | 79kg |
