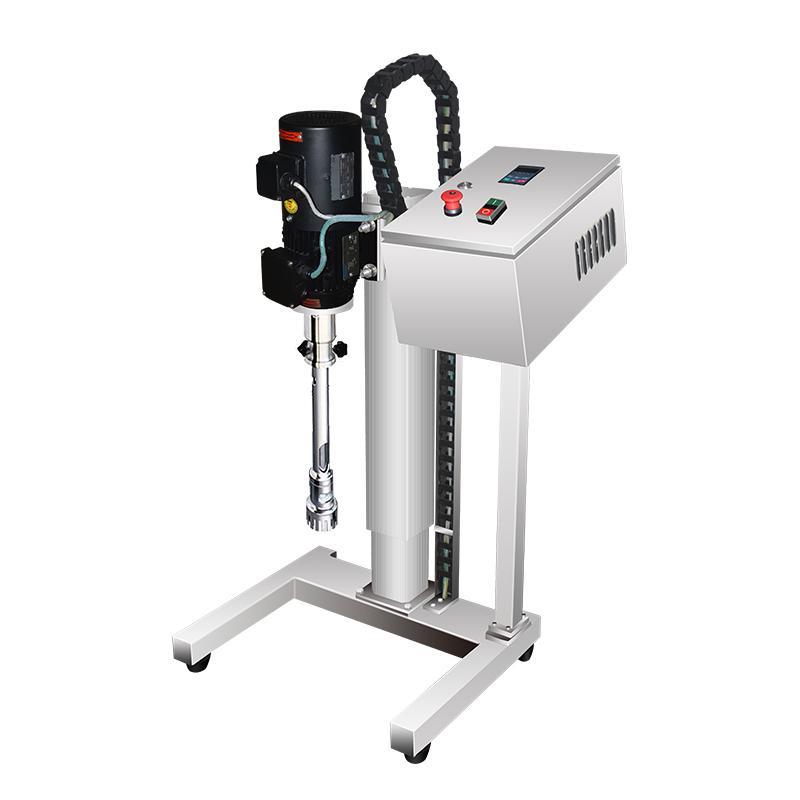

Shanghai HUXI HR-60Z Pilot High Shear Dispersion Mulser Manual Lift/220V
HR-60Z (manual lift)
HuXi HR-60Z (manual lift) Pilot High Shear Dispersion MulserSPEC
HuXi HR-60Z (manual lift) Pilot High Shear Dispersion MulserDetails
HuXi HR-60Z (manual lift) Pilot High Shear Dispersion MulserPacking list
- SKU
- NB023414
- Power
- 750W
- Power supply voltage
- 220V 50HZ
- Processing capacity
- 5~30L
- Maximum processing viscosity
- 5000cp
- Speed range
- 300~6000rpm
- Speed regulation mode
- Frequency conversion speed regulation
- Rotation speed display
- digital display
- Work head material
- SS316L
- Bearing material
- PTFE
- Work head specification
- 60F
- Permissible Ambient Temperature
- 5~40℃
- Allowable relative humidity
- 80%
- Protection Rating
- IP54
- Overload protection
- Yes.
- Process type
- batch processing
- Lifting method
- Electric lift
- Work frame, base material
- SS304, CS spray
- Lift Travel
- 350mm
- Dimension
- 500*400*915mm
- weight
- ~35Kg
- Encasement method
- wooden box
Applications
Shanghai HUXI pilot high shear dispersion emulsifier is designed for pilot test, simulated production and small batch production in factories. The standard working head adopts a claw structure, and the suitable stator and rotor can be freely replaced according to different materials and process requirements
Features
● Laboratory pilot equipment, processing capacity 30L (H2O)
● Only need to replace the working head, the equipment can achieve strong stirring, dispersion, homogenization, emulsification, interception mixing, solid-liquid dispersion mixing, grinding and other functions
● The equipment is equipped with a high-speed inverter motor, which is started when the inverter is turned on to protect the equipment, and the speed can be adjusted and displayed
● Continuous working time up to 8 hours
● The dispersion head adopts the quick connection method, which is easy to disassemble and replace
● Modular design of the equipment, which can be flexibly combined
