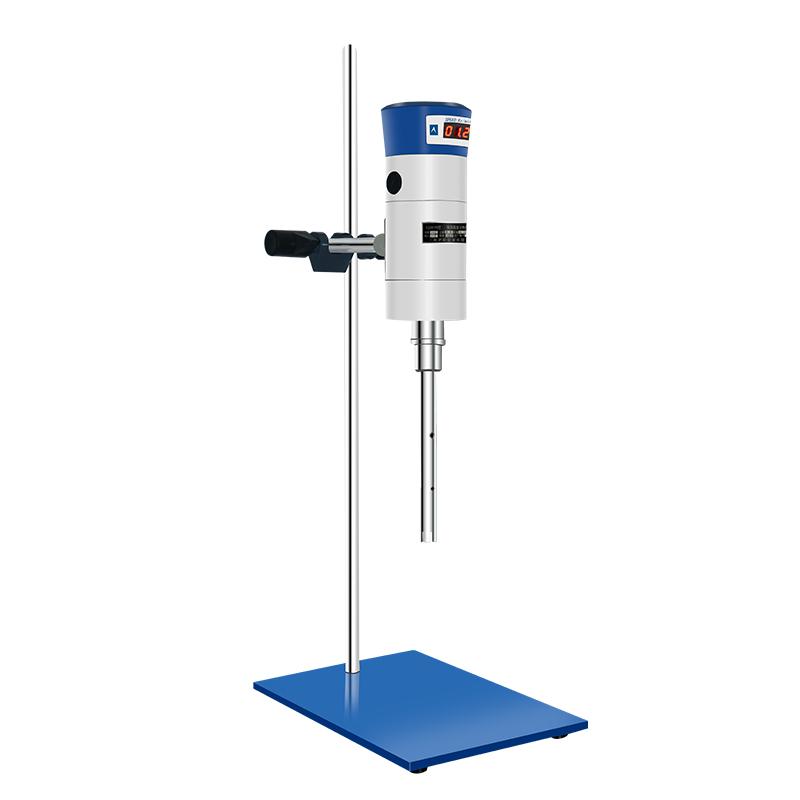

Huxi FJ200-SH Digital Display Constant Speed High Speed Dispersion Homogenizer Φ12/18mm
SE
FJ200-SH
HuXi FJ200-SH High Speed Dispersion HomogenizerSPEC
HuXi FJ200-SH High Speed Dispersion HomogenizerDetails
HuXi FJ200-SH High Speed Dispersion HomogenizerPacking list
- SKU
- NB023417
- Speed range
- 300~23000r/min
- throughput
- 30~1500ml
- Input power
- 280W
- output power
- 200W
- Dimensions
- 250*350*600mm
- Power
- AC 220 V 50 Hz
- rated torque
- 68N.cm
- Work head specification
- F12mm / F18mm
- Duty Cycle
- intermittent
The laboratory high-speed dispersion homogenizer adopts a compact tandem miniature high-speedMotor driven, suitable for laboratory to crush experimental materials in liquid mediumStep dispersion homogenization. The machine is driven by high-density die-cast aluminum alloy as the main engine of the body.It is composed of a good stainless steel refined dispersed and homogeneous working head and a speed regulating base. haveThe main engine has high driving speed, high output power, convenient loading and unloading of the working head, and experimental operationsimplicity and other features.
Basic construction
This machine is composed of a drive motor, a homogeneous working head and a speed regulating base.
● The drive motor adopts a series excited micro motor with high output power and compact structure, which is safe and reliable in design.
● The parts in contact with the material of the working head are all made of good stainless steel, with good corrosion resistance.
● The working head is connected to the drive motor by coupling, which is easy and flexible to disassemble and assemble.
● The speed regulating base adopts stepless speed regulator, which is convenient for speed regulation and stable operation.

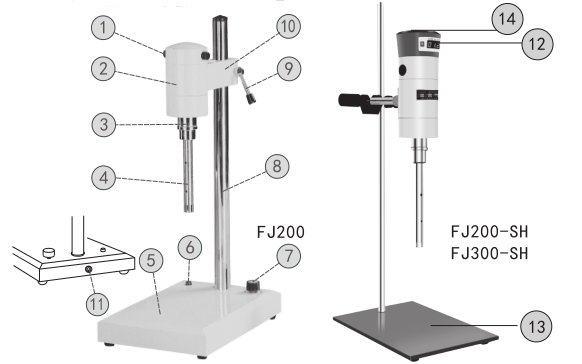

1.Brush holder 2.Dispersion homogenization host 3.Working head connector 4.Standard working head 5.Speed regulating base6.Indicator light 7.Speed control knob switch 8.Column 9.Fixed handle 10.Chassis 11.Positioning screw12. Digital display 13. Flat base 14. Switch
Serial models
| Product model | FJ200 | FJ200-SH (Digital Display) | FJ300-SH (Digital Display) |
| Use a power source | AC200V50HZ | AC200V50HZ | AC200V50HZ |
| Input power W | 280W | 280W | 510W |
| Output power W | 200W | 200W | 300W |
| Methods of work | Intermittent | Intermittent | Intermittent |
| Speed range r/min | 300-23000 | 300-23000 | 300-18000 |
| The head is configured in mm | φ12 φ18 | φ12 φ18 | φ28 φ36 |
| Throughput ml | 2-800 | 2-800 | 500-7000 |
| Dimensions mm | 250x350x600 | 250x350x600 | 250x350x600 |
| Rated torque N.cm | 83 | 68 | 68 |

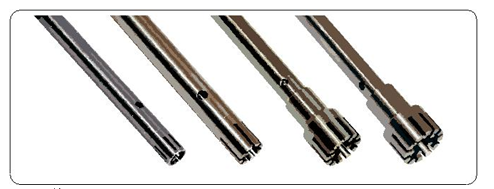

Work head parameters
| Specifications of the working head | 12G | 18G | 28G | 36G |
| Throughput ml(H2O) | 30-800 | 50-1500 | 100-8000 | 150-13000 |
| Suitable for viscosity mpa.s | 1000 | 2000 | 6000 | 7000 |
| The height of the intrusion liquid is mm | 35/110 | 45/150 | 60/155 | 60/160 |
| Stator diameter mm | 12 | 18 | 28 | 36 |
| Head length mm | 170 | 210 | 235 | 270 |
| Operating temperature °C | 120 | 120 | 120 | 120 |
| Head Material | SS304 | SS304 | SS304 | SS304 |
| Bearing material | PTEE | PTEE | PTEE | PTEE |
