Huxi FJ300-SH Digital Display Constant Speed High Speed Dispersion Homogenizer Φ28/36mm

SE
Huxi FJ300-SH digital display constant speed high-speed dispersion Homogenizer speed 300~18000 rpm, processing capacity 100-13000ml, rated torque 68N.cm, working head φ28mm, φ36mm (carbon brush motor)
$596.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

HuXi FJ300-SH High Speed Dispersion HomogenizerSPEC

HuXi FJ300-SH High Speed Dispersion HomogenizerDetails

HuXi FJ300-SH High Speed Dispersion HomogenizerPacking list

SKU
NB023418
Speed range
300~18000r/min
throughput
100~13000ml
Input power
510W
output power
300W
Dimensions
250*350*600mm
Power
AC 220 V 50 Hz
rated torque
68N.cm
Work head specification
F28mm / F36mm
Duty Cycle
intermittent
FJ300-SH
High Speed Dispersion Homogenizer

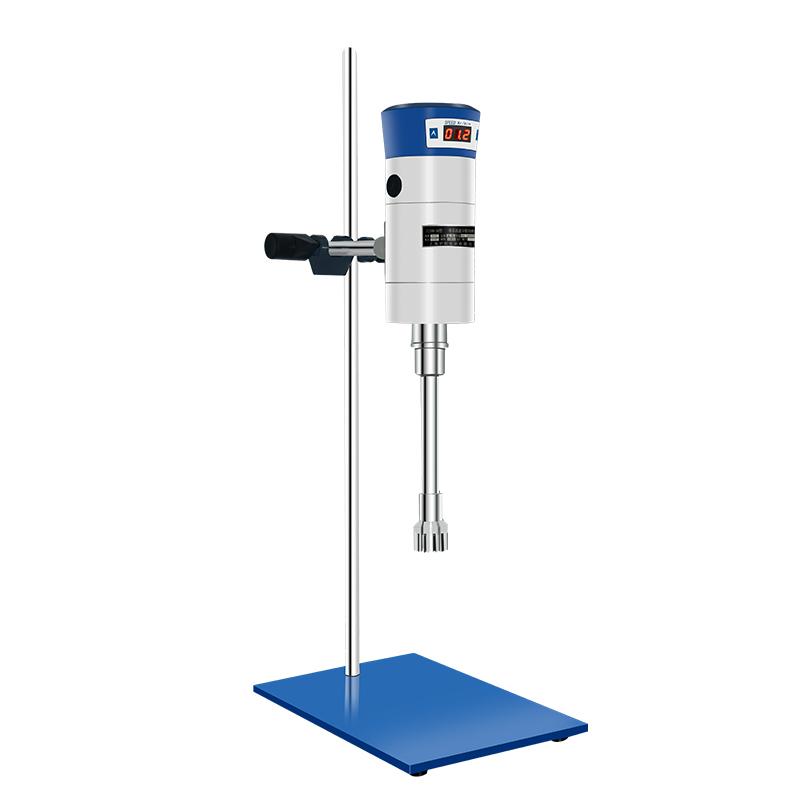

Huxi FJ300-SH Digital Display Constant Speed High Speed Dispersion Homogenizer Φ28/36mm Picture

The laboratory high-speed dispersion homogenizer adopts a compact tandem miniature high-speedMotor driven, suitable for laboratory to crush experimental materials in liquid mediumStep dispersion homogenization. The machine is driven by high-density die-cast aluminum alloy as the main engine of the body.It is composed of a good stainless steel refined dispersed and homogeneous working head and a speed regulating base. haveThe main engine has high driving speed, high output power, convenient loading and unloading of the working head, and experimental operationsimplicity and other features.

Basic construction

This machine is composed of a drive motor, a homogeneous working head and a speed regulating base.

● The drive motor adopts a series excited micro motor with high output power and compact structure, which is safe and reliable in design.

● The parts in contact with the material of the working head are all made of good stainless steel, with good corrosion resistance.

● The working head is connected to the drive motor by coupling, which is easy and flexible to disassemble and assemble.

● The speed regulating base adopts stepless speed regulator, which is convenient for speed regulation and stable operation.

Structure

1.Brush holder 2.Dispersion homogenization host 3.Working head connector 4.Standard working head 5.Speed regulating base6.Indicator light 7.Speed control knob switch 8.Column 9.Fixed handle 10.Chassis 11.Positioning screw12. Digital display 13. Flat base 14. Switch

Serial models

Product modelFJ200FJ200-SH (Digital Display)FJ300-SH (Digital Display)
Use a power sourceAC200V50HZAC200V50HZAC200V50HZ
Input power W280W280W510W
Output power W200W200W300W
Methods of workIntermittentIntermittentIntermittent
Speed range r/min300-23000300-23000300-18000
The head is configured in mmφ12  φ18φ12  φ18φ28  φ36
Throughput ml2-8002-800500-7000
Dimensions mm250x350x600250x350x600250x350x600
Rated torque N.cm836868

Work head parameters

Specifications of the working head12G18G28G36G
Throughput ml(H2O)30-80050-1500100-8000150-13000
Suitable for viscosity mpa.s1000200060007000
The height of the intrusion liquid is mm35/11045/15060/15560/160
Stator diameter mm12182836
Head length mm170210235270
Operating temperature °C120120120120
Head MaterialSS304SS304SS304SS304
Bearing materialPTEEPTEEPTEEPTEE


FAQ
QMainly deal with the mixing of liquid powders with high viscosity, and some experiments related to toothpaste. Is this FJ300-SH okay?
A Sure
QJust want to disperse the function, not necessarily homogeneous, Processing capacity is about 1L, do liquid-liquid dispersion, Preparative colloid viscosity is about 1- 30,000
A Power is the largest. It doesn't need that much Power to deal with 1L. As long as the function is decentralized, it is better to choose that kind of dispersion opportunity.
QExcuse me, this one is continuously variable? FJ300-SH
A Yes!
QWhat is the difference between this JRJ series and the FJ series?
A JRJ for high viscosity, shear emulsification, FJ for general viscosity, shear emulsification
QWhat is the maximum processing viscosity of this HUXI FJ300-SH digital display constant speed high speed dispersion Homogenizer?
A This one has no viscosity data.
QWhat is the difference between the models FJ300-SH and JRJ300-SH?
A Hello, JRJ emulsification will be better, without any Stir function; while FJ's mixing effect is better.
QCan HUXI FJ300-SH High Speed Disperse Homogenizer meet the HG/T20569 standard?
A Applicable, you can consult the customer service of the mall for details about the HG/T20569 standard.
