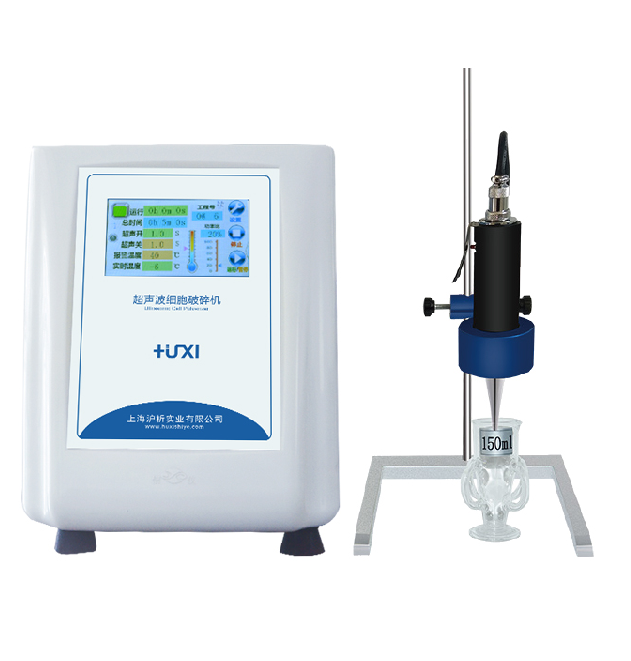

Huxi UP-250 Portable ultrasonic crushing instrument
SE
UP-250
HuXi UP-250 Portable ultrasonic crushing instrumentSPEC
HuXi UP-250 Portable ultrasonic crushing instrumentDetails
HuXi UP-250 Portable ultrasonic crushing instrumentPacking list
- SKU
- NB023452
- power
- 2.5-250W continuously adjustable
- Crushing Capacity
- 0.1~150ml
- Display
- True color capacitive touch screen display
- Single ultrasound time
- 0.1-99.9S
- Single gap time
- 0.1-99.9S
- Total time (ultrasound + gap)
- 1-99H59M59S
- Frequency range
- 20-30KHz
- Temperature range
- 0-100 ℃ (optional low temperature constant temperature)
- Alarm function
- Time, overload, no load, over temperature
- Standard horn
- F3F5mm
- Optional horn
- F2 、 3 、 5 、 6mm
- duty cycle
- 0.1-99.9%
- Data storage
- 20 groups
- Power
- 220V/110V/ 50Hz/60HZ
- Packaging Dimensions
- 410*225*290mm
- Net Weight of ultrasonic host
- 12kg
- Ultrasonic host Gross Weight
- 15kg
- Packaging Dimensions
- 470*305*430mm
- Control method
- MCU + TFT touch
- Optional function
- Computer communication + data printing
- Voice alarm and prompt function
- Yes.
Applications
● Portable ultrasonic crusher is a multi-functional, multi-purpose instrument that uses ultrasonic waves to produce cavitation effect in liquids. Used for the fragmentation of a variety of animal and plant cells and virus cells, and can be used for emulsification, separation, extraction, defoaming, degassing, cleaning and accelerating chemical reactions. It is used in teaching, scientific research and production in the fields of biochemistry, microbiology, chemistry, surface chemistry, physics, zoology, agronomy, etc.
● The instrument adopts liquid crystal display, with two Operating Modes: automatic and manual (foot pedal), ultrasonic time, power can be set arbitrarily, sample temperature detection display, frequency automatic tracking and other functions. Ultrasonic cell disruptor for small volume sample processing.
Features
● Full function, beautiful appearance, reliable performance, using new single-chip microcomputer technology + 4.3-inch TFT capacitive touch screen control (7-inch can be optional), optional computer communication or data printing and other functions
● High degree of intelligence, centralized control of central microcomputer, ultrasonic time, power can be set from 1% to 100%.
● Sample temperature detection display, frequency microcomputer automatic tracking, fault automatic alarm
● Equipped with Alcoa 7075 transducer + a set of high-purity titanium alloy luffing rod, the industrial luffing rod can continuously achieve ultrasonic for more than one hour (it can only be achieved with high-purity titanium alloy)
● With overload protection function and the luffing rod is not immersed in the liquid, it will automatically protect the luffing rod from damage
● It can realize the voice alarm function caused by fault, over-temperature or operation error, etc., which is more humanized
