Huxi HB-20B corrosion-resistant Diaphragm Pump, two-stage pump

HB-20B

Corrosion resistant Diaphragm Pump

Two-stage pump, 6-8mbar, 20L/min, interface 10mm, pump sheet material: PTFE, composite diaphragm material: HNBR + PTFE (non-standard products can be customized), < 55db, with vacuum regulating valve, with solid discharge valve, 1450rpm

Applications

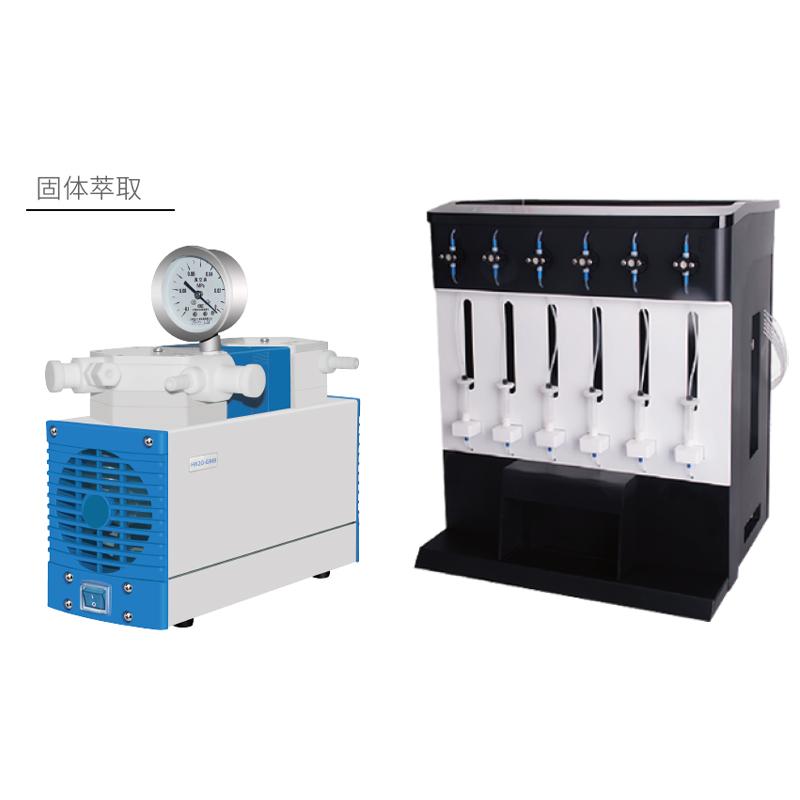

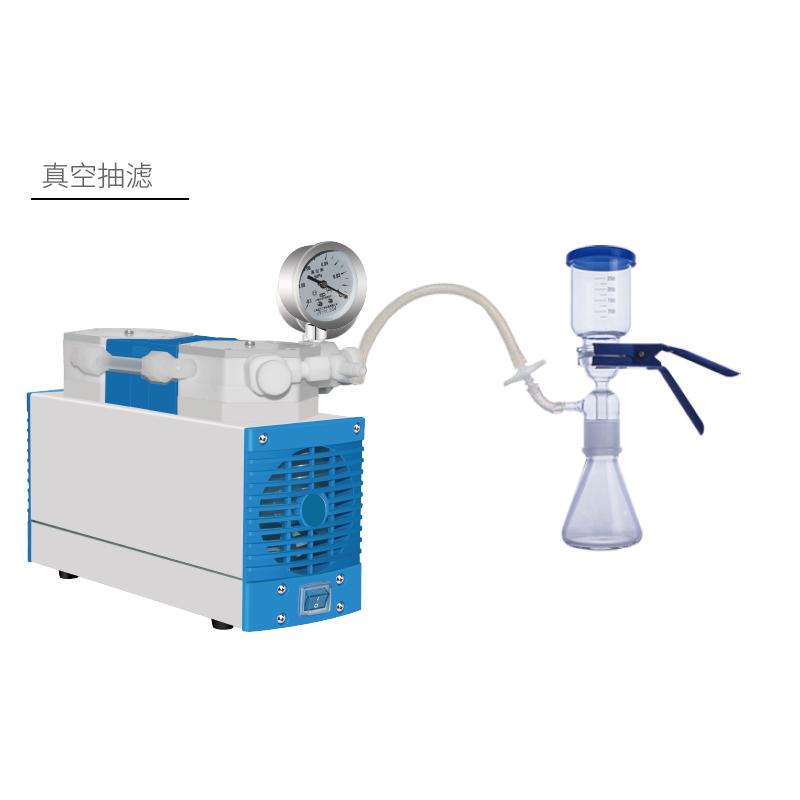

● Corrosion-resistant vacuum Diaphragm Pump is a two-stage pump with gas as medium, all parts in contact with gas are polytetrafluoroethylene (PTFE) material, with high corrosion resistance and wide range of application, which can completely replace the water circulation pump, and is suitable for the treatment of corrosive gases in chemical, petrochemical and other industries, such as oil filtration, vacuum distillation, rotary evaporation, vacuum concentration, centrifugal concentration, solid extraction, etc.

Features

● Resistant to chemical corrosion: The corrosion-resistant Vacuum Pump uses a special diaphragm (PTFE coating on the surface of the diaphragm) and the pump head design, including all joints and pipelines, to ensure that the parts in contact with the gas are imported PTFE At the same time, the electrical switch and shell are also treated with anti-corrosion, especially for the transmission mechanism and circuit part of the use of corrosion-resistant materials to form a closed space, effectively isolated from the external environment, so that the Vacuum Pump can not only resist corrosive media, but also be well applicable to the corrosive environment, which completely solves the problem of chemical corrosion resistance of the Vacuum Pump

● No pollution, maintenance-free: the diaphragm Vacuum Pump can realize the complete recovery of solvents, eliminate the pollution of toxic and harmful organic solvents to the environment and the health hazards of the operator and nearby personnel, even if the mixed solvent can be highly recycled; the Diaphragm Pump is a water-free and oil-free dry pump, so that the laboratory becomes clean and quiet, the user does not need to regularly clean, change the tube, change the water and other maintenance work, the diaphragm Vacuum Pump is 100% maintenance-free;

● Low noise and low vibration: The corrosion-resistant Vacuum Pump adopts a direct drive power transmission of the motor, without intermediate transmission parts, coupled with the characteristics of low stroke and low noise of the diaphragm, so the noise of the product can be kept below 70dB;

● Overheating protection: Each product is equipped with a temperature protection switch, which will automatically stop when the internal temperature of the machine body is too high, and then start by itself after the temperature is cooled to ensure the stability and safety of the system;

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
