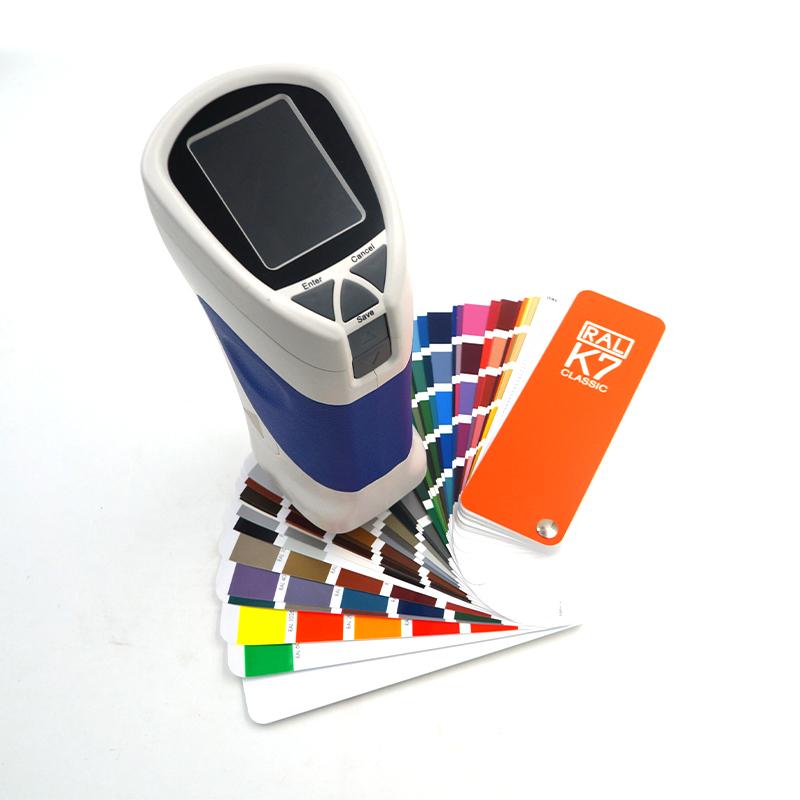

CHNSPEC CS-210 Colorimeter with camera, measuring belt texture, Color uneven samples

/D (8 ° illumination/diffuse light), including camera viewing function; can achieve yellowness, whiteness test; USB transmission data, PC software control color data; optional micro printer.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

CHNSpec CS-210 Color difference meterSPEC

CHNSpec CS-210 Color difference meterDetails

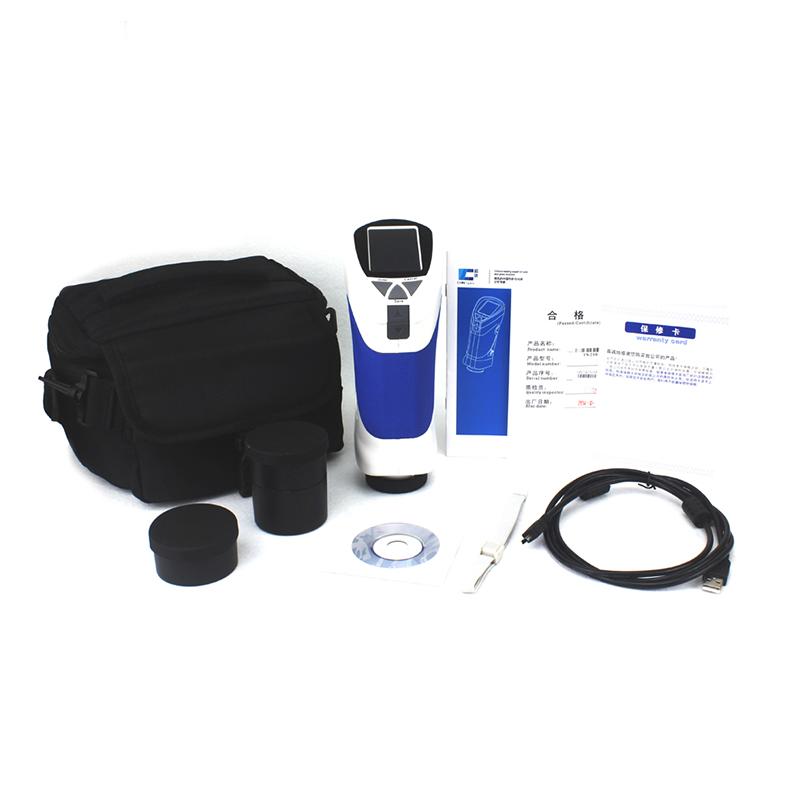

CHNSpec CS-210 Color difference meterPacking list

SKU
NB000235
Lighting method
8°/d
Sensors
Photodiode display
Measurement range
L*: 1~100
Measurement light source
CIE D65
Measurement time
About 0.5s
Measurement caliber
Φ8mm
Repeatability
Standard deviation E * ab0.08
Operating language
Chinese, English
Interface
USB 2.0, printer
Viewing Angle
CIE 10°
Lighting source
LED Light source
Color difference formula
Δ( L*a*b*) ,Δ( L*C* h)
data storage
100 groups of standard samples, 100 groups of test groups under each group of standard samples
Power supply Voltage
Unmountable lithium battery pack, dedicated DC5V adapter
display mode
Chromatic value: L * a * b, L * C * h, delta E * ab, XYZ, relative RGB value, colour fastness, discoloration fastness; color difference value: delta (L * a * b), delta (L * C * h); whiteness value: Hunter whiteness, Gantz whiteness; yellowness value: YI
Operating environment
5 ℃~ 40 ℃, Relative Humidity below 80% (35 ℃), no condensation
Storage environment
0 ℃~ 45 ℃, Relative Humidity below 80% (35 ℃), no condensation
Dimensions
77*86*210mm
Weight
550g
Optional Accessories
micro printer
Other functions
camera framing
CS-210
Color difference meter
/D (8 ° illumination/diffuse light), including camera viewing function; can achieve yellowness, whiteness test; USB transmission data, PC software control color data; optional micro printer.
CHNSPEC CS-210 Colorimeter with camera, measuring belt texture, Color uneven samples Picture

360-degree display of CS-210 Colorimeter

Introduction

The CS-210 Colorimeter is an 8/d illumination measurement condition structurePrecisionColorimeter, the display accuracy is 0.01, and the standard deviation △ of the repeating line is repeated E*ab*, within 0.08, supports yellow and whiteness measurement.The CS-210 Colorimeter is designed to be wrapped in leather material in the external grip part, which is comfortable to hold and ergonomic, and the high-precision LCD screen can clearly view the measurement data in real time, which is widely used in measuring color difference.

Color spectrum CS-210 Colorimeter is a professional color analyzer, cost-effective, with the function of camera framing, suitable for internal and external color analysis and evaluation and data control, large-capacity data storage, support multi-point test average, professional design standards, with powerful functional configuration.

Operating Principle

Color spectrum CS-210 Colorimeter is widely used in the field of color management in plastics, printing, paint and ink, textile and garment industries, according to the Lab, Lch principle of CIE color space, the measurement shows that the sample is not measured The color difference △E and △Lab values of the sample.

1. CS-210 Colorimeter adopts 8/d (8° illumination/diffuse light reception), including camera framing function.

2. Place the test object at the test port untilColorimeterAfter the light source is irradiated,ColorimeterThe light signal is collected by the sensor, and the chromaticity value of the XYZ and LAB of the measured object is calculated by the MCU.

CS-210 chroma spaceCS-210 color space coordinates

Application

CS-210 Colorimeter Application 1CS-210 Colorimeter Application 2CS-210 Colorimeter Application 3

                                              Painting field, plastic field, fiber dyeing

CS-210 Colorimeter Application 4CS-210 Colorimeter Application 5CS-210 Colorimeter Application 6

                                                  Printing architectural ceramics

CS-210 Colorimeter Application 7CS-210 Colorimeter Application 8CS-210 Colorimeter Application 9

                                                Agroforestry Food Academic research

Actual picture of the product

Colorimeter CS-210 Colorimeter

Color spectrum CS-210 Colorimeter measures aperture

Color spectrum CS-210 Colorimeter white calibration box

Color spectrum CS-210 Colorimeter black calibration box

Detail of the CS-210 Colorimeter

Color spectrum CS-210 Colorimeter manual and accessories

What are the advantages of the CS-210 Colorimeter?

1、Professional design standards, powerful functional configuration

● Ergonomic design

● Large-capacity data storage

● Multi-mode color value display

● Camera framing

● PC software, computer data management

● USB, Bluetooth data connection and output

● Provide accurate test time settings

● CS-210 Colorimeter can manually set the L*a*b value of the standard

● It is suitable for internal and external color evaluation and data control

Features of the CS-210 Colorimeter

2. The international similar color analyzer products are cost-effective,Obtained national metrology certification

● Switch between Chinese and English

● Ultra-stable performance

● The display accuracy is 0.01

● Repeatability △E standard deviation value is 0.08

● CS-210 Colorimeter can realize yellow and white test

● It can be averaged by multi-point testing

● The black and white calibration function can improve the accuracy of each test

●Multi-point tests are averaged

3. Compared with imported Colorimeter, color spectrum has a wider measurement range, shorter measurement time, large storage capacity and smaller standard deviation

Comparison of CS-210 Colorimeter and imported brands

FAQ
QDoes the CHNSPEC CS-210 have a test dish for measuring powder particles?
A Optional test box for powder
QCan this color difference meter measure powder particles?
A Yes, it needs to be matched with a powder test box.
QWe have a lot of products to be able to detect the color difference of various sprays, that is, the Color color difference of various sprays
A This one is ok.
QHow many measurement modes does the CS-210 color reader have? Does it include SCE mode?
QIs this CS-210 color reader suitable for testing plastic printing?
A Hello, it can be used for printing and color measurement.
QDo you have the color reader required by the GB/T9338 standard?
A This CS-210 color reader will do.
QDoes the CS-210 color reader have a matching micro printer?
A Hello, no, the micro printer needs to be purchased separately.
QCS-210 color difference tester how to calibrate?
A Hello, after hitting the switch to "ON", the CS-210 color reader will automatically enter the calibrate page. Under this page, you need to calibrate the instrument in black and white first. Take off the dust cover on the bottom of the instrument, swirl/spin the lid above the black chamber, and put the bottom of the instrument into the black chamber flat. Select "Black calibrate" through "Up" and "Down", press the "Enter" button, short beep "drip" and complete the black calibrate. The whiteboard swirl/spin is fastened with the instrument, and the instrument is placed smoothly. Select "white calibrate" through "Up" and "Down", and press the "Enter" key to complete the white calibrate after a short "beep" sound. After the calibrate is completed, press the "Cancel" key to exit the calibrate page and enter the main page of the program.
QCan this CS-210 color reader test the color difference of stockings?
A Hello, yes, it is recommended that you read "color reader for the detection of color difference in stockings".
QCan this precision color analyzer be booked now? It shows that it will be on the shelves soon.
A CS-210 color reader will be on the shelves in the near future, and the current status cannot be booked. Please pay attention to the new information in the mall.
