Qixin DZF-6126A Vacuum Oven 6pcs Volume 125L

Qixin DZF-6126A Vertical Vacuum Oven Temperature range RT + 10~250 ℃, Temperature Fluctuation +/- 1 ℃, Temperature resolution 0.1 ℃, Heating mode Shelf/four weeks, Interior size 500 * 500 * 500mm, Input Power 2000W.
Model:
Certificate

Keelrein DZF-6126A Vacuum OvenSPEC

Keelrein DZF-6126A Vacuum OvenDetails

Keelrein DZF-6126A Vacuum OvenPacking list

SKU
NB023520
Temperature range
RT+10~250℃
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Heating mode
Shelf/around
Interior size
500*500*500mm
Chamber material
Stainless steel (1Gr18Ni9Ti)
Shelf (std.)
6pcs
vacuum
<133Pa
Power supply Voltage
220V 50Hz
Input Power
2000W
Dimensions
665*670*1400mm
DZF-6126A
Vacuum Oven
Qixin DZF-6126A Vacuum Oven 6pcs Volume 125L Picture

Overview

The vacuum Drying Oven is designed for drying heat-sensitive, easily decomposing and oxidizing substances, and can be filled with inert gas, especially for some items with complex composition. It is widely used in the electronics and chemical industries.

Features

1. Digital microcomputer temperature controller with timing function, accurate and reliable temperature control.

2. Cuboid studio, so that the effective volume utilization rate is large.

3. Tempered, bulletproof double-glazed door to observe the objects in the studio, at a glance.

4. The door closure elasticity can be adjusted, and the silicone rubber door sealing ring is integrally formed to ensure a high vacuum degree in the box.

5. The studio is made of stainless steel plate or brushed plate to ensure that the product is durable.

6. With "D" series, it is an intelligent ten-segment programmable LCD controller.

7. With "LC" series, the vacuum degree can be displayed and controlled

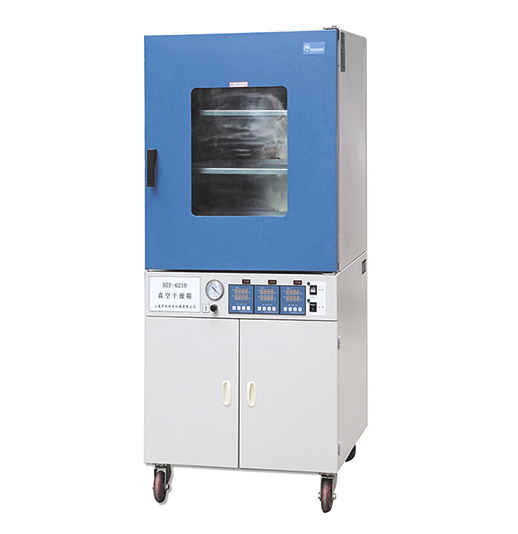

Qixin DZF-6126A vertical vacuum Drying Oven display diagram
