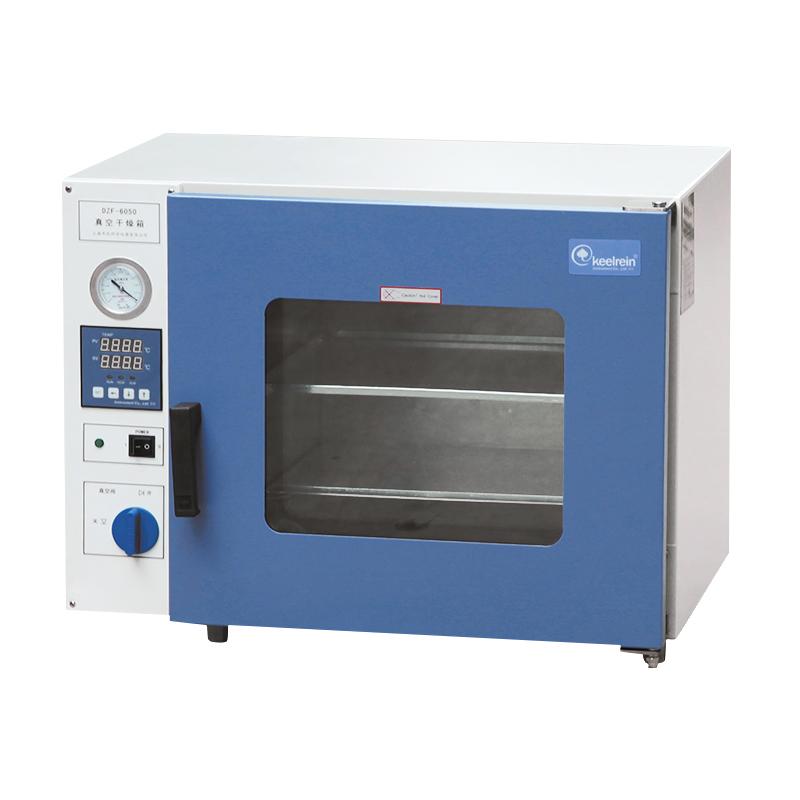

KEELREIN DZF-6094 Desktop Vacuum Oven Temperature range 10~250 ℃
DZF-6094
Keelrein DZF-6094 Vacuum OvenSPEC
Keelrein DZF-6094 Vacuum OvenDetails
Keelrein DZF-6094 Vacuum OvenPacking list
- SKU
- NB023534
- Temperature range
- RT+10~250℃
- Temperature Fluctuation
- ±1℃
- Temperature Resolution
- 0.1℃
- Interior size
- 450*450*450mm
- Chamber material
- Stainless steel (1Gr18Ni9Ti)
- Shelf (std.)
- 4pcs
- Timer
- 1~9999min
- vacuum
- <133Pa
- Power supply Voltage
- 220V 50Hz
- Input Power
- 1400W
- Environmental temperature
- RT+5~40℃
- Environmental humidity
- 50%RH
- Dimensions
- 765*660*650mm
- Vacuum pump
- without
- Heating mode
- Shelf heating
- Drying filtrate tank
- optional
- Gas-liquid separator
- optional
- Inert gas inlet
- optional
- Communication interface
- RS-485 interface and communication software (optional)
Introduction

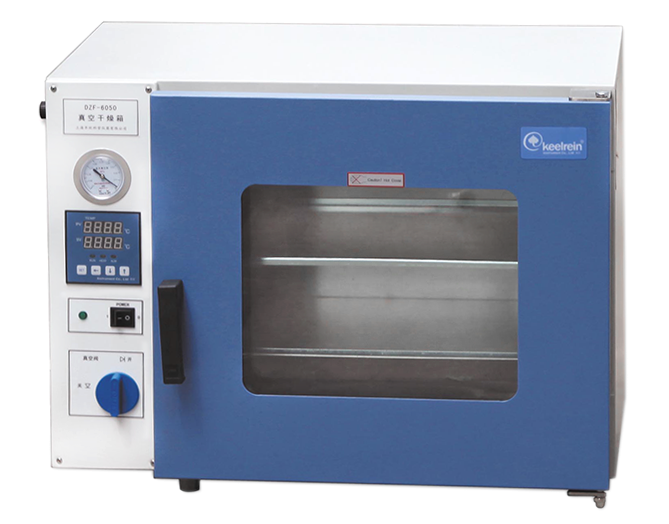

Shanghai Qixin DZF-6094 vacuum Drying Oven is designed for drying heat-sensitive, easily decomposing and oxidizing substances, which can be filled with inert gas, especially for some items with complex composition. It is widely used in the electronics and chemical industries.
Features
1. Digital microcomputer temperature controller with timing function, accurate and reliable temperature control.
2. Cuboid studio, so that the effective volume utilization rate is large.
3. Tempered, bulletproof double-glazed door to observe the objects in the studio, at a glance.
4. The door closure elasticity can be adjusted, and the silicone rubber door sealing ring is integrally formed to ensure a high vacuum degree in the box.
5. The studio is made of stainless steel plate or brushed plate to ensure that the product is durable.
6. With "D" series, it is an intelligent ten-segment programmable LCD controller.
7. With "LC" series, the vacuum degree can be displayed and controlled
