DUORUI DR-600/LEL gas detection Detector, sound and light alarm
DR-600/LEL acousto-optic
DuoRui DR-600/LEL acousto-optic Gas examination DetectorSPEC
DuoRui DR-600/LEL acousto-optic Gas examination DetectorDetails
DuoRui DR-600/LEL acousto-optic Gas examination DetectorPacking list
- SKU
- NB023578
- Sensors principle
- Catalytic combustion
- Detect gas
- EX
- Range
- 0~100%LEL
- Resolution
- 1%LEL
- Detection Accuracy
- ±5%
- Response time
- 30s
- Sampling method
- diffusion
- Shell material
- Die-casting aluminum/stainless steel
- Electrical interface
- M20 * 1.5 thread
- Output signal
- 4-20ma/RS485
- Explosion-proof sign
- Exd II GT6
- Protection level
- IP65
- Dimensions
- 200*190*75mm

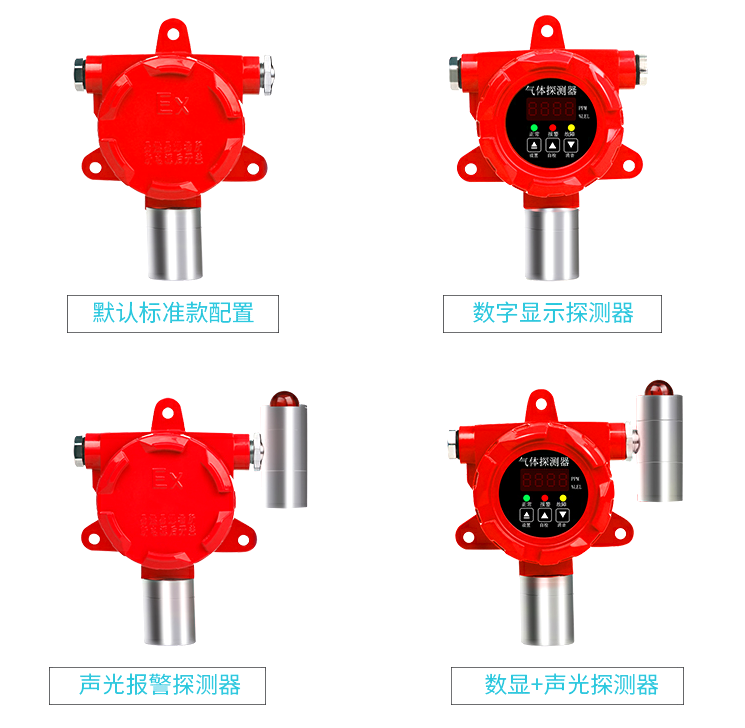

DR-600 Gas Detector, using imported sensors, can detect flammable/toxic gases, a total of four styles, according to the different characteristics of the gas, the Detector is equipped with different gas sensor components, used to detect the corresponding gas concentration in the surrounding atmosphere. The Detector can be selected with or without a display and audible and visual alarm. It can be installed in hazardous areas and non-hazardous areas in Class II explosion-proof environments.
The design, manufacture and inspection of this product comply with the following national standards:
GB12358-2006 "General Technical Requirements for Workplace Ambient Gas Detection and Alcellors"
GB15322.1-2003 Point Combustible Gas Detector with Measurement Range of 0~100% LEL
GB3836.1-2010 "Explosive atmospheres – Part 1: General requirements for equipment"
GB3836.2-2010 "Explosive atmospheres – Part 2: Equipment protected by flameproof enclosure "d"
