DUORUI DR-BX200 Gas Detector Range: 0-100% LEL

DUORUI DR-BX200 Gas Detector can be used to detect flammability Miscellaneous, and the working principle of pump suction, DR-BX200 detection range is 0-100% LEL, detection accuracy is ≤ +/- 5% FS.
Model：
Certificate
Contact
Details SPEC OI

DuoRui DR-BX200 Gas DetectorSPEC

DuoRui DR-BX200 Gas DetectorDetails

DuoRui DR-BX200 Gas DetectorPacking list

SKU
NB023596
Detect gas
EX
Range
0~100%LEL
Sampling method
pump suction
Detection Accuracy
≤±5%FS
Resolution
1% LEL (determined by Gas Sensors)
Response time
T90≤30s
Operating Environment
Temperature: -20~50 ℃ Humidity: ≤ 90% RH
Power Supply
Lithium battery 3.7V/6700mAH
Operating Time
When the pump is turned on, it can work continuously for about 9h
Sensors Life
36 Months (with Gas Sensors)
Sensors principle
Catalytic combustion
Alarm mode
Sound/light/vibration alarm
Dimensions
224*65*38mm
Product Mass
300g
DR-BX200
Gas Detector

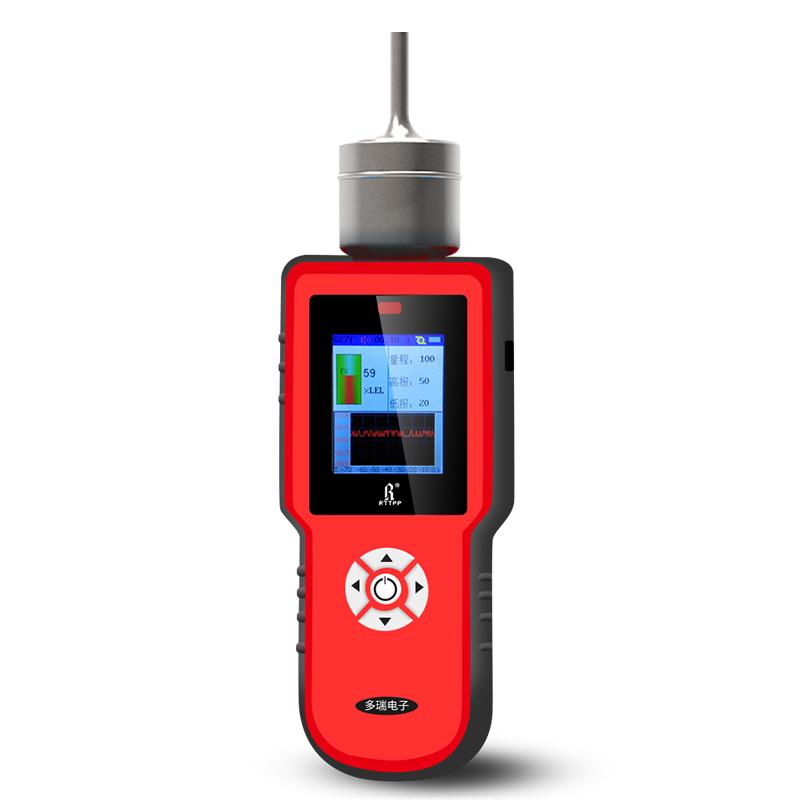

DUORUI DR-BX200 Gas Detector Range: 0-100% LEL Picture

Overview

DR-BX200 series pump-suction Gas Detector (hereinafter referred to as: equipment), is a continuous and rapid monitoring of the surrounding environment or confined space in the specific gas concentration of the equipment, the equipment used in the sensor, circuit chip, from the selection, testing to the finished product, have undergone a strict review process, the instrument has the advantages of fast response, high measurement accuracy, good stability and repeatability, the overall performance is fully upgraded.

The design, manufacture and inspection of this product comply with the following national standards:

JJF1368-2012 "Combustible Gas Detection Alarm Type Evaluation Outline"

JJG693-2011

GB15322.3-2003 Combustible Gas Detectors – Part 3: Portable Combustible Gas Detectors


FAQ
QDoes the pump suction Gas detector meet the specifications of GB15322.1?
A Model DR-BX200 Pump Suction Gas detector Compliant
QDR-BX200 Gas detector Sensors principle is catalytic combustion?
A Yes, this model Gas detector catalytic combustion principle. Detect gas EX
