CHNSPEC CS-220 Colorimeter SCE measurement, used with powder colloid Color measurement

Diameter 8mm, display accuracy 0.01, repeability accuracy ○ E standard deviation value 0.08, can measure yellowness and whiteness, remove specular reflected light "SCE" Measurement conditions, suitable for powder, colloid, high reflection and other samples.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

CHNSpec CS-220 Color difference meterSPEC

CHNSpec CS-220 Color difference meterDetails

CHNSpec CS-220 Color difference meterPacking list

SKU
NB000236
Lighting method
8°/d
Measurement range
L*：1~100
Measurement light source
CIE D65
Measurement time
About 0.5s
Measurement caliber
Φ8mm
Repeatability
Standard deviation Delta E * ab *, within 0.08
Operating language
Chinese, English
Interface
USB2.0, printer
Viewing Angle
CIE 10°
Lighting source
LED Light source
Color difference formula
Δ(L*a*b)，Δ(L*C*h)
data storage
100 groups of standard samples, 100 groups of test groups under each group of standard samples
Power supply Voltage
4 AA1.5V alkaline batteries or nickel-metal hydride batteries, special adapter DC5V
display mode
Chromatic value: L * a * b, L * C * h, delta E * ab, XYZ, relative RGB value, colour fastness, discoloration fastness; color difference value: delta (L * a * b), delta (L * C * h); whiteness value: Hunter whiteness, Gantz whiteness; yellowness value: YI
Operating environment
0℃~45℃
Storage environment
Relative Humidity below 80% (35 ℃) No condensation
Dimensions
77*86*210mm
Weight
550g
Other functions
Powder colloid measurement
CS-220
Color difference meter
Diameter 8mm, display accuracy 0.01, repeability accuracy ○ E standard deviation value 0.08, can measure yellowness and whiteness, remove specular reflected light "SCE" Measurement conditions, suitable for powder, colloid, high reflection and other samples.
CHNSPEC CS-220 Colorimeter SCE measurement, used with powder colloid Color measurement Picture

Introduction

CS-220 Colorimeter is a portable Colorimeter with vertical structure.The measuring diameter is 8mm,It can measure the color value of the sample L*a*b, L*c*h and the color difference △ of the measured sample E and △ Lab value. As a well-known Colorimeter manufacturer in CHINA, the CS-220 Colorimeter produced by the color spectrum Colorimeter is widely used in all walks of life, and the high-quality sensor gives users better accuracy and stability in color measurement, and is also suitable for various color measurement fields.

CS-220 professional Colorimeter is a professional color analysis instrument in a specific field, highly satisfying Luthor conditions, display accuracy up to 0.01, repeatability △E standard deviation value of 0.08, safety in line with CIE (International Illumination Committee) standards and national standards, CS-220 Colorimeter is suitable for color quality control in powder, colloid, high reflective and other fields, can achieve yellow and whiteness testing, can be multi-point test average.

Applications

The CS-220 Colorimeter has a wide range of applicationsIt is used in printing, coatings, auto parts, metals, home appliances, gold standard test strips, food safety, medical testing and other industries.

It is cost-effective among similar products in the world

▪ Obtained national metrology certification

▪ Switch between Chinese and English

▪ Ultra-stable performance

▪ The display accuracy is 0.01

▪ The repeatability △E standard deviation value is 0.08

▪ It can realize yellow and white test

▪ It can be averaged by multi-point tests

▪ Improve the accuracy of every test with a black and white calibration

Professional design standards, powerful functional configuration

▪ Ergonomic design

▪ Large-capacity data storage

▪ Multi-mode color value display

▪ PC software, computer data management

▪ USB, Bluetooth data connection and output

▪ Provides accurate test time settings

▪ The L*a*b value of the standard can be set manually

▪ It is suitable for internal and external color evaluation and data control of enterprises

Software Features

The CS-220 Colorimeter can display the qualification of the measurement data, print the test report, save the color data of each batch, and control the internal and external color HE data of the enterprise to achieve the management of larger capacity data.


CS-220 Colorimeter chromaticity space coordinates

Tests for special specialties

▪ CS-220 Colorimeter on CS-210ColorimeterIt is especially suitable for the color crystalline control of collar cans such as sperm, limb, and high-pressure light.

▪ Will.CS-220 ColorimeterSmoothly dare to take the average value of multi-point sampling or multi-point testing of sample crystals on a flat object.

CS-220 Colorimeter black and white cavity

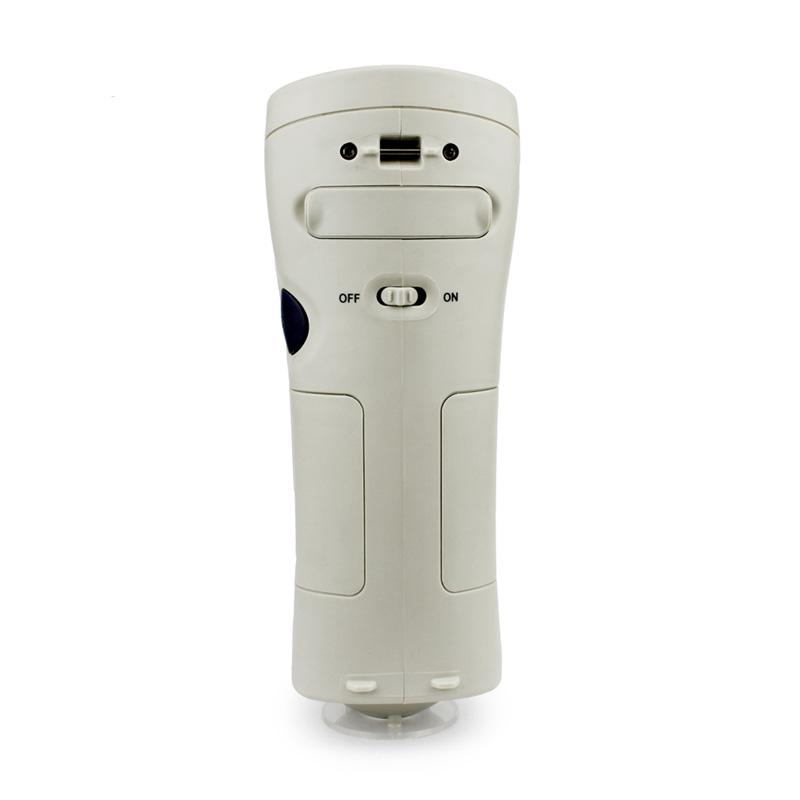

Actual picture of the product

CS-220 Colorimeter Actual Picture 1CS-220 Colorimeter Actual Picture 2

CS-220 Colorimeter Actual Picture 3CS-220 Colorimeter Actual Picture 4

CS-220 Colorimeter Actual Picture 5The actual picture of CS-220 Colorimeter 6.jpg

CS-220 Colorimeter functional structure diagram

CS-220 parts diagram

CS-220 Colorimeter Accessories Diagram

FAQ
QWhite card, double copper paper, gray card, special paper, sticker inks printing color difference can be measured?
A CS-220 is OK, the app can use both spectroscopic testing and tristimulus values.
QWhite card, double copper paper, gray card, special paper, self-adhesive Printing ink printing color difference can be measured?
A OK
QCan CS-220 color reader test lightfastmess?
A Hello, it's OK.
QDoes the CS-220 color reader meet the GB3979 standard?
A Hello, it fits.
QIs there a JJG (light industry) 48 standard color reader?
A This CHNSPEC color reader is fine!
QCan this CS220 color difference instrument export data to a computer?
A Yes, connect with the PC through the USB interface for data transmission.
QWould you like to inquire whether the boot needs to be calibrated?
A Hello! In order to ensure the stability of the instrument, it is recommended to calibrate the CS-220 color reader in black and white every time it is turned on. Thank you for your consultation.
