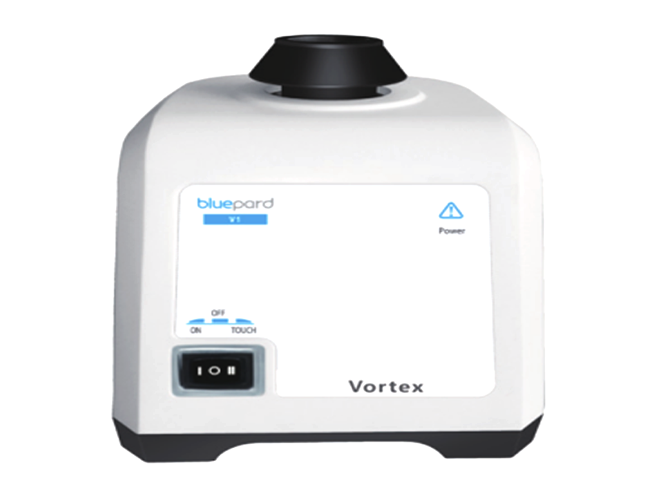

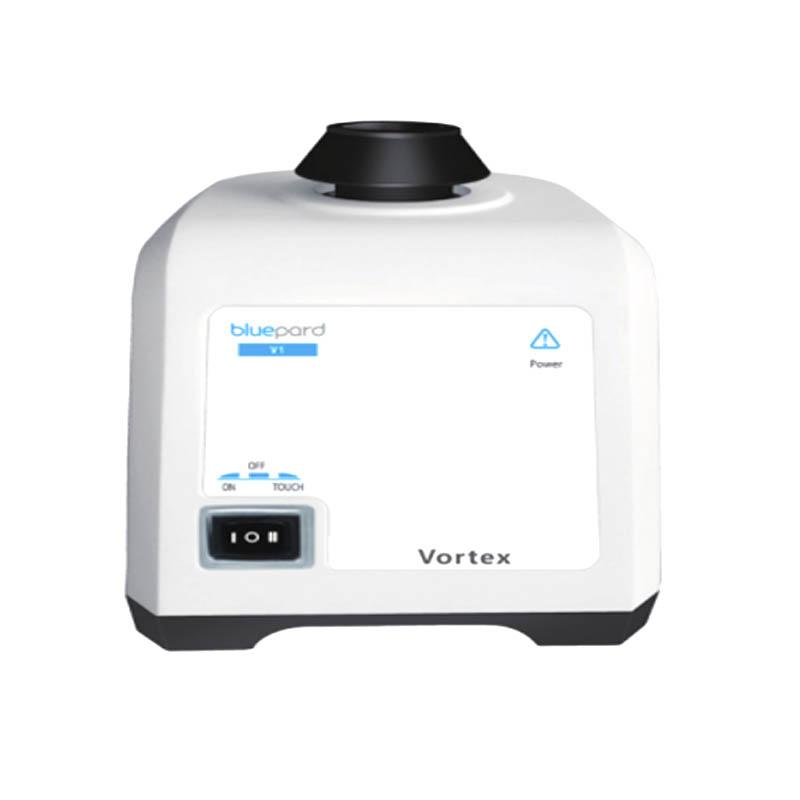

YIHENG V1 Vortex Mixer No display, fixed Rotation speed 2800rpm
SE
V1
YiHeng V1 Vortex MixerSPEC
YiHeng V1 Vortex MixerDetails
YiHeng V1 Vortex MixerPacking list
- SKU
- NB023681
- Speed range
- 2800rpm
- Speed display
- No display
- Oscillation method
- circumference
- Operating Mode
- Jog, continuous
- Vibration range
- 4mm
- Input power
- 60w
- power
- 60W
- Dimensions
- 170*120*140mm
- Standard
- Wear-resistant standard head
- Power
- 220V/50HZ
Features
● V1 adopts fixed speed/V2 adopts stepless speed regulation, the maximum can reach 2800RPM.
● With eccentric ball shaft design, the vibration head is easy to install.
● Soft silicone foot pads prevent the instrument from moving during high-speed vibrations. It is small in size and shockproof, suitable for high-speed work.
● Small size, low power consumption, low noise.
● The body adopts enhanced engineering plastic molding technology, without paint spraying, acid and alkali resistance, and collision resistance.
● The working surface is all made of anti-corrosion, wear-resistant and safe TPU material, which changes the characteristics of the original sponge table which is easy to be damaged.
● The instrument integrates continuous, point vibration, continuous, speed regulation and other functions, providing a fast operating platform for experiments.
Adapt to the tube specification
| standard head | Standard head for test tubes and small containers with a diameter of less than 30 mm |
| φ100mm | Universal round head, 100mm round plate holder, used with test tube adapters and spacers. |
| hand held pole | Hand held support rod for use with tube adapters |
| 48 holes/6mm | 48-well test tube adapter, used with φ100 universal round head and hand-held support rod for 48-well, 6mm test tube |
| 15 holes/10mm | 15-hole test tube adapter, used with φ100 universal round head and hand-held support rod, 10mm test tube |
| 12 holes/12mm | 12-hole test tube adapter, used with φ100 universal round head and hand-held support rod for 12-hole, 12mm test tubes |
| 8 holes/16mm | 8-hole test tube adapter, used with φ100 universal round head and hand-held prop for 8-hole, 16mm test tube |
| 8 holes/20mm | 8-hole test tube adapter, used with φ100 universal round head and hand-held support pole for 8-hole, 20mm test tube |
| Plate Gasket | Flat spacer, used with φ100 universal round head, used for test tube or small container with diameter less than 99mm |
