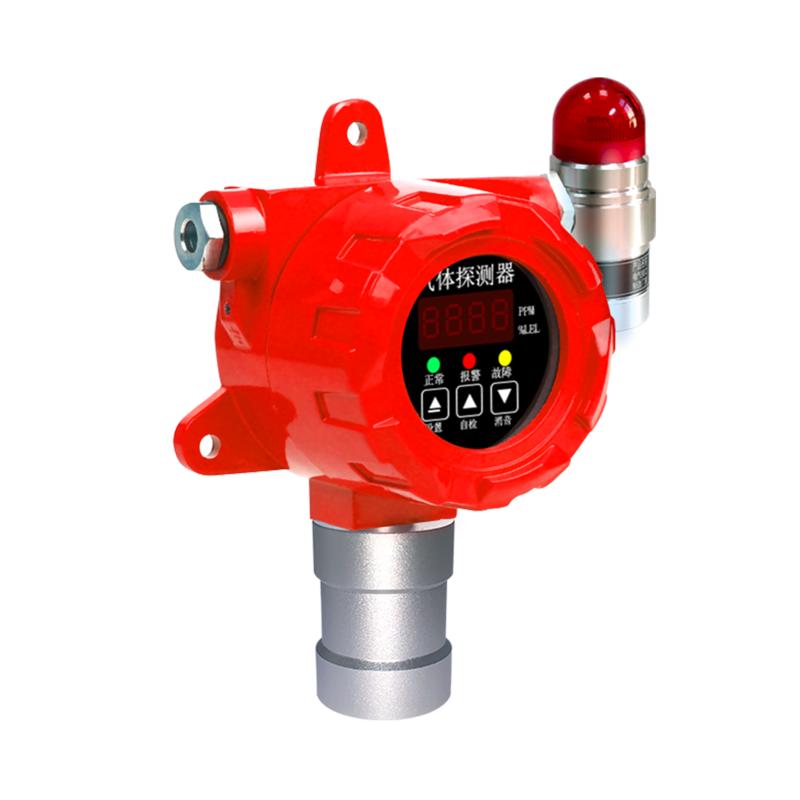

DUORUI DR-700-O2 Oxygen Gas Detector Acousto-optic model, Range: 0~30% VOL
DUORUI Oxygen Gas Detector DR-700-O2 is an acousto-optic portable oxygen Detector with a range of 0~30% VOL. The service life of DR-700-O2 Gas Detector Sensors is 1~ 2 years.
Model：
DR-700-O2 (sound and light)
DuoRui DR-700-O2 (sound and light) Gas DetectorSPEC
DuoRui DR-700-O2 (sound and light) Gas DetectorDetails
DuoRui DR-700-O2 (sound and light) Gas DetectorPacking list
- SKU
- NB023760
- Sensors principle
- Electrochemistry
- Detect gas
- Oxygen O2
- Sampling method
- diffusion
- Range
- 0~30%vol
- Humidity
- <95%RH
- service life
- 1 to 2 years (determined by Sensors)
- display error
- ±5%FS
- Cable Specifications
- Tier 3 or Tier 4
- Explosion-proof sign
- Exd II CT6
- Shell material
- die casting aluminum
- Working Power
- 2.5W
- Power Supply
- 24VDC
- Resolution
- 0.1%VOL
- Response time
- T90≤60s
- operating temperature
- -20~50℃
- Operating Time
- 24H online work
- Electrical interface
- M20 * 1.5 internal thread
- transmission distance
- ≤1200m
- Output signal
- 4~ 20mA or RS485
- Protection level
- IP65
- Display
- digital display
- Alarm mode
- No alarm/sound and light alarm
- Installation method
- Fixed bracket, wall mounted
DR-700-O2 (sound and light)
Gas Detector
Introduction
DR-700,Using imported sensors, it can detect flammable/toxic gases, a total of four styles, according to the different characteristics of the gas, the Detector is equipped with different gas sensor components, which are used to detect the corresponding gas concentration in the surrounding atmosphere. The Detector can be selected with or without a display and audible and visual alarm. It can be installed in hazardous areas and non-hazardous areas in Class II explosion-proof environments.
FAQ
QDoes the DUORUI Gas detector meet the standard GB15322.1?
A
The DR-700-O2 Gas detector can refer to
QDR-700-O2 (acousto-optic) Gas detector Sensors principle is electrochemistry?
A
Yes, this model Gas detector adopts the detection principle of electrochemistry. Detect gas O2
