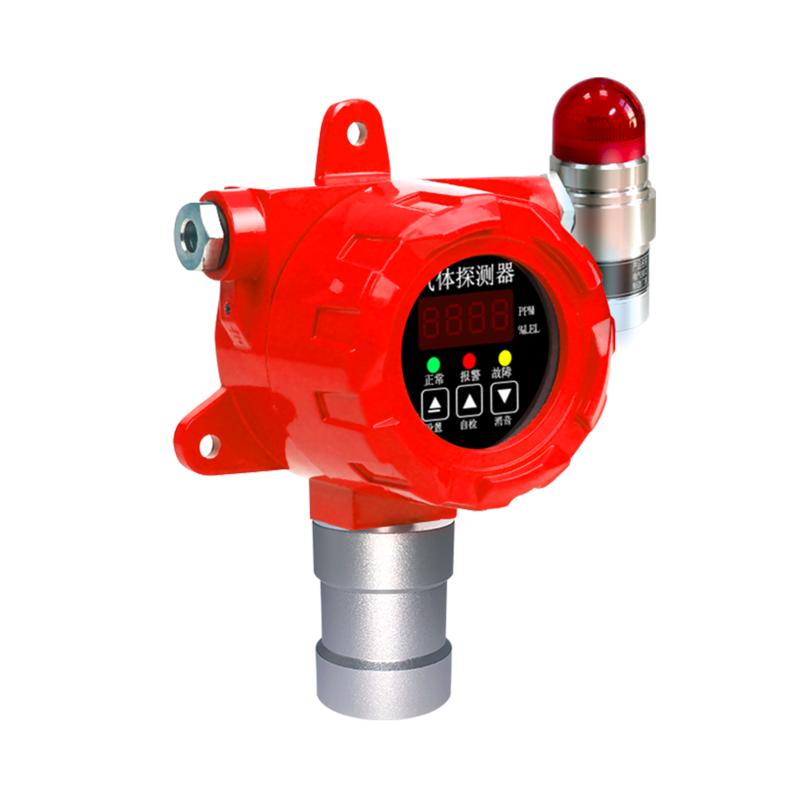

DUORUI DR-700-O2 Oxygen Gas Detector Digital display + acousto-optic model, range: 0~30% VOL
DUORUI DR-700-O2 Oxygen Gas Detector is a digital acousto-optic Gas Detector with a detection concentration of 0~30% VOL. DR-700-O2 Oxygen Gas Detector is suitable for explosion-proof and non-explosion-proof areas.
DR-700-O2 (digital display sound and light model)
DuoRui DR-700-O2 (digital display sound and light model) Gas DetectorSPEC
DuoRui DR-700-O2 (digital display sound and light model) Gas DetectorDetails
DuoRui DR-700-O2 (digital display sound and light model) Gas DetectorPacking list
- SKU
- NB023761
- Sensors principle
- Electrochemistry
- Detect gas
- Oxygen O2
- Sampling method
- diffusion
- Range
- 0~30%vol
- Humidity
- <95%RH
- service life
- 1 to 2 years (determined by Sensors)
- display error
- ±5%FS
- Cable Specifications
- Tier 3 or Tier 4
- Explosion-proof sign
- Exd II CT6
- Shell material
- die casting aluminum
- Working Power
- 2.5W
- Power Supply
- 24VDC
- Resolution
- 0.1%VOL
- Response time
- T90≤60s
- operating temperature
- -20~50℃
- Operating Time
- 24H online work
- Electrical interface
- M20 * 1.5 internal thread
- transmission distance
- ≤1200m
- Output signal
- 4~ 20mA or RS485
- Protection level
- IP65
- Display
- digital display
- Alarm mode
- No alarm/sound and light alarm
- Installation method
- Fixed bracket, wall mounted
DR-700-O2 (digital display sound and light model)
Gas Detector
Introduction
DR-700,Using imported sensors, it can detect flammable/toxic gases, a total of four styles, according to the different characteristics of the gas, the Detector is equipped with different gas sensor components, which are used to detect the corresponding gas concentration in the surrounding atmosphere. The Detector can be selected with or without a display and audible and visual alarm. It can be installed in hazardous areas and non-hazardous areas in Class II explosion-proof environments.
FAQ
QDo you have the Gas detector involved in GB3836.1?
A
The DR-700-O2 Gas detector will do
QDR-700-O2 (digital display acousto-optic model) Gas detector Sensors principle is electrochemistry?
A
Yes, this model Gas detector adopts the detection principle of electrochemistry. Detect gas O2
