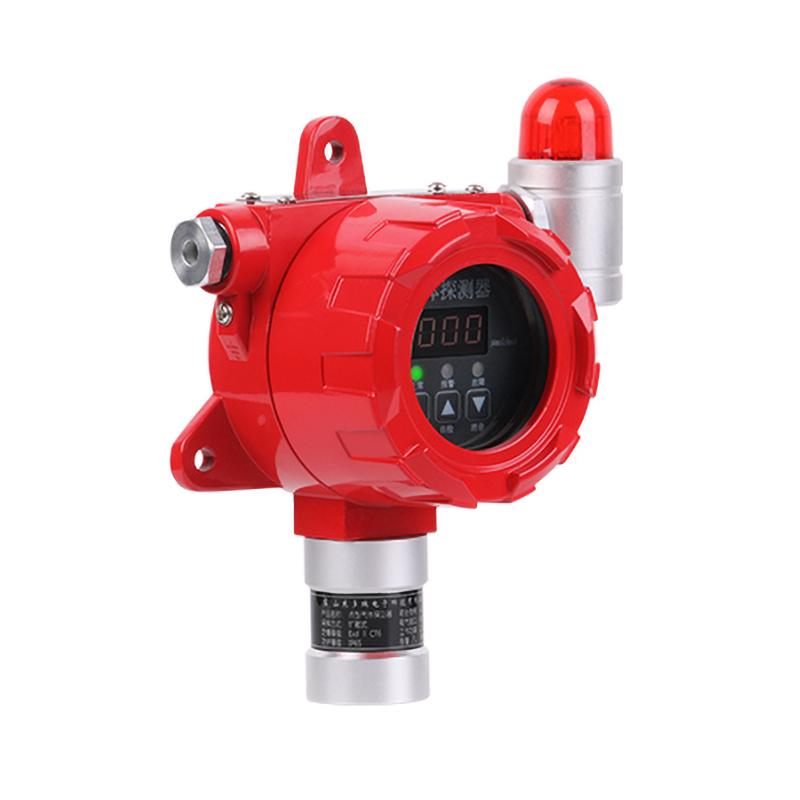

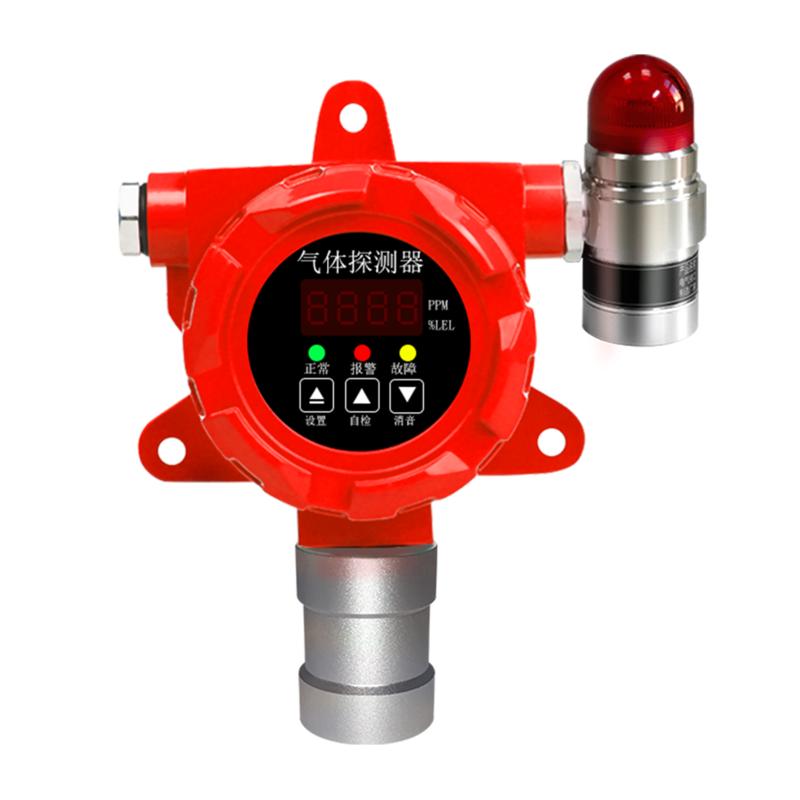

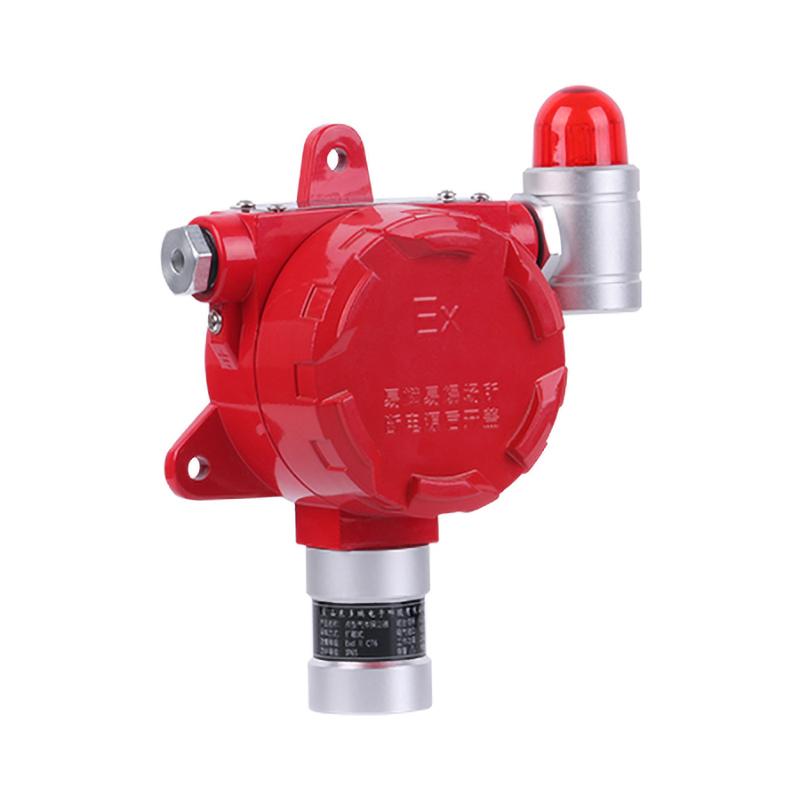

DUORUI DR-700-HCN Hydrogen Cyanide Gas Detector, Standard, Range: 0-50PPM

DUORUI Hydrogen Cyanide Gas Detector DR-700-HCN is an online fixed Gas Detector, detecting the concentration of hydrogen cyanide gas is 0-50PPM, DR-700-HCN Gas Detector can continuously detect online for 24 hours, Power is 2.5W.

Model：

DR-700-HCN (Standard)

Certificate

DuoRui

Contact

Details SPEC

DuoRui DR-700-HCN (Standard) Gas DetectorSPEC

DuoRui DR-700-HCN (Standard) Gas DetectorDetails

DuoRui DR-700-HCN (Standard) Gas DetectorPacking list

SKU: NB023861

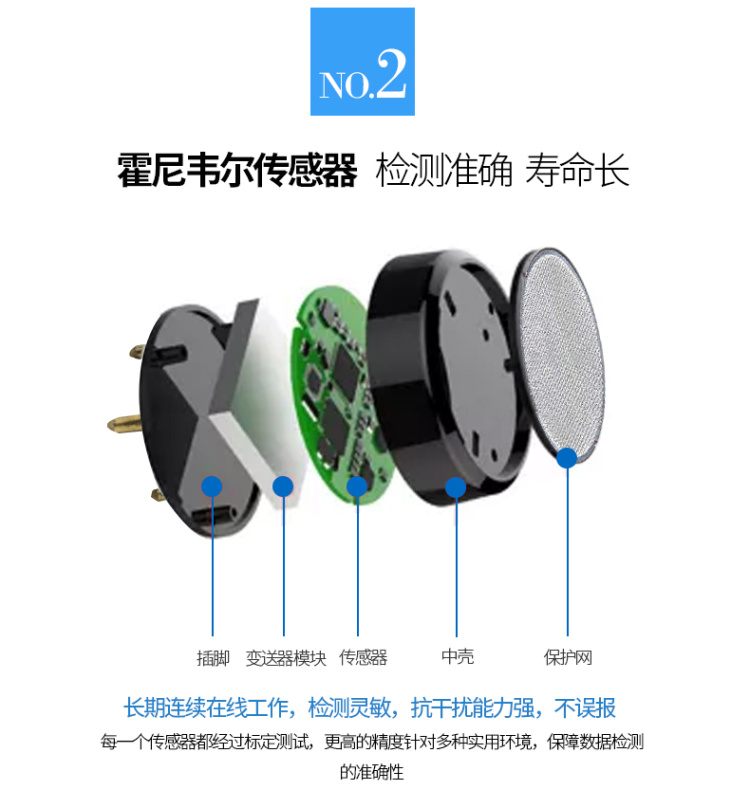

Sensors principle: Electrochemistry

Detect gas: Hydrogen cyanide HCN

Sampling method: diffusion

Range: 0~50ppm

Humidity: <95%RH

service life: 1 to 2 years (determined by Sensors)

display error: ±5%FS

Cable Specifications: Tier 3 or Tier 4

Explosion-proof sign: Exd II CT6

Shell material: die casting aluminum

Working Power: 2.5W

Power Supply: 24VDC

Response time: T90≤60s

operating temperature: -20~50℃

Operating Time: 24H online work

Electrical interface: M20 * 1.5 internal thread

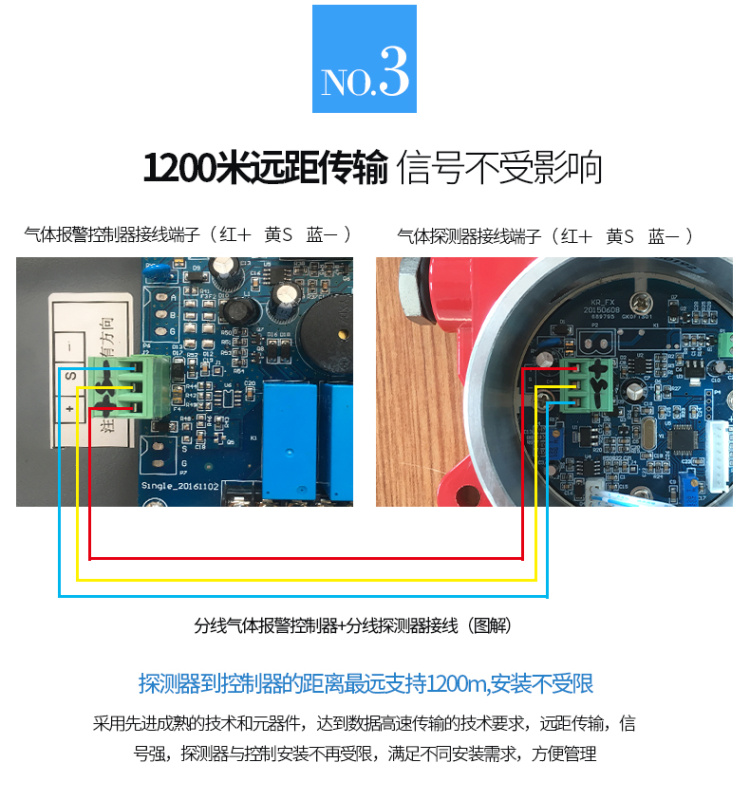

transmission distance: ≤1200m

Output signal: 4~ 20mA or RS485

Protection level: IP65

Display: digital display

Alarm mode: No alarm/sound and light alarm

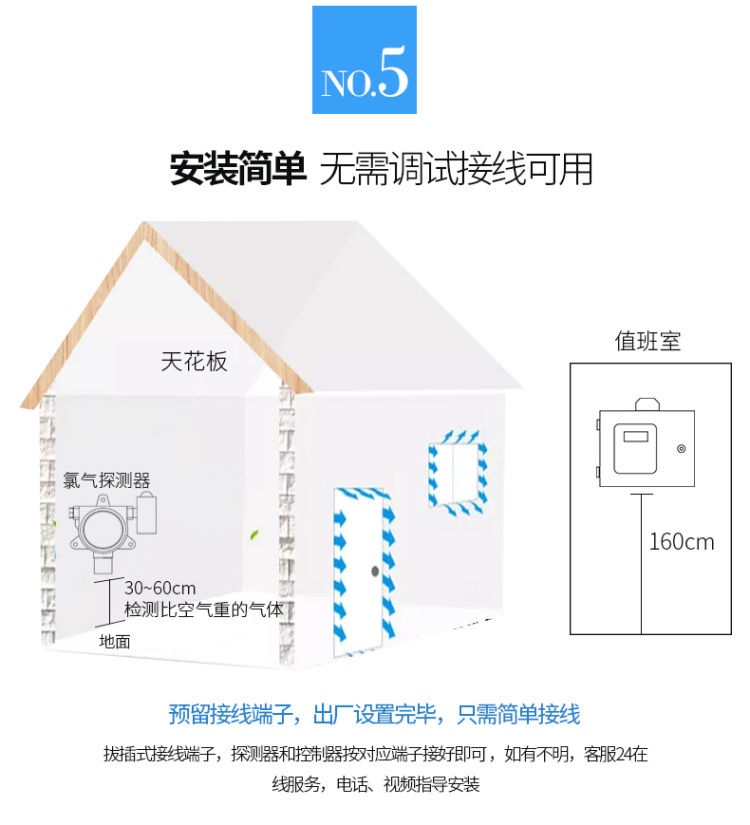

Installation method: Fixed bracket, wall mounted

DR-700-HCN (Standard)

Gas Detector

Introduction

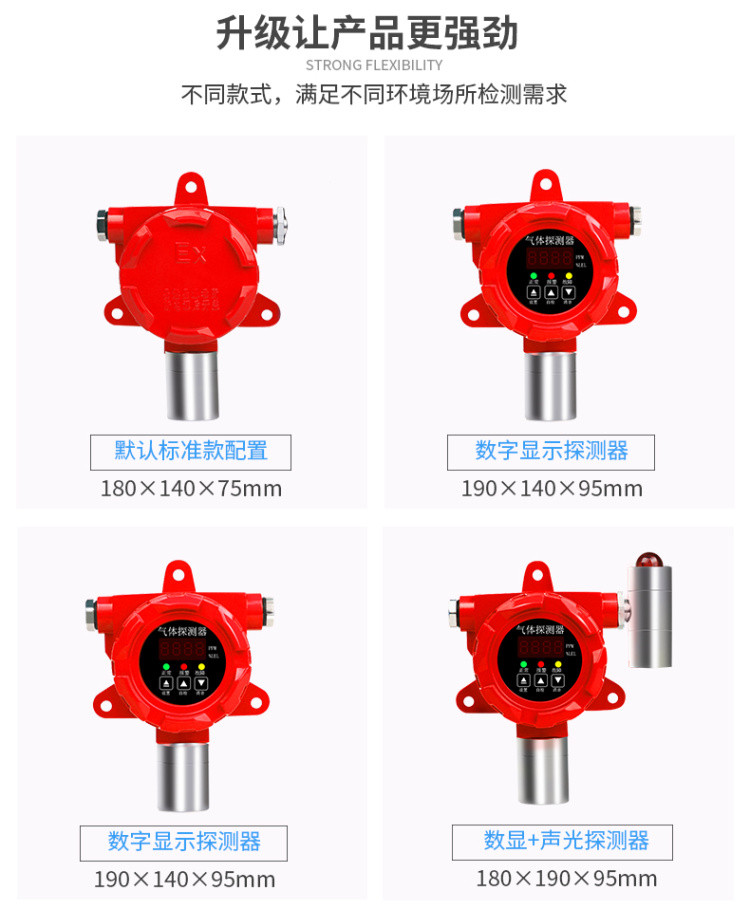

DR-700,Using imported sensors, it can detect flammable/toxic gases, a total of four styles, according to the different characteristics of the gas, the Detector is equipped with different gas sensor components, which are used to detect the corresponding gas concentration in the surrounding atmosphere. The Detector can be selected with or without a display and audible and visual alarm. It can be installed in hazardous areas and non-hazardous areas in Class II explosion-proof environments.
