DUORUI DR-700-HCL Hydrogen Chloride Gas Detector Liquid crystal + acousto-optic model, Range: 0-50PPM

DUORUI Hydrogen Chloride Gas Detector DR-700-HCL detects gas concentration of 0-50PPM, is an online Hydrogen Chloride Gas Detector, DR-700 adopts LCD digital display screen, Protection level of the shell is IP65.
Certificate
Contact
Details SPEC

DuoRui DR-700-HCL (LCD acousto-optic model) Gas DetectorSPEC

DuoRui DR-700-HCL (LCD acousto-optic model) Gas DetectorDetails

DuoRui DR-700-HCL (LCD acousto-optic model) Gas DetectorPacking list

SKU
NB023867
Sensors principle
Electrochemistry
Detect gas
Hydrogen chloride HCL
Sampling method
diffusion
Range
0~50ppm
Humidity
<95%RH
service life
1 to 2 years (determined by Sensors)
display error
±5%FS
Cable Specifications
Tier 3 or Tier 4
Explosion-proof sign
Exd II CT6
Shell material
die casting aluminum
Working Power
2.5W
Power Supply
24VDC
Response time
T90≤60s
operating temperature
-20~50℃
Operating Time
24H online work
Electrical interface
M20 * 1.5 internal thread
transmission distance
≤1200m
Output signal
4~ 20mA or RS485
Protection level
IP65
Display
digital display
Alarm mode
No alarm/sound and light alarm
Installation method
Fixed bracket, wall mounted
DR-700-HCL (LCD acousto-optic model)
Gas Detector

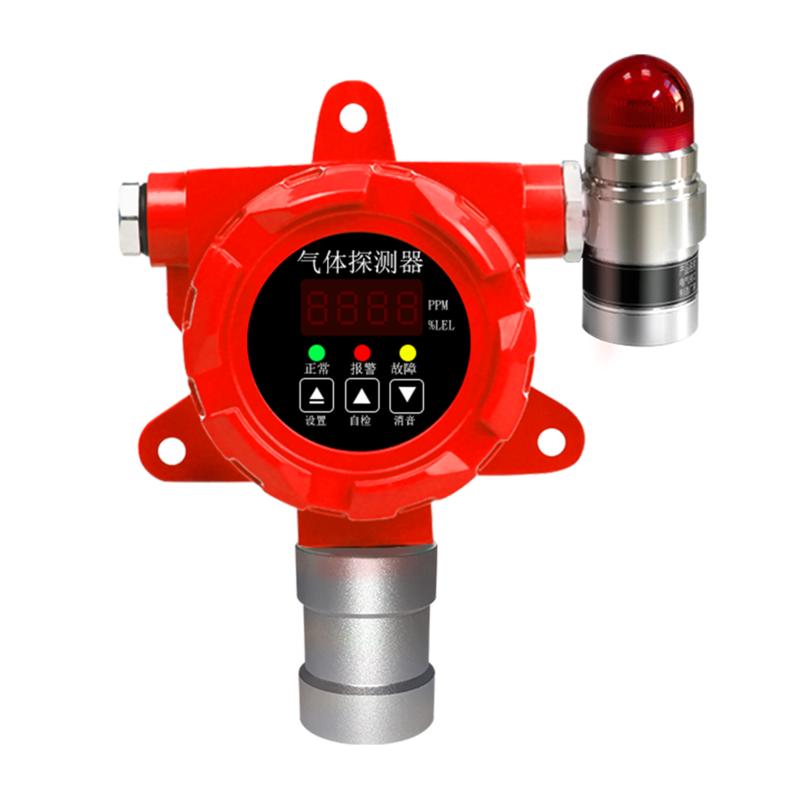

DUORUI DR-700-HCL Hydrogen Chloride Gas Detector Liquid crystal + acousto-optic model, Range: 0-50PPM Picture

Introduction

DR-700,Using imported sensors, it can detect flammable/toxic gases, a total of four styles, according to the different characteristics of the gas, the Detector is equipped with different gas sensor components, which are used to detect the corresponding gas concentration in the surrounding atmosphere. The Detector can be selected with or without a display and audible and visual alarm. It can be installed in hazardous areas and non-hazardous areas in Class II explosion-proof environments.




FAQ
QGas detector conforms to GB15322.1 standard?
A Gas detector is suitable for GB15322.1, please consult customer service for detailed application definition
