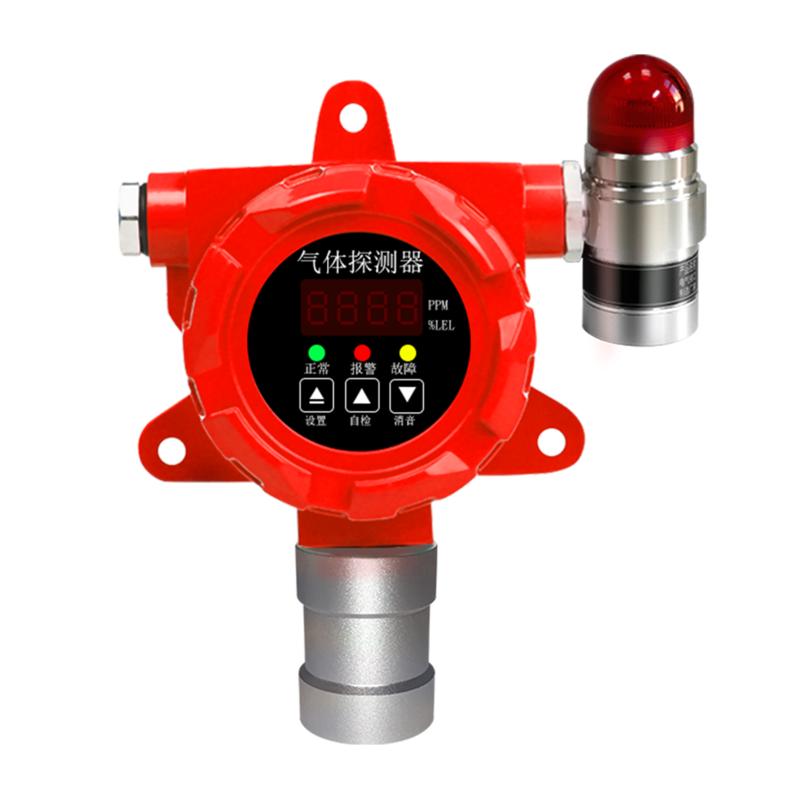

DUORUI DR-700-HCL Hydrogen chloride Gas Detector Liquid crystal display, Range: 0-50PPM

DUORUI Hydrogen Chloride Gas Detector DR-700-HCL is used to detect HCL gas concentration with a range of 50PPM, DR-700-HCL Hydrogen Chloride Gas Detector has Exd II CT6 Explosion-proof level.

Model：

DR-700-HCL (LCD Display)

Certificate

DuoRui

Contact

Details SPEC

DuoRui DR-700-HCL (LCD Display) Gas DetectorSPEC

DuoRui DR-700-HCL (LCD Display) Gas DetectorDetails

DuoRui DR-700-HCL (LCD Display) Gas DetectorPacking list

SKU: NB023868

Sensors principle: Electrochemistry

Detect gas: Hydrogen chloride HCL

Sampling method: diffusion

Range: 0~50ppm

Humidity: <95%RH

service life: 1 to 2 years (determined by Sensors)

display error: ±5%FS

Cable Specifications: Tier 3 or Tier 4

Explosion-proof sign: Exd II CT6

Shell material: die casting aluminum

Working Power: 2.5W

Power Supply: 24VDC

Response time: T90≤60s

operating temperature: -20~50℃

Operating Time: 24H online work

Electrical interface: M20 * 1.5 internal thread

transmission distance: ≤1200m

Output signal: 4~ 20mA or RS485

Protection level: IP65

Display: digital display

Alarm mode: No alarm/sound and light alarm

Installation method: Fixed bracket, wall mounted

DR-700-HCL (LCD Display)

Gas Detector

Introduction

DR-700,Using imported sensors, it can detect flammable/toxic gases, a total of four styles, according to the different characteristics of the gas, the Detector is equipped with different gas sensor components, which are used to detect the corresponding gas concentration in the surrounding atmosphere. The Detector can be selected with or without a display and audible and visual alarm. It can be installed in hazardous areas and non-hazardous areas in Class II explosion-proof environments.
