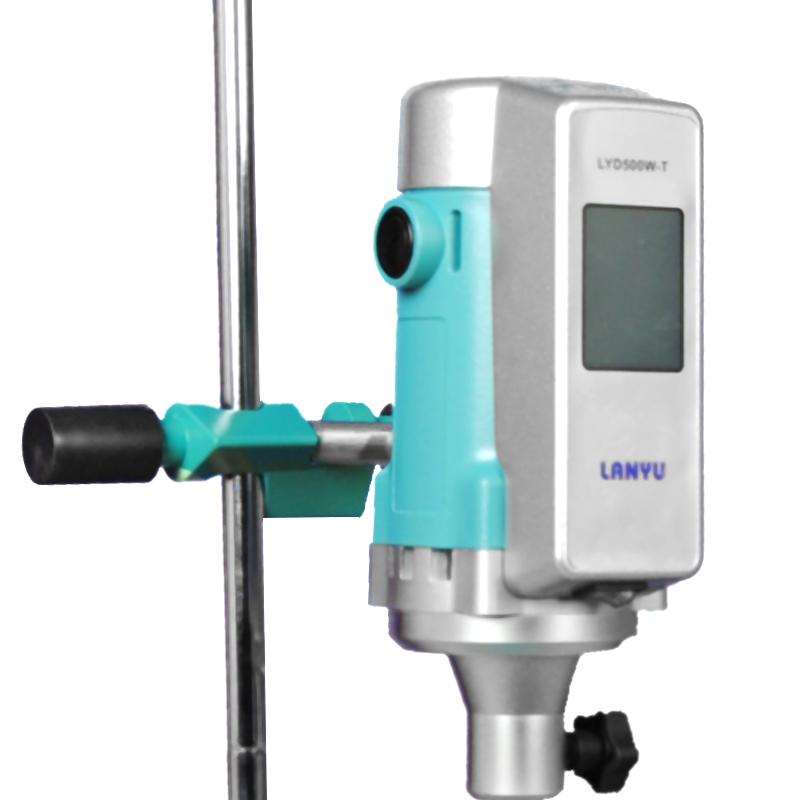

Lanyu LYD500W-T LABOratory High Shear Disperse Homogenizer
SELYD500W-T is a touch-controlled high-shear dispersion Homogenizer with a rotational speed range of 100~28000rpm, detachable working head, LYD500W-T high-shear dispersion Homogenizer can be timed for 1~ 1000min.
Model：
LYD500W-T
Similar products
LanYu LYD500W-T High Speed Dispersion HomogenizerSPEC
LanYu LYD500W-T High Speed Dispersion HomogenizerDetails
LanYu LYD500W-T High Speed Dispersion HomogenizerPacking list
- SKU
- NB023943
- Rated Voltage
- AC220V
- Rated frequency
- 50/60HZ
- Input power
- 850W
- output power
- 500W
- Drive type
- DC brushless motor
- Stir shaft output torque
- 18N cm
- Duty Cycle
- 100%
- Operation control method
- touch screen
- Speed range
- 100~28000rpm
- speed control
- Stepless speed regulation, full screen touch screen control
- Timer
- 1~1000min
- Speed display
- TFT-LCD
- Overload protection
- Yes
- Max Torque
- 18N.cm
- Allowable environment temperature
- ≤40℃
- Allowable Relative Humidity
- ≤80%
- Dimensions
- 215*30*700mm
- Total Weight
- 10kg
- Real-time Voltage, current, frequency, power display
- Yes
- Overload protection
- Yes
- Work head material
- SS316 (stainless steel)
- Work head specification
- 12G 18G 24G 30G 36G
LYD500W-T
High Speed Dispersion Homogenizer
Introduction
Lanyu Technology LYM200W-T laboratory mixer has a triple-core processor intelligent control motherboard, a 2.8-inch TFT true-color touch screen, and real-time Voltage, frequency, current, and power display. With torque curve display, the experimental data is more accurate. It has overload and overcurrent protection, local self-test, timing, memory and other functions. The speed can be preset and paused at any time. The speed is digitally displayed and easy to operate. The working head is detachable, which is convenient for replacement, cleaning and sterilization. The fuselage is all injection molded from high-quality engineering plastics to ensure safety and reliability during use. No-load speed range: 1000-28000rpm
FAQ
QMainly want to know one of its principles, and whether this product will produce more bubbles after dispersing the low viscosity solution? Mainly an aqueous solution with metal oxide particles added
A
No. Rotation speed low
