China

Lanyu LYD500W-T LABOratory High Shear Dispersion Homogenizer 12G/30~800ml

SE
Three-core processor intelligent control main board, 2.8-inch TFT true color touch screen, real-time Voltage, frequency, current and power display. With torque Linear dispersion diagram display, the experimental data is more accurate. There are overload and overcurrent protection, local self-test, timing, memory and other functions, the speed can be preset and can be suspended at any time, the speed digital display, easy to operate. The working head is detachable
$842.00/set
PromotionLoading...
Coupon
Certificate

LanYu LYD500W-T (set one) High Speed Dispersion HomogenizerSPEC

LanYu LYD500W-T (set one) High Speed Dispersion HomogenizerDetails

LanYu LYD500W-T (set one) High Speed Dispersion HomogenizerPacking list

SKU
NB023944
Rated Voltage
AC220V
Rated frequency
50/60HZ
Input power
850W
output power
500W
Drive type
DC brushless motor
Stir shaft output torque
18N cm
Duty Cycle
100%
Operation control method
Touch knob
Speed range
100~28000rpm
speed control
Stepless speed regulation, full screen touch screen control
Timer
1~1000min
Speed display
TFT-LCD
Overload protection
Yes
Max Torque
18N.cm
throughput
30~800ml
Allowable environment temperature
≤40℃
Allowable Relative Humidity
≤80%
Dimensions
215*30*700mm
Total Weight
10kg
Real-time Voltage, current, frequency, power display
Yes
Overload protection
Yes
Work head material
SS316 (stainless steel)
Work head specification
12G
LYD500W-T (set one)
High Speed Dispersion Homogenizer
Three-core processor intelligent control main board, 2.8-inch TFT true color touch screen, real-time Voltage, frequency, current and power display. With torque Linear dispersion diagram display, the experimental data is more accurate. There are overload and overcurrent protection, local self-test, timing, memory and other functions, the speed can be preset and can be suspended at any time, the speed digital display, easy to operate. The working head is detachable

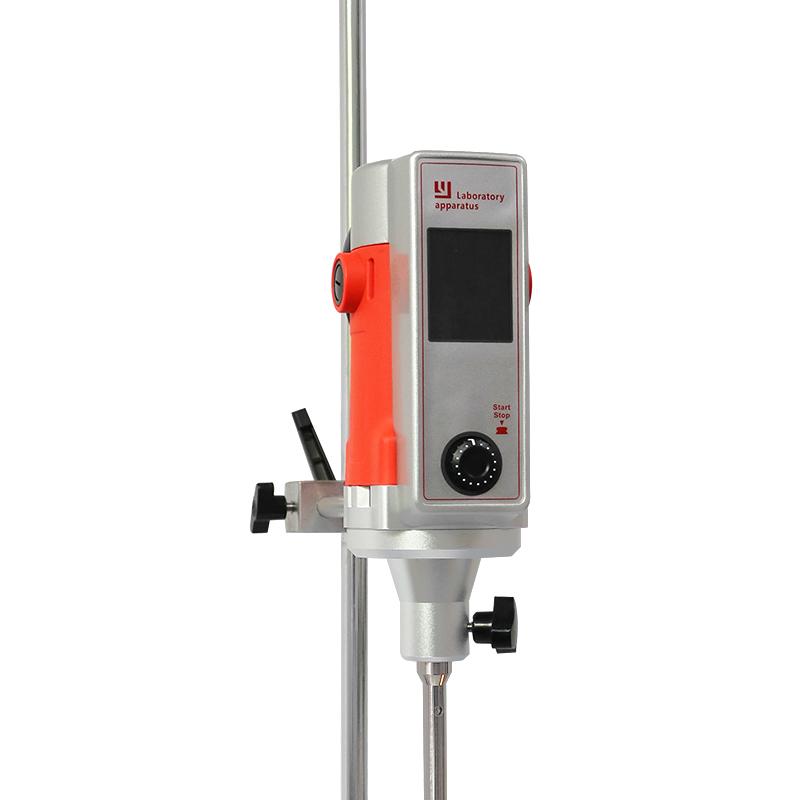

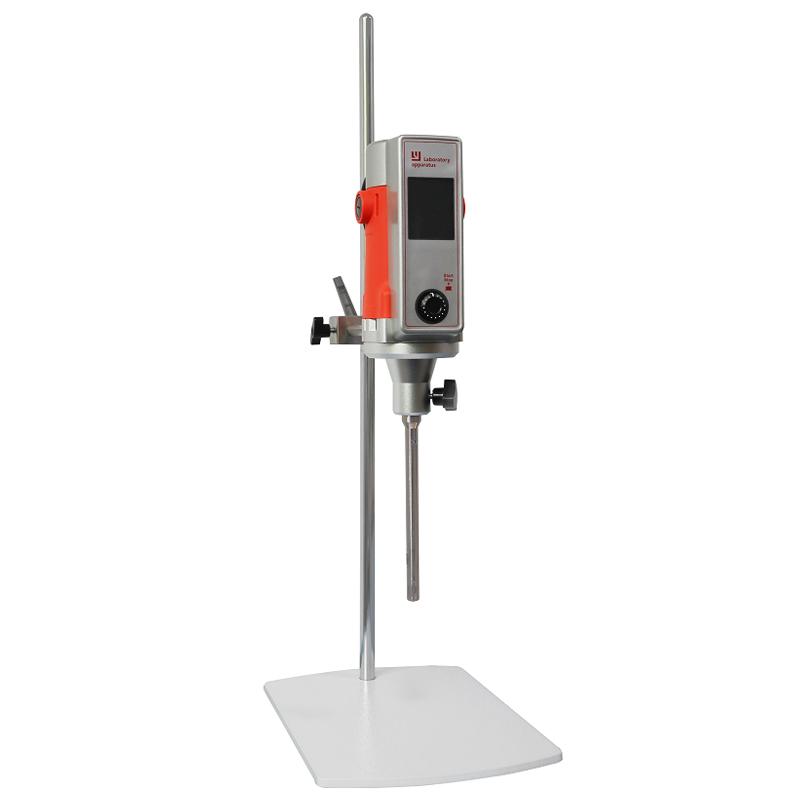

Lanyu  LYD500W-T LABOratory High Shear Dispersion Homogenizer 12G/30~800ml Picture

Introduction

Lanyu Technology LYM200W-T laboratory mixer has a triple-core processor intelligent control motherboard, a 2.8-inch TFT true-color touch screen, and real-time Voltage, frequency, current, and power display. With torque curve display, the experimental data is more accurate. It has overload and overcurrent protection, local self-test, timing, memory and other functions. The speed can be preset and paused at any time. The speed is digitally displayed and easy to operate. The working head is detachable, which is convenient for replacement, cleaning and sterilization. The fuselage is all injection molded from high-quality engineering plastics to ensure safety and reliability during use. No-load speed range: 1000-28000rpm

FAQ
QThis seems to be divided into Mulser and Homogenizer. Aren't these two machines in my impression?
A Mulser: the use of high shear force to mix one liquid with another immiscible liquid; Homogenizer: mixing (agitating) solid particulate matter (PM) into a dissolved liquid, equilibrate concentration and temperature difference
