JINGQI NDJ-5S Digital Viscometer 100000mPa · s

Measurement range 10~100000mPa · s, rotor specifications 1 #, 2 #, 3 #, 4 #, Rotor speed 6/12/30/60rpm, Measurement accuracy +/- 3% F.S, Power supply Voltage AC 220V +/- 10% 50Hz +/- 10%, allowing Operating temperature 5~ 35 ℃, allowing Relative Humidity ≤ 80%.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

JingQi NDJ-5S Digital ViscometerSPEC

JingQi NDJ-5S Digital ViscometerDetails

JingQi NDJ-5S Digital ViscometerPacking list

SKU
NB023966
Display mode
digital explicit
Measurement range
10~100000mPa·s
Rotor specification
1#、2#、3#、4#
Rotor speed
6/12/30/60rpm
Measurement Accuracy
±3%F.S
Power supply Voltage
AC 220V +/- 10% 50Hz +/- 10%
Operating temperature
5~35℃
Allowable Relative Humidity
≤80%
NDJ-5S
Digital Viscometer
Measurement range 10~100000mPa · s, rotor specifications 1 #, 2 #, 3 #, 4 #, Rotor speed 6/12/30/60rpm, Measurement accuracy +/- 3% F.S, Power supply Voltage AC 220V +/- 10% 50Hz +/- 10%, allowing Operating temperature 5~ 35 ℃, allowing Relative Humidity ≤ 80%.

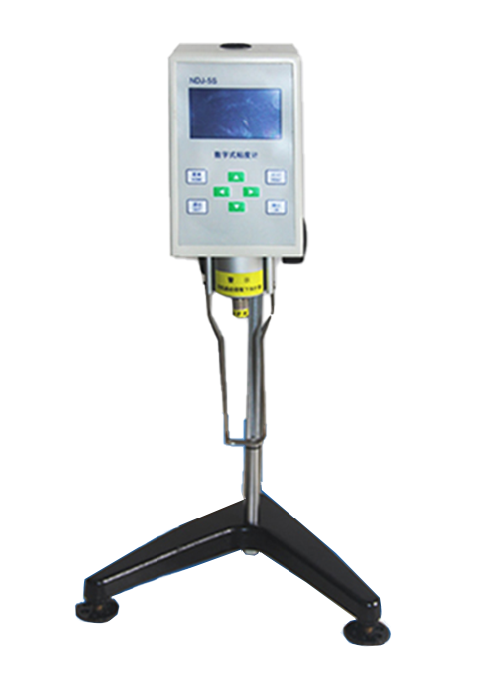

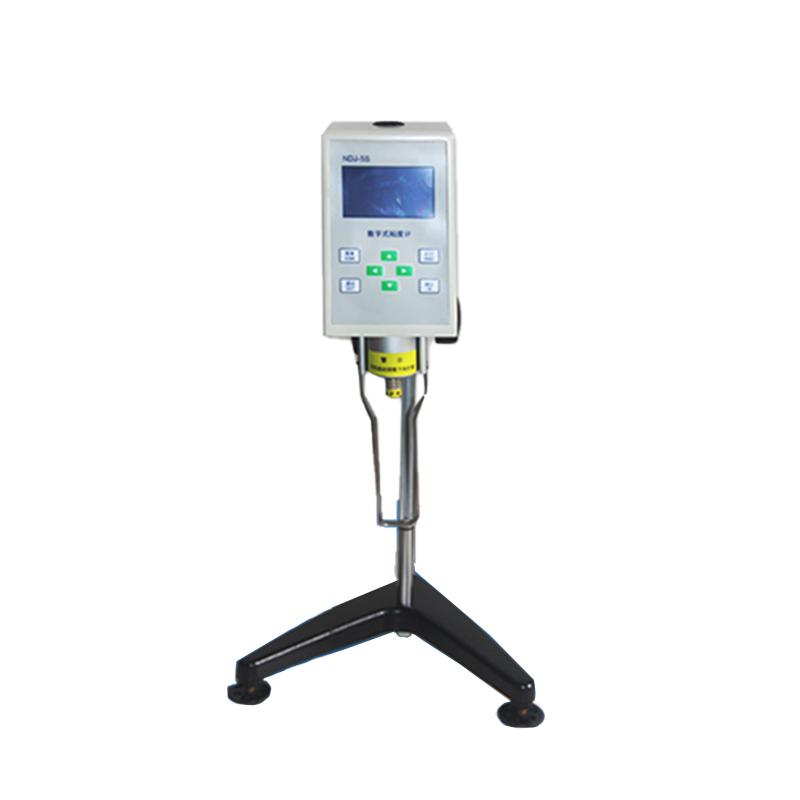

JINGQI NDJ-5S Digital Viscometer 100000mPa · s Picture

Introduction

NDJ-5S type rotatingviscometerIt is a new generation of rotary viscometer. This instrument adopts professional mechanical design technology, manufacturing process, and microcomputer control technology, accurate data acquisition, white backlight, high-brightness LCD display, and clear data display.

This instrument has the characteristics of high measurement sensitivity, reliable test results, easy to use and operation, beautiful appearance, etc., and is used to measure the absolute viscosity of Newtonian liquids and the performance viscosity of non-Newtonian liquids, and can be widely used in the measurement of various fluid viscosities such as grease, paint, plastic, coatings, adhesives, detergents, etc.

FAQ
QMeasure the viscosity of latex, is this Viscometer suitable?
A Latex viscosity can be measured, please pay attention to choose the viscosity range suitable for your sample.
QDoes the Digital Viscometer meet the specification of GB/T22427.7?
A Model NDJ-5S Digital Viscometer Compliant
QCan Shanghai Jingqi NDJ-5S Digital Viscometer test detergent viscosity?
A Hello, the application is OK. The viscosity test range of this NDJ-5S is 10~ 100000mPa · s.
QIs the NDJ-5S Digital Viscometer Rotor velocity stepless?
A Hello, no, it is ladder speed regulation. Rotor velocity is 6rpm, 12rpm, 30rpm, 60rpm.
