RDS 28 #3/8 "Mayer Rods WFT 64.0μm Length 400mm

SE
Wire-wound, wet film thickness 64.0μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.71mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 28# 3/8" Applicator rod 3/8 "SPEC

RDS 28# 3/8" Applicator rod 3/8 "Details

RDS 28# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000024
Production process
wire-wound
WFT
64.0μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.71mm
28# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 64.0μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.71mm.

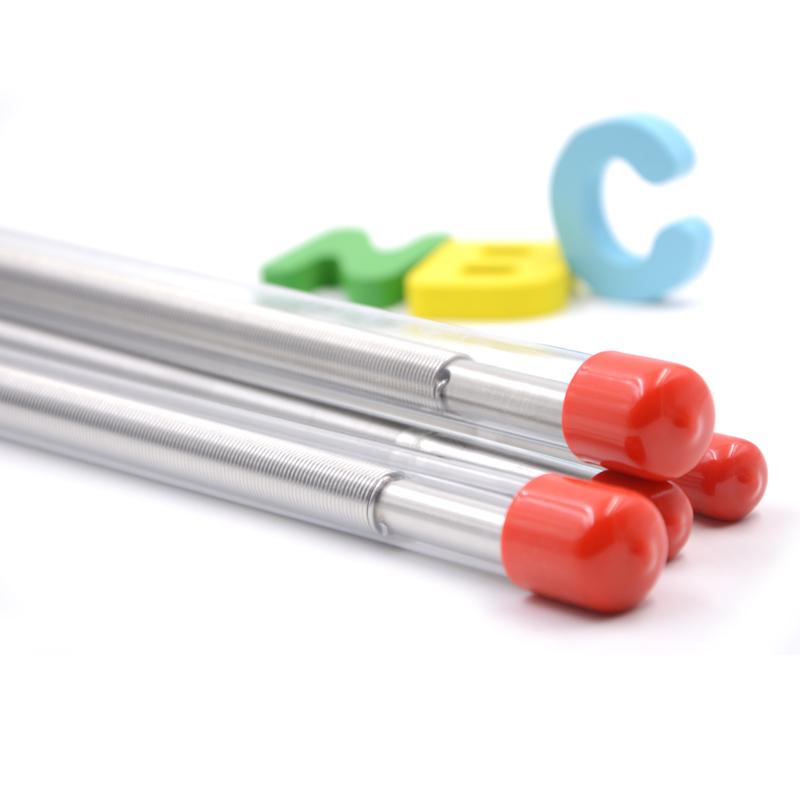

RDS 28 #3/8 "Mayer Rods WFT 64.0μm Length 400mm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

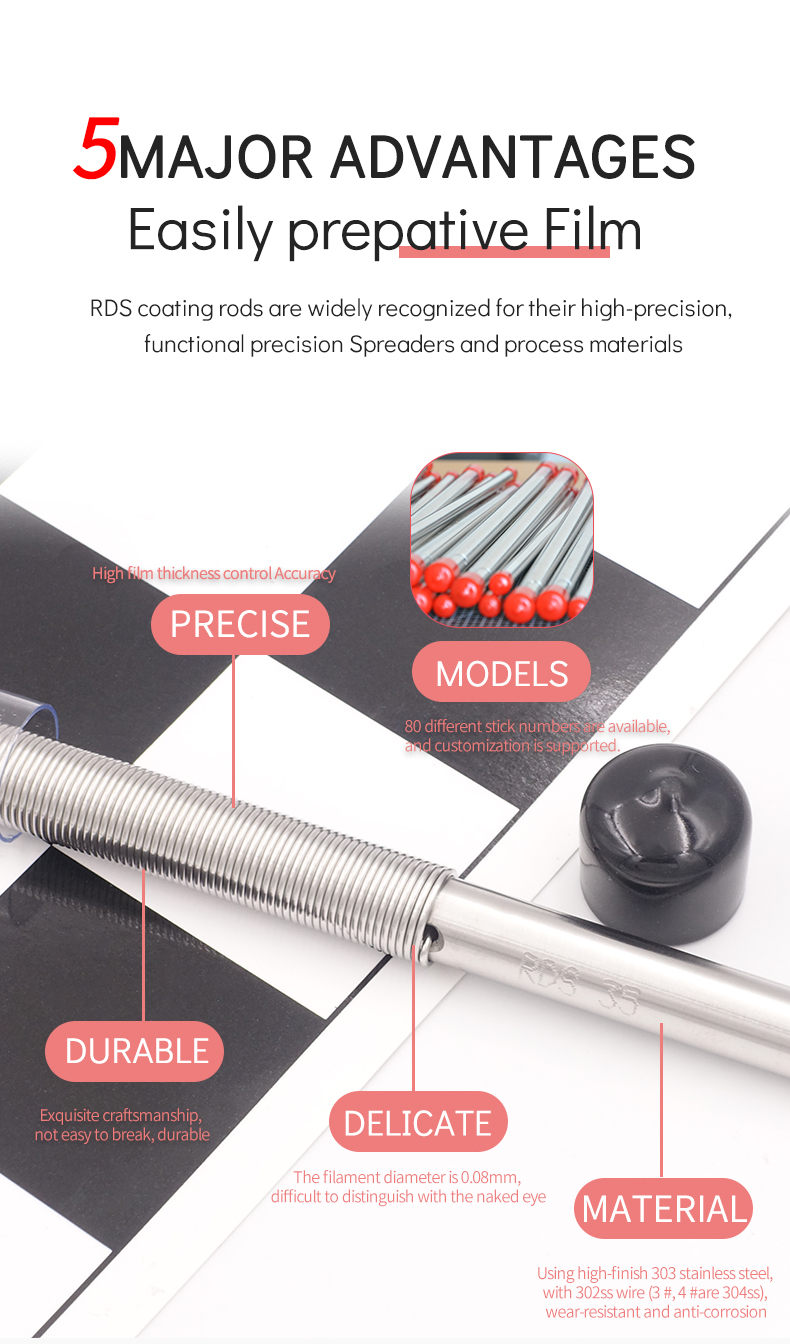

RDS coating Rods Figure 3

RDS coating Rods Figure 4

RDS coating Rods Figure 5

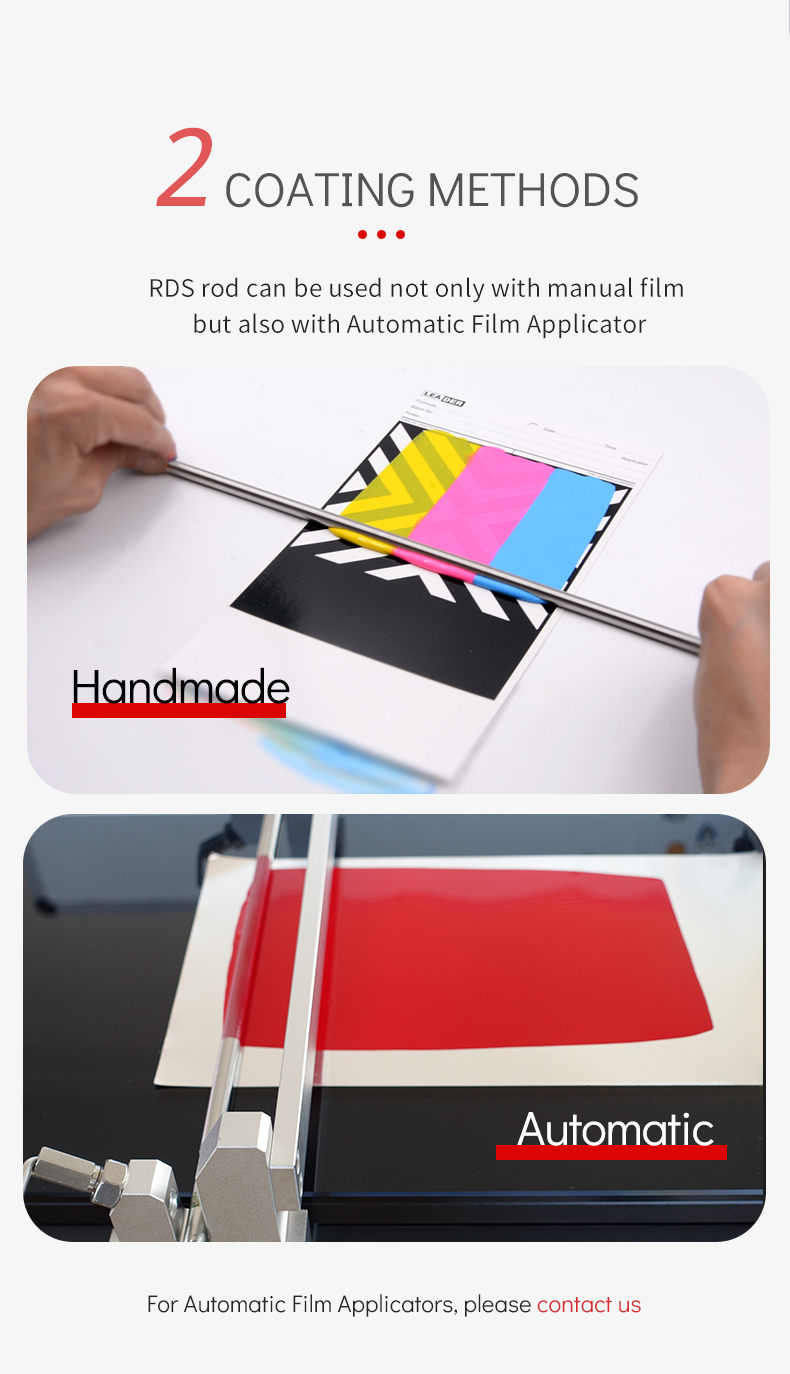

RDS coating Rods Figure 6

RDS coating Rods Figure 7

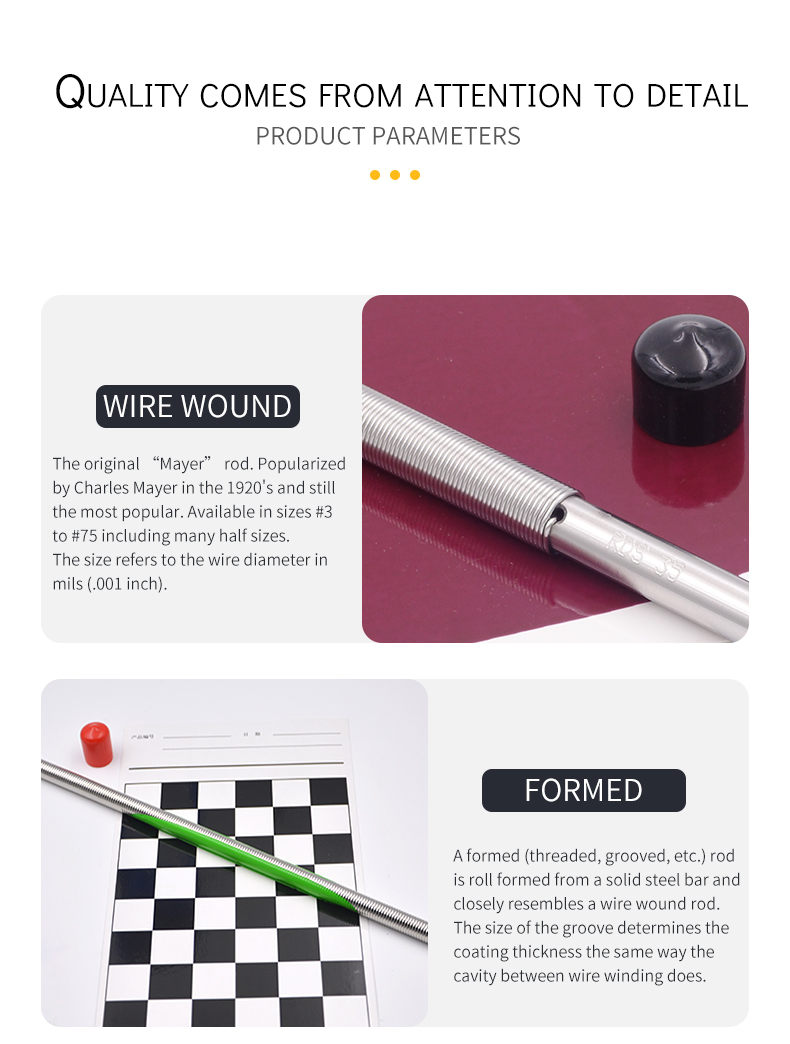

RDS coating Rods Figure 8

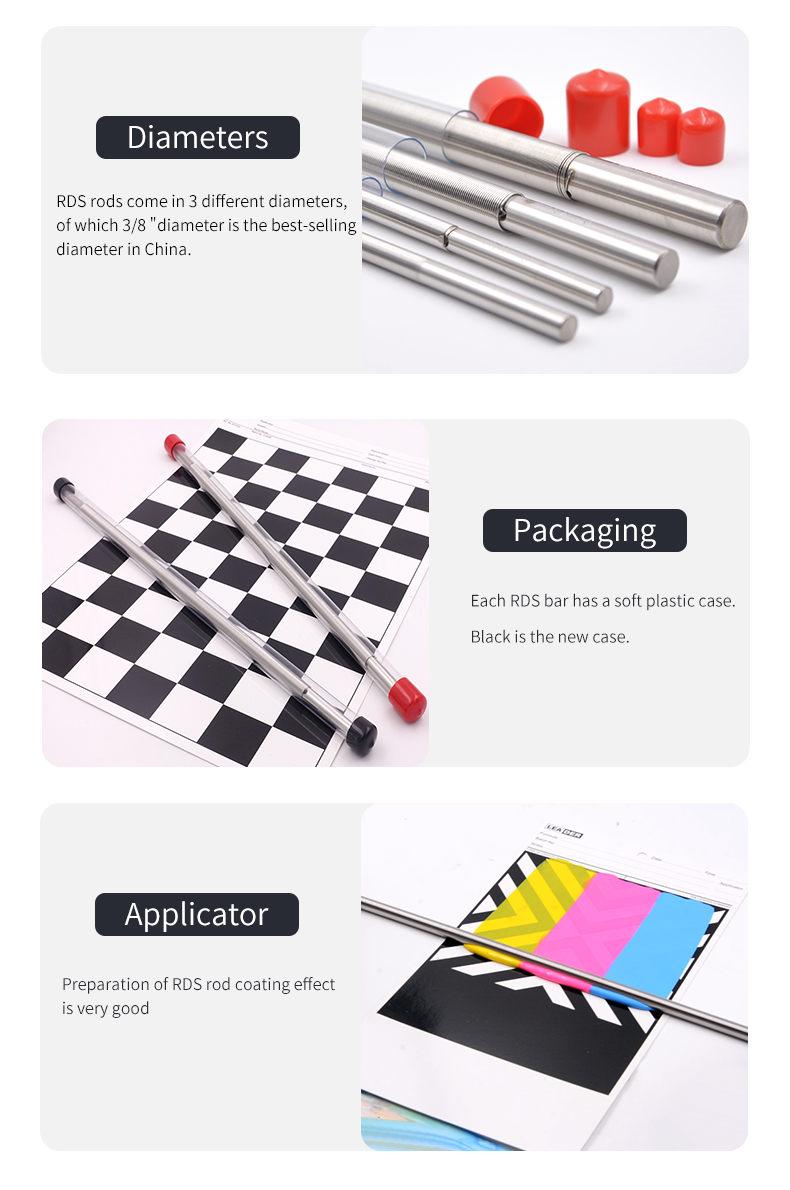

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QWant a coating bar, apply 64 μm liquid film, which rod number?
A RDS28 stick.
QWe are making paper, which brand of wire rod is better, winding?
A Hello, you can take a look at the American RDS wire rod, a hot-selling familiar brand, with a film accuracy of 0.1μm.
QApplicator rod number, the larger the steel wire thicker, right?
A Hello, yes.
QHello, how wide is the RDS 28 #coated wire rod? Do you have a wider one?
A Hello, the total length of the stick is 40cm, and the effective Spreader width is 30cm. If you want a wider Spreader width, it needs to be customized separately.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan this RDS Applicator rod correspond to GB/T13217.7?
A Yes, please refer to the NBchao standards page for specific standards.
QSpreader and swirl/spin film, pull film what is the difference? Which is good?
A Swirl/spin film coating can not cover the surface of the substrate Glass, Coating is thrown out of the filamentous film and uneven; pull film uniformity is good, Glass substrate on both sides, transparency is general, film thickness is not easy to control; Spreader Glass surface uniformly covered, good transparency, Coating less, and can control the film thickness well.
QCan Coating Wire Bar be used to coat anodized aluminum?
A Yes, please select the model according to your Spreader wet film.
QDo you have Mayer Rods with steel wire about 20 cm? Do you have pull plates?
A Hello, we currently have several brands of Mayer Rods such as RDS and pushen, with a length of 40 cm (400mm). The length of about 20 cm currently includes Japan's OSP 250mm and domestic (CN) wing 240mm, but both of them use formed processes and are not wired. Thank you for your consultation.
QGravure plate Printing ink generally use a few sticks
A The rods on the mall are suitable for gravure plate Printing ink. The choice of rod number needs to be selected according to the wet film thickness of your Spreader.
