UNITEC NBC-1200H-Ex Portable Combustible Gas Detector 0-10000ppm

The UNITEC NBC-1200H-Ex Combustible Gas Detector is used to detect the concentration of combustible gases using the diffusion Sampling method. The NBC-1200H-Ex has a range of 0-10000ppm.

Unitec NBC-1200H-Ex(0-10000ppm) Gas DetectorSPEC

Unitec NBC-1200H-Ex(0-10000ppm) Gas DetectorDetails

Unitec NBC-1200H-Ex(0-10000ppm) Gas DetectorPacking list

SKU
NB024006
Sampling method
diffusion
Detect gas
EX
EX-range
0-10000ppm
Display unit
PPM, mg/m3 can be switched with one click, and the concentration value is automatically converted by the system
Display
Monochrome dot matrix 128 * 128 LCD graphic display
Backlight
The backlight time can be manually set, and the backlight can be automatically turned on when the alarm is called.
Data storage
100,000 group storage data, storage interval 10-3600 seconds adjustable (optional function)
alarm record
Store 10,000 alarm records, which can be viewed directly on the instrument (optional function)
Power Supply
3.7V rechargeable lithium battery, Battery Capacity 2300mA
Operating Time
200H continuously
Explosion-proof sign
Exia ⅡCT3
Protection level
IP65
Operating temperature
-20~50℃
Environmental humidity
0~90% RH non-condensing
Shell material
ABS + leather case
Dimension
131*83*35mm
Machine Weight
200G (without Accessories)
NBC-1200H-Ex(0-10000ppm)
Gas Detector

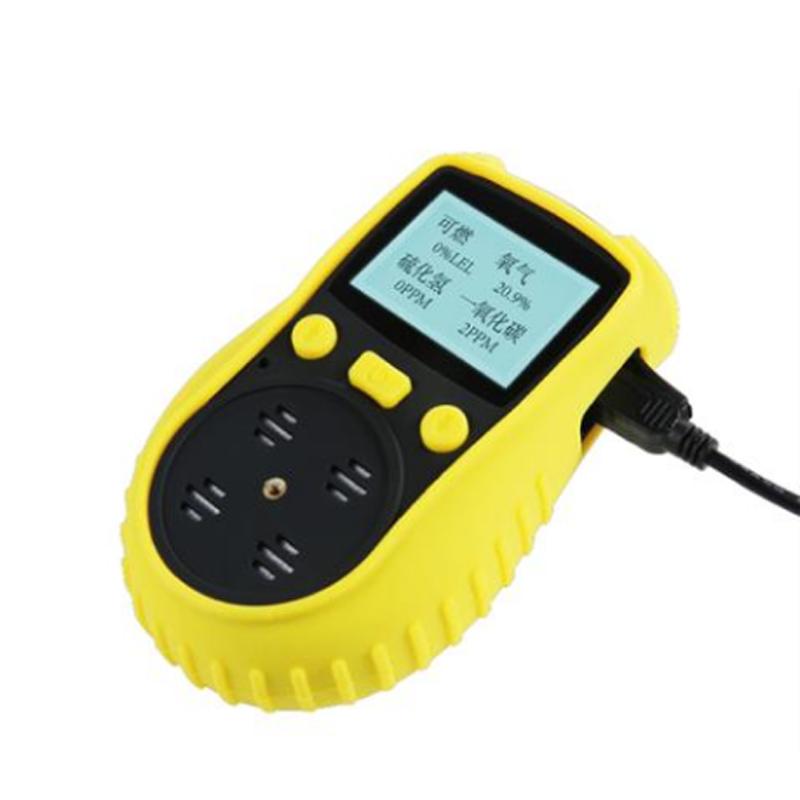

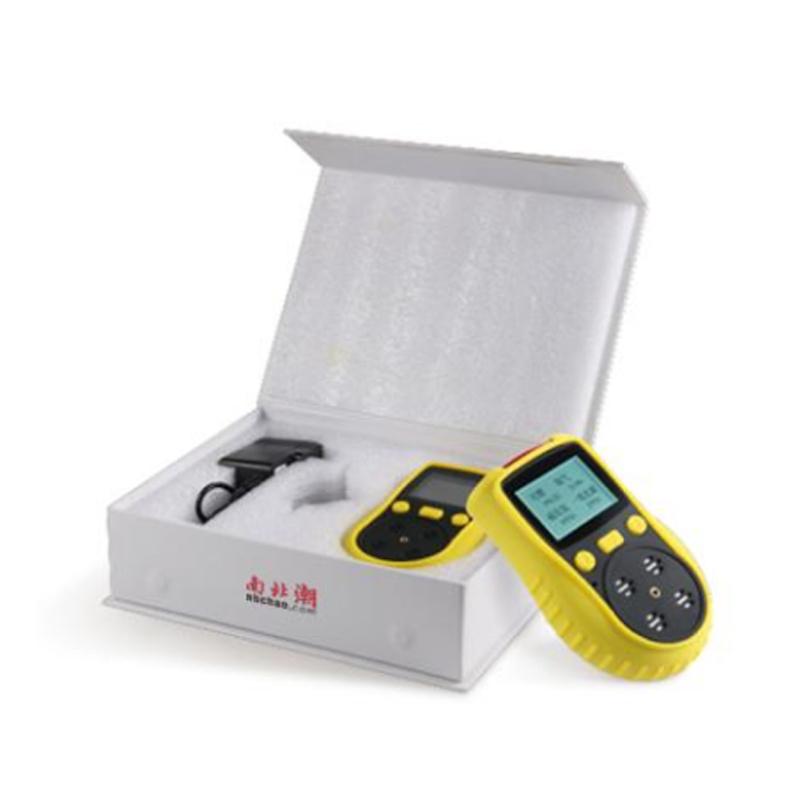

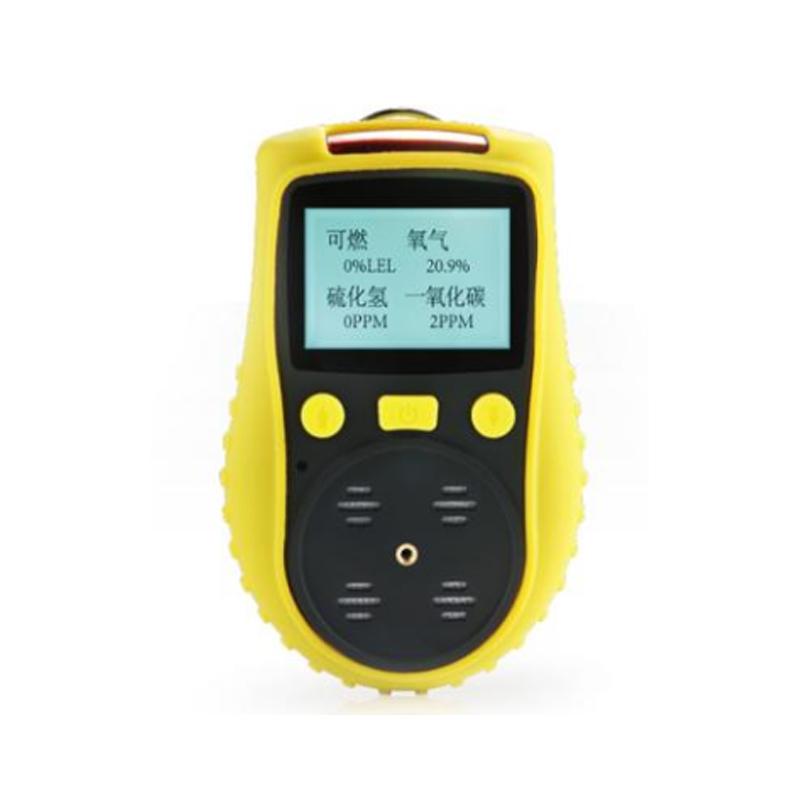

UNITEC NBC-1200H-Ex Portable Combustible Gas Detector 0-10000ppm Picture

Introduction

This series of Gas Detectors is a portable gas detection alarm that can be flexibly configured with a single gas or multiple gas sensors; It can be equipped with up to foursensors to detect four gas concentrations simultaneously; It has a high-definition LCD dot matrix display screen, Chinese and English operation interface, sound, light, vibration three-level soundLight alarm prompt, the instrument has its own alarm recording function, which can store 10,000 alarm records. Whether it's a sensor or a circuit chip used in an instrument, eachAll of them come from the original imported brand, from the selection, to the test, to the finished product, have undergone a strict audit process, the instrument has a fast response speed, measurementWith the advantages of high precision, good stability and repeatability, the performance of the whole machine is at the professional level in CHINA. The shell of the instrument is made of high-strength engineering materials, which has an ingenious exteriorThe shape design and dazzling color palette are sure to redefine the way gas concentrations are detected.

NBC1200 series Gas Detectors

Features

Adopt the world's best imported high-precision sensors

Simultaneous detection of any four gases (4-in-1 sensor required)

LCD dot matrix display technology, support Chinese and English display interface

The gas concentration unit PPM, mg/m3 can be switched between displays at the touch of a button

You can check the battery Voltage and battery level percentage with one click

One-click factory reset function, which can avoid the trouble of misoperation

Ultra-high buzzer alarm sound, sound, light, vibration triple alarm

With 10,000 alarm records, you can view the alarm history on the instrument

The large-capacity lithium polymer rechargeable battery can ensure the continuous operation of the instrument for a long time

The main machine is made of high-strength special engineering plastic and soft outer rubber, which is durable, comfortable to feel, and anti-static
