CHNSPEC CS-810 Colorimeter Color measurement for Glass liquids Platinum cobalt, Gardner chroma

CS-810

Colorimeter

Glass, Liquid Color measurement, Transmittance Measurement range of 0~200%, support platinum cobalt, Gardner index - liquid yellow degree characterization, etc. High performance spectrometer for measurement of liquid transmittance, Absorbance, concentration, chroma and other parameters.

product description

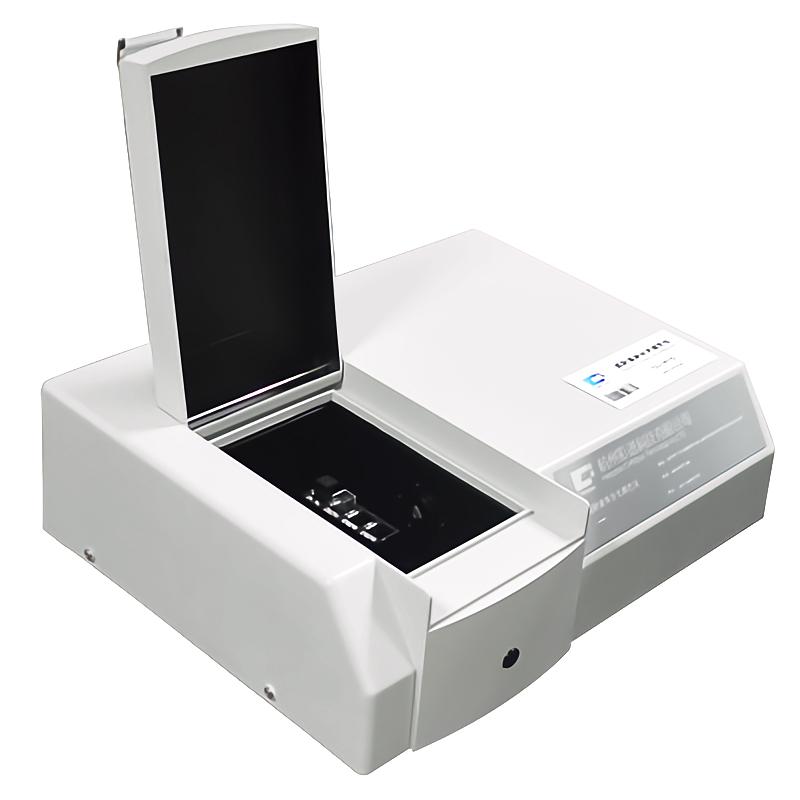

Color spectrum CS-810 Spectrophotometer is a desktop transmission Spectrophotometer , it adopts dual optical path sensing array sensor, accurate and stable in color sensing, and has a high resolution of 0.0001. CS-810 Spectrophotometer is used to measure parameters such as liquid pass rate, absorbance and concentration chromaticity. It is very suitable for glass and liquid color measurement.

CS-810 Spectrophotometer adopts D/0 measurement structure, adopts ultraviolet enhanced silicon photodiode, integrates full-band light source, single grating optical path spectroscopic system, ETC real-time calibration and other technologies, so that the standard deviation of transmittance is within 0.08%. , Chromaticity value: △E*ab 0.015. ,

Features

1) D/0 lighting geometric conditions, as shown in the figure below.

2) Diode: UV-enhanced silicon photodiode. The measurement range of transmittance is increased from 0 to 200%.

3) The degree of yellowness is expressed by platinum-cobalt and Gardner index.

4) CS-810 Spectrophotometer is equipped with color management software, which can monitor, manage and analyze the measured data.

Cost-effective advantage

▪ CS-810 Spectrophotometer Among them, the ETC real-time calibration technology (Every Test Calibration) means that the instrument will calibrate the system hardware and software every time it is measured. This technology fundamentally solves the long-term measurement stability and data drift problems of the CS-810 Spectrophotometer for color measurement . CHNSpec Technology has a number of national patents on this technology.

▪ In addition to measuring liquid transmittance, CS-810 Spectrophotometer also includes APHA/PtCo (APHA/Platinum Cobalt) and Gardner (Gardner Index) for products such as resins, solvents, acids, perfumes and varnishes Colorimetric scale; Saybolt colorimetric scale for gasoline, white oil, kerosene, lubricating oil and paraffin oil measurements. Eliminates the subjectivity of visual colorimetry, providing greater sensitivity and repeatability.

▪ CS-810 Spectrophotometer can be used by connecting PC and color management software, which is convenient for enterprise quality monitoring and color data management. It can digitize the user's color management, compare color differences, generate test reports, provide a variety of color space measurement data, and customize the customer's color management work. Connect a printer to print measurement data in real time.

Features

▪ CS-810 Spectrophotometer adopts the internationally accepted D/8 (diffuse illumination of integrating sphere, 8°observation angle) SCI/SCE compatible illumination observation conditions.

▪ Using CLEDs light source - full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of white LED spectrum in specific bands, and ensures the measurement speed and accuracy of the measurement results of the CS- 810 Spectrophotometer sex.

▪ ETC real-time calibration technology (Every Test Calibration), a standard whiteboard is set inside the optical system, and it has reliable accuracy and repeatability in each test.

▪ Adopting the innovative single-grating and double-light-path spectroscopic system-SCS optical engine, the measurement repeatability index is high and accurate measurement is ensured.

▪ UV-enhanced silicon photodiodes are used to measure the content of fluorescent substances in liquids, and the transmittance measurement range is extended from 0-100% to 0-200%.

Pictures

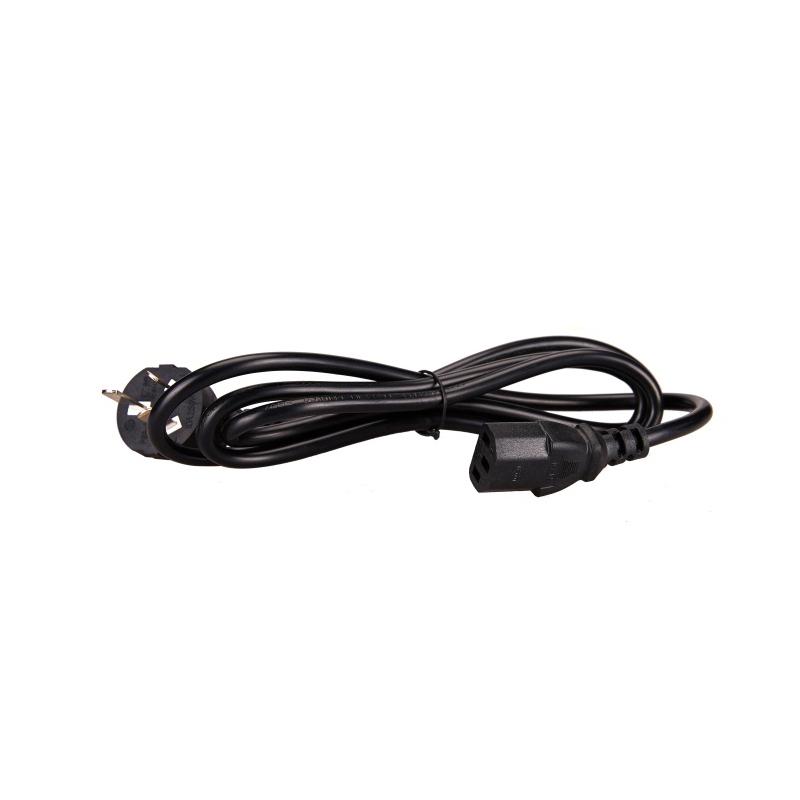

Packing list：Host x1, power cord x1, data cable x1, black correction cylinder x1, Colorimetric dish x1 (Color management software and driver software need to be sufficient)

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
