3NH NH310 Colorimeter 8mm /4mm double aperture, suitable for plastic, Coating, printing, automotive, Spinning & weaving, food, etc
SE8Mm/4mm dual aperture; camera viewing and positioning function, there are D65 and D50A two Light sources to choose from; automatic whiteboard calibration when turned on; extended diameter measurement concave part; configuration rechargeable high-capacity lithium-ion battery; optional powder test box/multi-functional test assembly measurement liquid powder.
Price: Please contact customer service
Model：
NH310
Similar products
3NH NH310 ColorimeterSPEC
3NH NH310 ColorimeterDetails
3NH NH310 ColorimeterPacking list
- SKU
- NB000242
- Lighting method
- 8°/d
- lighting source
- LED light source
- sensor
- Silicon photodiode
- Measurement caliber
- F8mm / F4mm
- Color space
- CIE LAB, XYZ, LCh, CIE RGBCIE LUV
- Color difference formula
- ΔE*ab,ΔE(h),ΔE*uv，ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
- Other chromaticity indicators
- Yellowness, whiteness, lightfastmess, color fastness
- Viewing Angle
- CIE 10 °
- Measurement light source
- D65,A,D50
- display mode
- Chromatic value, color difference value/graph, pass/fail result, Color bias
- Measurement time
- 1.5s
- Sexual repeability
- Φ8mm / ΔE * from 0.06<--sep--0/>
- Inter-station difference
- ΔE * from < 0.4
- Dimensions
- 205*70*100mm
- Weight
- About 400g (including battery)
- Battery life
- Rechargeable Li-Ion Battery 3.7V @3200mAh
- Lighting source life
- 5 years more than 1.60 million measurements
- Display
- TFT True Color 2.8inch @(16:9)
- Data Interface
- USB
- Positioning method
- Light spot positioning, camera positioning
- Data storage
- 100 master standards, 20,000 samples
- Operating conditions
- 0~40℃（32~104°F）
- Storage environment
- -20~50℃
- PC software
- CQCS3 high-end quality management software
- Optional accessories
- Micro printer, powder test box, multifunctional test kit, Φ8 extended measurement caliber
NH310
Colorimeter
8Mm/4mm dual aperture; camera viewing and positioning function, there are D65 and D50A two Light sources to choose from; automatic whiteboard calibration when turned on; extended diameter measurement concave part; configuration rechargeable high-capacity lithium-ion battery; optional powder test box/multi-functional test assembly measurement liquid powder.
3nh/3nh Colorimeter NH310 is a portable Colorimeter, which is designed and developed by combining the advantages of many traditional imported products. It has a double aperture of 8mm/4mm and can switch between different measurement apertures to apply to different color difference measurement occasions. . The Colorimeter NH310 is operated by buttons, and the measurement data is displayed on the LCD. It uses high-quality LED blue light excitation light source devices, and there are two light sources, D65 and D50A, which have good accuracy in color measurement. and reliability.
Patent guarantee of NH310 Colorimeter
Patented technology: camera positioning
Patented technology: automatic whiteboard verification at startup
Patented technology: extended caliber to measure concave parts

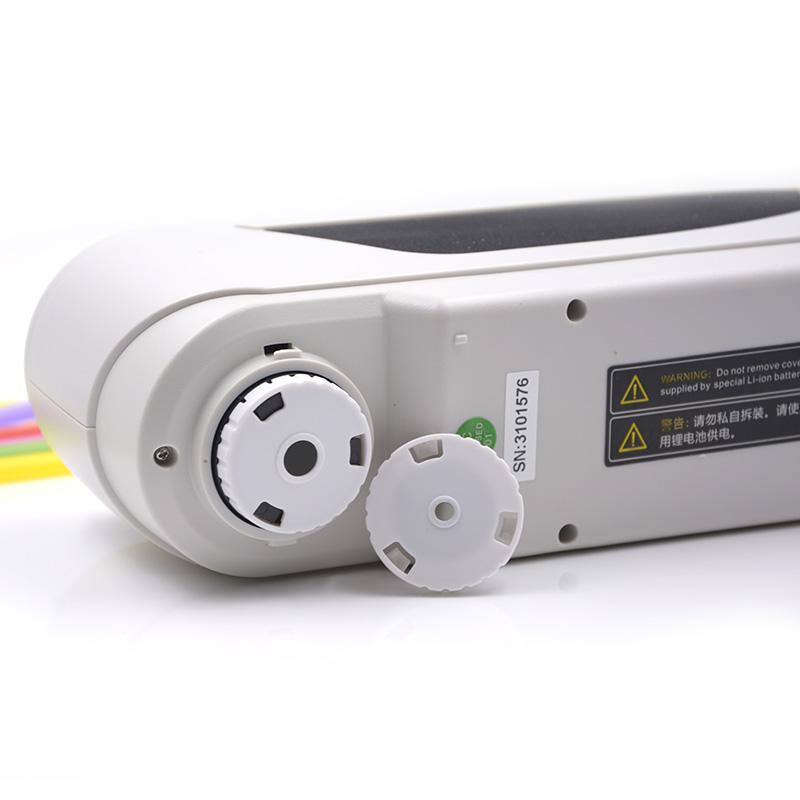

Dual measuring aperture: switchable between 8 mm and 4 mm
Equipped with rechargeable high-capacity lithium-ion battery

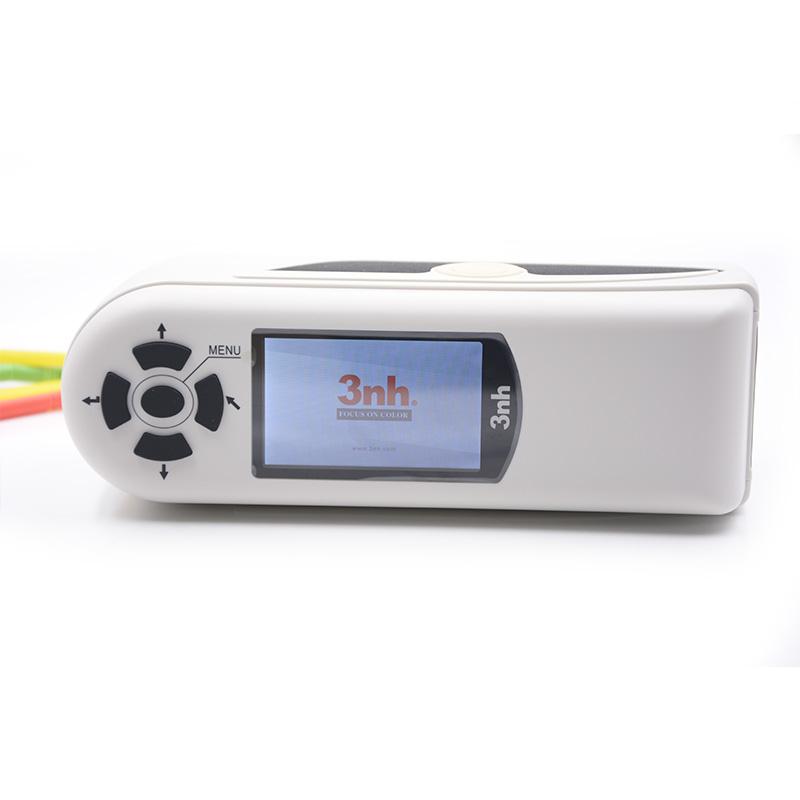

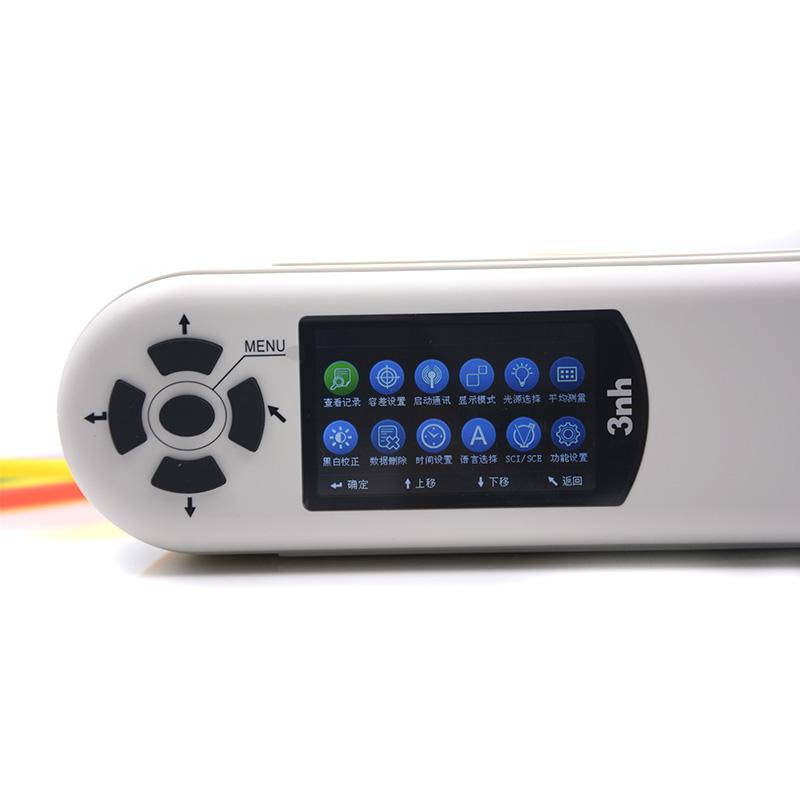

Operation interface
Pictures
Application
Applications of NH310 Colorimeter: plastics, coatings, inks, printing, automobiles, textiles, food, pharmaceuticals and other industries.
Trusted Authentication Certificate
Certificate of South CHINA National Metrology and Testing Center/Guangdong Provincial Institute of Metrology;
CHINA Institute of Metrology Appraisal Certificate;
CE certification
FAQ
QThis handheld color difference meter, the position marked 4mm is 4mm diameter can be measured?
A
It needs to be larger than this caliber.
QIs the meat color reader for detecting chicken suitable?
A
suitable
QWhat is the viewing angle of the NH310 color reader?
A
Hello, CIE10 ° Standard Observer.
QIs there a color reader who can test ropes like gift bags?
A
Hello, Sanenchi's NH310 color reader is a 4mm measurement diameter, but you need to use a wire reel to circle the wire through a constant tension before testing, the data is relatively stable. But confirm whether the measurement port can cover the rope.
QIs it suitable for testing the color difference of barite powder?
A
Hello, yes, but you need to buy another multi-functional test component to support the test.
QThis color reader can be applied to GB/T15608?
A
OK
QWhat is the use of NH310's manual black and white board and automatic black and white board?
A
When turning on the NH310 for the first time, be sure to perform manual black and white board correction;
After turning on the NH310, automatic black and white board correction will be performed, and manual black and white board correction is not required;
It is recommended to perform manual black and white board correction at least once a week, or black and white board correction when the NH310 measurement data is inaccurate.
QHow to change the measurement caliber of NH310?
A
The NH310 has three measurement diameters: Should 8mm (standard), Should 4mm (standard), and lengthened Should 8mm (optional). The replacement steps are as follows:
Turn it on.
Remove the original measurement caliber and install the required measurement caliber;
Select "Miscellaneous Settings - > measurement caliber selection" in the main menu of the instrument, and select the corresponding measurement caliber;
After selecting the measurement caliber, the instrument appears "black and white plate correction interface", and the black and white plate correction must be carried out;
The replacement is complete.
QHow to Color Printing ink with color reader?
A
Use the color reader to measure the Color on the sample, and correctly distinguish whether the original color is primary color, intercolor, or polychrome. If it is intercolor or polychrome, you need to distinguish the ratio of main color and auxiliary color. Be sure to debug the sample according to the shade indicated by the original, and see how much the Color difference is compared with the original before debugging. Special attention is paid to using the color reader for multiple times to test the sexual repeability, which can get more accurate data
QDoes this color reader have two calibers?
A
Hello, yes, 8mm and 4mm.
