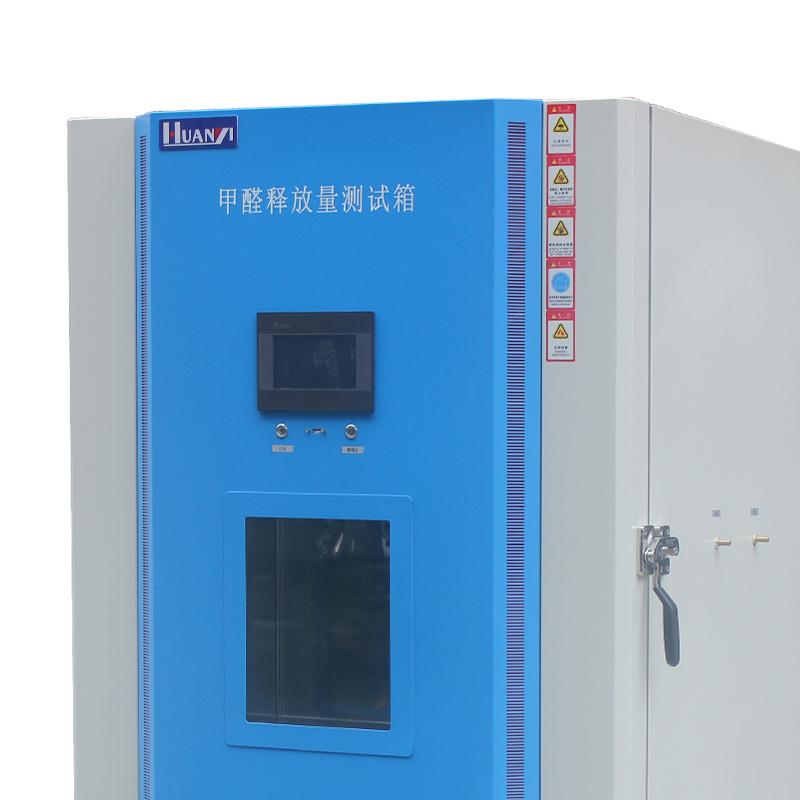

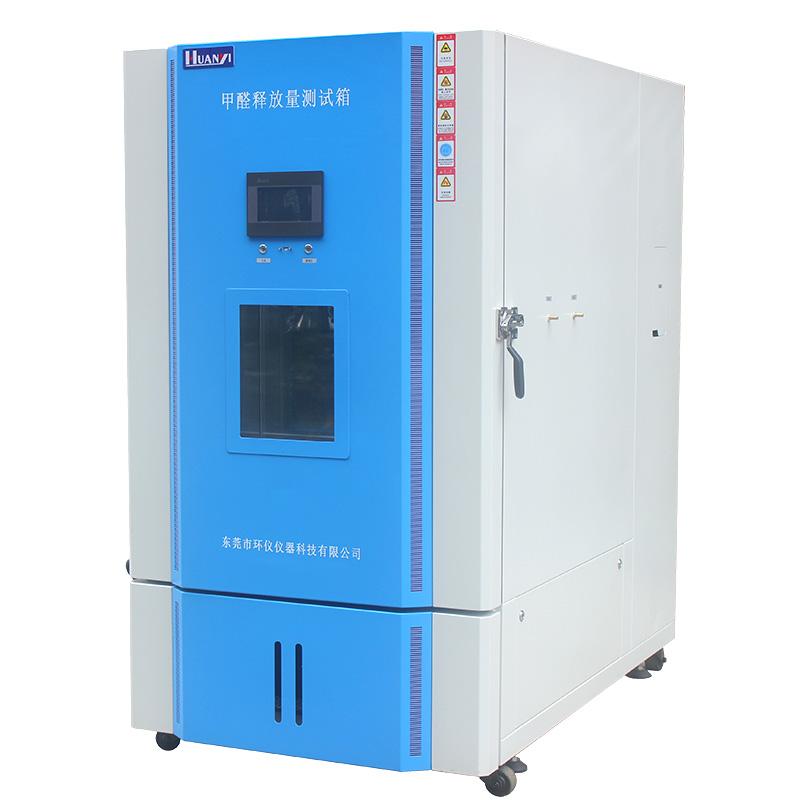

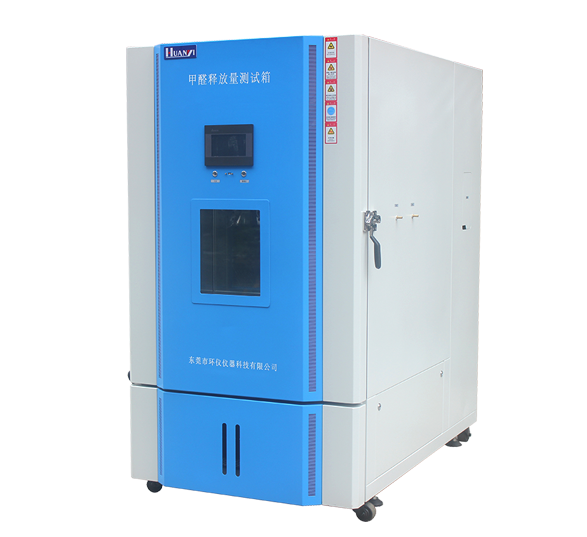

HUANGYI HYQ-1000L 1 cubic meter formaldehyde release environment Test Chamber

HYQ-1000L

1 cubic meter formaldehyde release environment Test Chamber

Introduction

This machine is suitable for the determination of formaldehyde emission of various wood-based panels, composite wood flooring and other interior decoration materials, the constant temperature and humidity balance treatment of wood or wood-based panels, and the detection of volatile harmful gases in other building materials.

Features

1. The touch screen is used as the dialogue interface for personnel to operate the equipment, which is intuitive and convenient. It can monitor and record various indicators in the cabin in real time. Equipped with special control software, in addition to the touch screen function, it can realize system control, program setting and historical data playback, fault record, alarm setting and other functions.

2. The equipment adopts industrial modules and imported programmable controllers, which have good operation stability and reliability, which can ensure long-term trouble-free operation of the equipment, improve the service life of the equipment, and reduce the operating cost of the equipment. It also has fault self-checking and prompting functions, which is convenient for users to understand the operation of the equipment, and the maintenance is simple and convenient.

3. The control program and operation interface are optimized and designed according to the relevant test standards, and the operation is simple and convenient. The heat exchanger is professional in technology: high heat exchange efficiency and small temperature gradient.

4. Cold and hot confrontation thermostat Water Tank: temperature control is stable.

5. Professional humidity temperature and humidity sensor: the sensor has high precision and stable performance.

6. Excellent refrigerator: stable operation and long service life.

7. Protection device: There are high-low temperature alarm protection measures and high-low water level alarms

8. Protection measures: The compressor also has overheating, overcurrent and overpressure protection measures, and the whole machine is safe and reliable in operation.

9. Stainless steel inner box: the inner cavity of the constant temperature box is made of mirror stainless steel, the surface is smooth and does not condense, does not absorb formaldehyde, and ensures the detection accuracy; the constant temperature box is made of hard foam material, and the door is made of silicone rubber sealing strip, which has good heat preservation performance and sealing performance. The box is equipped with a forced air circulation device (forming a circulating air flow) to ensure that the temperature and humidity in the box are balanced and consistent.

10. Ultra-low background concentration control: background concentration control is our advantage, the absolute value is low, the retention time is long, long-term use does not rebound, and the maintenance cost is low

11. Effective dry-humidity ratio humidity control method: high control precision, short balance time, half of the conventional time, and low energy consumption.

12. The product failure rate is extremely low, and the average initial maintenance time interval is greater than 3 years

13. Environmental protection and energy saving: The installed power is about 60% to 80% of the industry average level. Thyristors are commonly used, and inverters are used to save energy and reduce consumption, and optimize the design.

Applicable standard

The technical performance index of this product complies with the national standard -

GB 18580-2017 "Indoor Decoration Materials - Formaldehyde Release Limits in Wood-based Panels and Their Products"

GB/T11718-2009 "Medium Density Fiberboard"

GB5849-2016 "Blockboard"

GB/T9846.1～9846.8-2015 "Plywood"

GB/T15102-2006 "Impregnated film paper veneer wood-based panels"

plan

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
