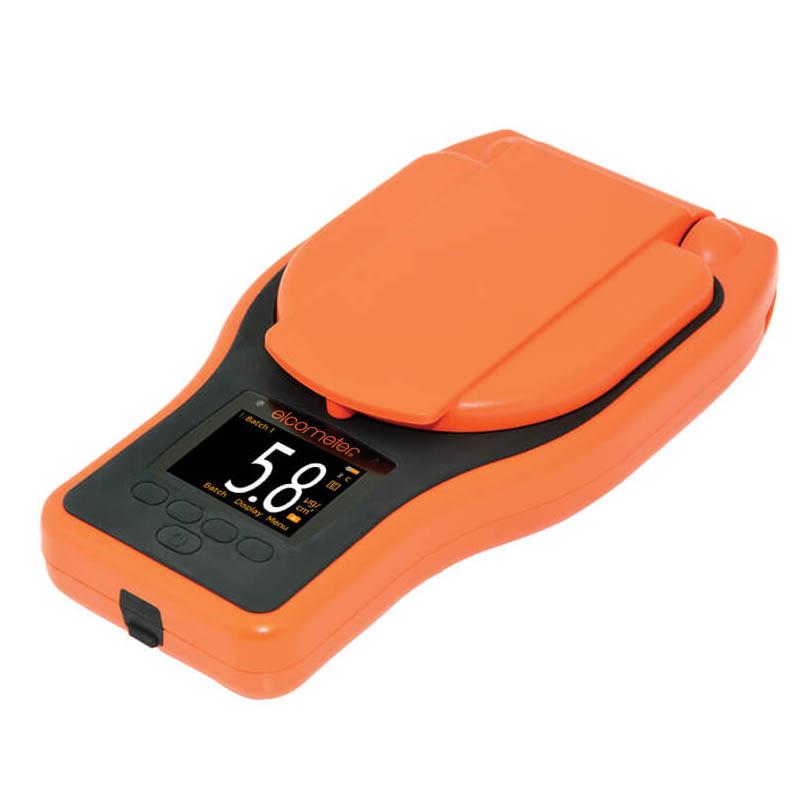

Elcometer 130 Soluble Salt Probe, Advanced

E130-T (Advanced)

Soluble salt Detector

The Elcometer 130 Soluble Salt Profiler provides fast, accurate measurement of soluble salt levels and concentrations – over 4 times faster than other Bresle equivalent methods.

The new Elcometer 130 Soluble Salt Profiler allows you to complete a Bresle equivalent test in as little as two minutes.

The multi-point conductivity sensor enables the Elcometer 130 SSP to accurately display salt concentrations, show the exact location of contamination and produce a full colour salt density map in 2D or 3D.

"Four Bresles in 21/2 minutes are quite readings"

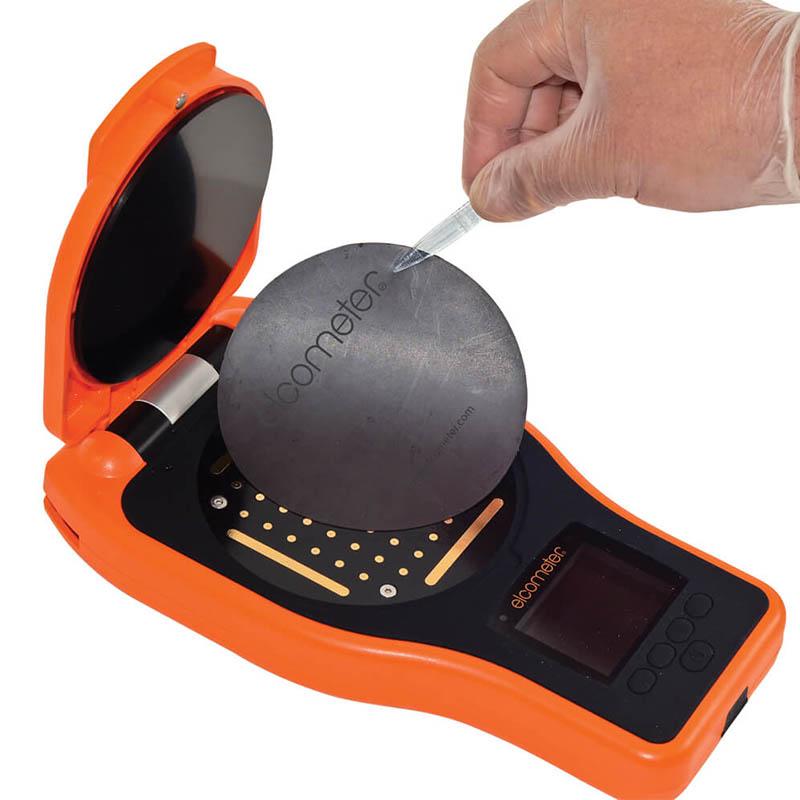

Each filter paper is four Bresle sizes - the Elcometer 130 Soluble Salt Profiler not only displays personalized readings, but also provides a comparable reading of 4 Bresles in just over two minutes.

View the Elcometer 130 SSP Bresle Patch Equivalency Report

"The new Elcometer 130 SSP doesn't just measure soluble salt levels"

In addition to soluble salt content (cleanliness) or electrical conductivity, the Elcometer 130 SSP performs a detailed analysis of the test area – providing an accurate salt density map to pinpoint user-defined limits outside of highly contaminated areas.

"Accurate in all environments"

This new, easy-to-use Elcometer 130 SSP features automatic temperature compensation to ensure accuracy in all climatic conditions. Impure water counteracts the need for accurate and repeatable readings.

"Every instrument is designed to the end"

Rugged, durable and waterproof, the new Elcometer 130 SSP comes with a 2 year manufacturer's warranty; Peace of mind.

"Generate instant reports on your computer, Android ™ or iOS mobile device"

The Elcometer 130 SSP wirelessly transmits readings, statistics and batches via Bluetooth® or via USB, straight into the inspection app or into ElcoMaster®, Elcometer's mobile app, at your desk, or using your mobile phone, in the field, to generate reports instantly.

What you do with the data you collect is just as important as taking readings.

"Calibration Verification - Peace of Mind"

 Calibration verification bricks can be used to verify the accuracy of the instrument in the field, while the verification date will be recorded in the report.

Calibration verification bricks are available to verify the accuracy of the instrument Click on the Accessories tab for more information.

Key features of the Elcometer 130 Soluble Salt Profiler:

• Measurement Mode Range:

• Cleanliness: When measuring soluble salts, two measurement options are available – Bresle Method Equivalent or Elcometer 130 Equivalent

• Conductivity: Centrification is used to measure ionic contaminants, sometimes referred to as total dissolved solids - TDS, in solution

• The multi-point conductivity sensor allows the trend in conductivity to be displayed as a density map

• Automatic temperature compensation ensures accurate results

• The large color LCD screen displays readings in μg/cm², ppm, μS/cm, mS/cm, % salinity or mg/m².

• Store 3,500 readings in a 1,000 alphanumeric data group

• Non-oxide gold-plated contacts guarantee lifetime performance

• Reports are generated instantly via USB or Bluetooth® data transfer to ElcoMaster®

Display mode

1) Large single readings

Displays the reading value for the entire sample

2) Four Bresle patch equivalent readings

This measurement area is divided into four (Bresle plaque-sized quadrants) and four Bresle patches or Elcometer 130 equivalent readings are displayed simultaneously.

3) Pass/Fail to user-defined limits

Provides a visual indication of salt contamination. The limit of soluble salt levels is set above, the area is red and the area below the limit is white. The measurement bars on the left side of the pass/fail graph show the limits (above the bar) and the defined limits above the percentage test area (below the bar). The bars are also a visual indication of the pass/fail percentage. The highest (Hi), lowest (Lo) and average (X) readings are shown to the right for the current measurement.

4) 2D salt density map with high/low readings

The level of soluble salts is indicated using a green and red profile system; Green is for very low salt concentrations or unpolluted areas; Yellow is the concentration area of medium salt; Red is the area where the salt pollution level exceeds the specified scale range.

5) 3D Salt Density Map and Peak Salt Concentration (Hi)

Provides a visual indication of the density of the test area contaminated by salt.

Packing list：ELCOMETER 130 Salt contamination meter x1, high purity test paper x100, 250ml (8.5fl oz) pure water x1, PVC storage bag x20, degradation gloves x1, Sensors wipe cloth x1, 3ml (0.1fl oz) syringe x3, plastic forceps x2, AA battery x4, shoulder strap x1, Encasement box x1, test certificate x1, operation manual x1, USB cable (equipped with T type) x1, ElcoMaster ® software (equipped with T type) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
