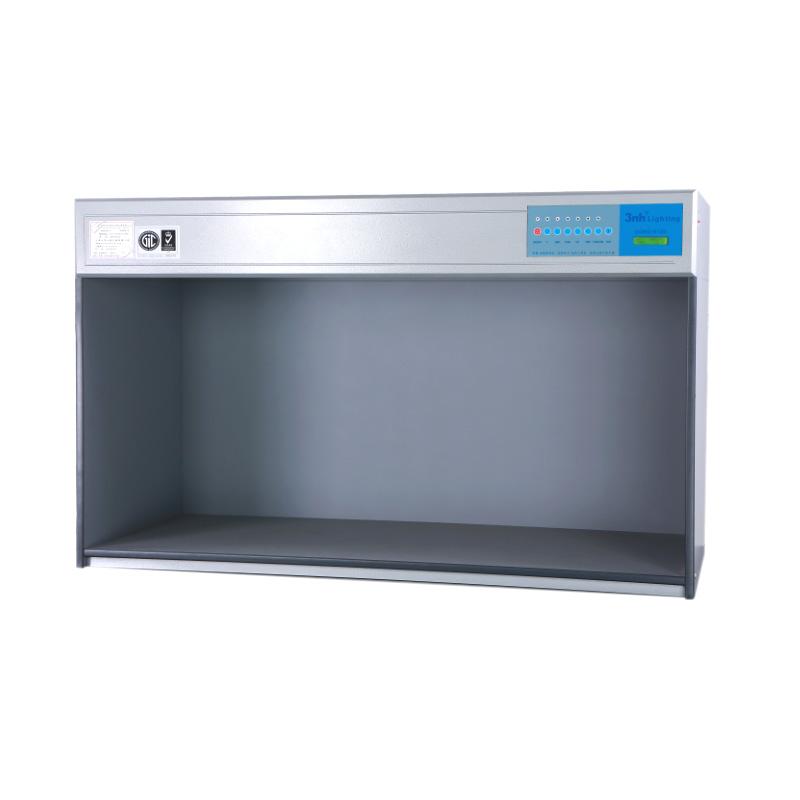

DOHO DOHO H120 Standard light source color light box

H120 extra large

Color Assessment Cabinet

Benefits:

1. Display the use time, name and number of switches of each light source

2. The light source is automatically switched, with the function of metamerism

3. No need to preheat and no flashing, which can ensure fast and reliable color evaluation

4. Low energy consumption, no heat (no heat dissipation), high luminous efficiency

5. Configure more complete British and American standard common light sources

6. The name of the light source can be changed, and it is more convenient to add the light source

7. The volume and inner frame space are large, which is convenient for observing large items

Applications

When detecting the color of the product or the color matching of the production process, different light sources, illumination, color temperature and environment will make the naked eye have an wrong judgment on the color.

Application industry

H120 six-light source standard light source box is suitable for color management fields in textile, toys, printing and dyeing, plastics, paints, inks, printing, pigments, chemicals, ceramics, shoes, leather, hardware, food, cosmetics and other industries, and is used to accurately calibrate the color deviation of goods.

Description of the light source

D65 International Standard Artificial Daylight

Color Temperature: 6500K Power: 20W

TL84 European, Japanese, Chinese store light source

Color temperature: 4000K Power: 18W

CWF Cool White Fluorescent

Color Temperature: 4150K Power: 20W

F Family hotel lamp, colorimetric reference light source

Color Temperature: 2700K Power: 40W

Ultraviolet

Wavelength: 365nm Power: 20W

U30 Warm White Fluorescent

Color Temperature: 3000K Power: 20W (30U)

A American-style kitchen window spotlight, colorimetric reference lamp

Color Temperature: 2856K Power: 60W

TL83 European Standard Warm White Store Light Source (Warm White)

Color Temperature: 3000K Power: 18W

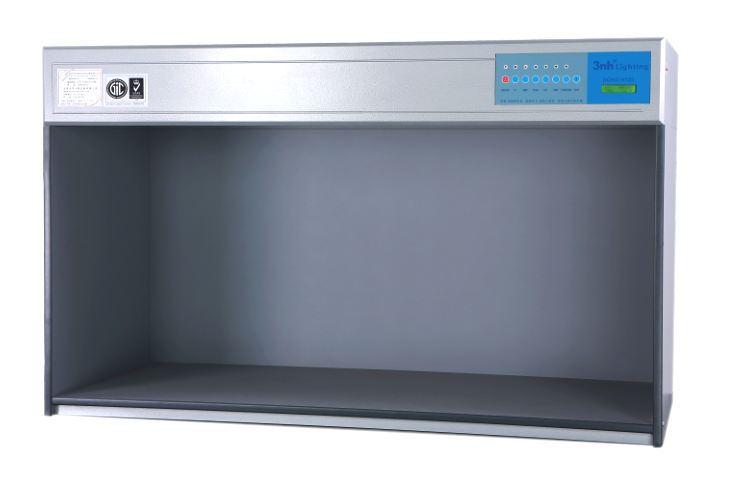

Display diagram

Packing list：Light source (45 degree standard stand, purchased separately) x6, manual x1, certificate of conformity x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
