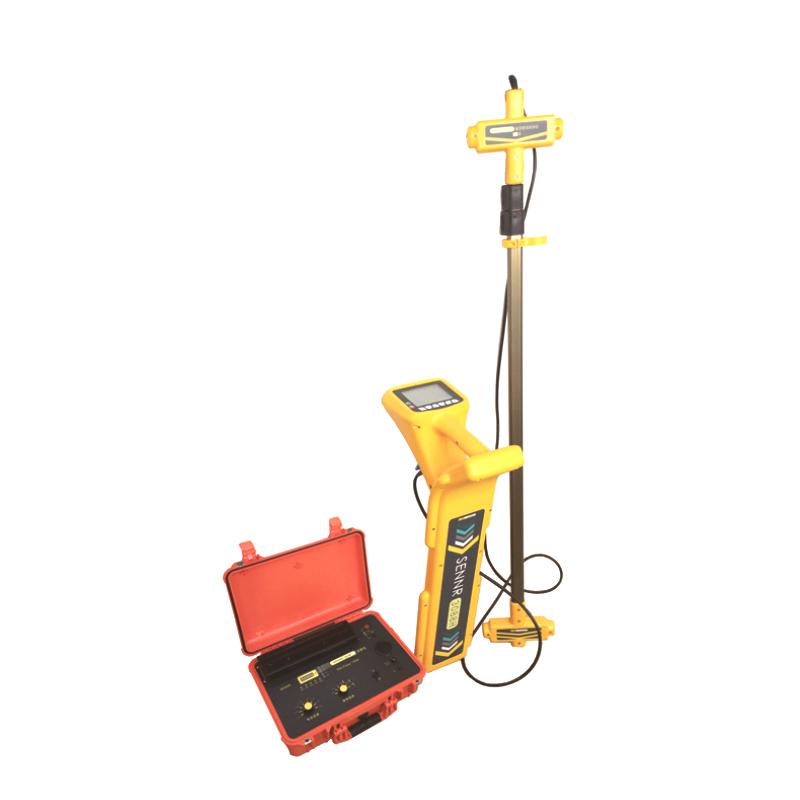

SENNR-3088-A Ultra-Buried Pipeline Detector, Positioning Depth: 25m

SENNR-3088-A

Super buried depth pipeline Detector

Introduction

SENNR series ultra-deep pipeline Detector is a specially developed product for 20-40 meters ultra-deep pipeline detection, filling the international gap. The instrument can detect the ultra-buried deep pipeline under trenchless conditions, realize the quantitative evaluation of the damage of the outer anti-corrosion layer of the ultra-buried deep pipeline, and can accurately locate and measure the pipeline. Inspecting the condition of the protective layer of ultra-deep pipelines and taking necessary measures to extend the service life of pipelines can save a lot of maintenance and transformation funds. It is widely used in the quality evaluation of the outer anti-corrosion layer of ultra-buried deep anti-corrosion pipelines such as oil, natural gas, city gas and tap water.

Features

ULTRA-NARROW BANDPASS 0.2HZ PHASE-LOCKED LOOP DSP DIGITAL FILTER;

High-sensitivity receiver, detection depth and detection distance are greatly improved;

Highly sensitive detection probe, suitable for ultra-deep pipeline anti-corrosion layer detection;

GPS geolocation function, automatic mapping of pipeline direction;

The left and right arrows indicate the location of the pipeline and quickly locate the pipeline;

The front and rear arrows of the damage point of the anti-corrosion layer are indicated for quick positioning;

The dB value indicates the size of the damage point of the anti-corrosion layer;

Professional data analysis software, automatic generation of test reports

Product parameters

SENNR-3088 receiver specifications

Positioning mode: valley mode, peak mode, broad peak mode, peak arrow mode

Bathymetry method: direct reading depth, 80% faymetry, 50% faymetry

Operating frequency: 128Hz, 512Hz, 1kHz

Positioning accuracy: ±2.5% of depth (no interference from adjacent pipelines)

Current accuracy: ±2.5% of actual current (no interference from adjacent pipelines)

Depth accuracy: ±5% of depth (no interference from adjacent pipelines)

Measuring range: 0-40 meters

Current mapping: It can accurately measure the magnitude of various signal currents and the direction of corrosion layer damage

Sensitivity: 10 mA at a depth of 1 m

Data records: pipe location, buried depth, current in pipe, distance between measurement points

Data download: The recorded data can be downloaded to a computer

Battery: Lithium battery, can work continuously for 20 hours

Housing material: ABS engineering plastic

Dimensions: 620x300x150mm

Weight: 2.5Kg

SENNR-3088 transmitter specifications

Frequency selection: 128Hz+8Hz+4Hz, 512Hz+8Hz+4Hz, 1kHz+8Hz+4Hz,

128Hz、512Hz、1kHz

Output current: 100mA, 300mA, 600mA, 1A, 1.5A, 2A, 2.5A, 3A

Output Voltage: 120V max

Output power: 180 watts max

Launch range: up to 30Km

AC power supply: 220V/50Hz AC

DC input: 24V 20AH lithium battery pack

Operating temperature: -20°C- +50°C

Housing material: ABS engineering plastic

Dimensions: 380mmx280mmx180mm

Weight: 8.8Kg

Technical indicators of SENNR-3088 Detector

Reception frequency: LF low frequency

Gain Control: Auto Gain, Range: 0-100dB

Positioning accuracy: ≤5cm

Depth range: ≤40m

Damage positioning: locate the location and direction of the damage point of the anti-corrosion layer

Power supply: 7.4V lithium battery pack

Operating Time: ≥ 20 hours

Weight: 0.6kg

Power supply: 7.4V lithium battery pack

Operating Time: ≥ 20 hours

Weight: 2.5kg

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
