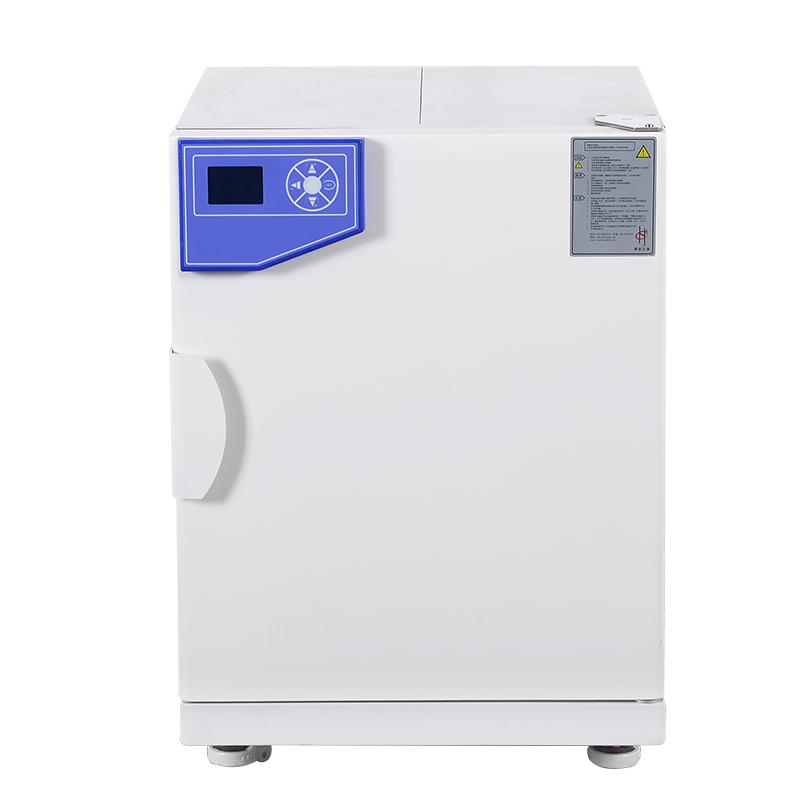

HUITAI DHP-9272N Electric Thermostatic Incubator 270L
SE
DHP-9272N
HuiTai DHP-9272N Electric Thermostatic IncubatorSPEC
HuiTai DHP-9272N Electric Thermostatic IncubatorDetails
HuiTai DHP-9272N Electric Thermostatic IncubatorPacking list
- SKU
- NB024674
- Temperature range
- RT+5~65°C
- Temperature Uniformity
- ±1℃
- Temperature fluctuation
- ±0.2℃
- temperature resolution
- ±1℃
- Liner material
- Mirror stainless steel
- Liner size
- 600*600*750mm
- Volume
- 270L
- Load bracket (standard)
- 2pcs
- Input power
- 700W
- Dimensions
- 735*790*1005mm
Overview
It is the necessary equipment for universities, colleges, biology, agriculture, scientific research and other departments to store strains, biological culture, and conduct scientific research.
Features
Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)
The double-layer door structure has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

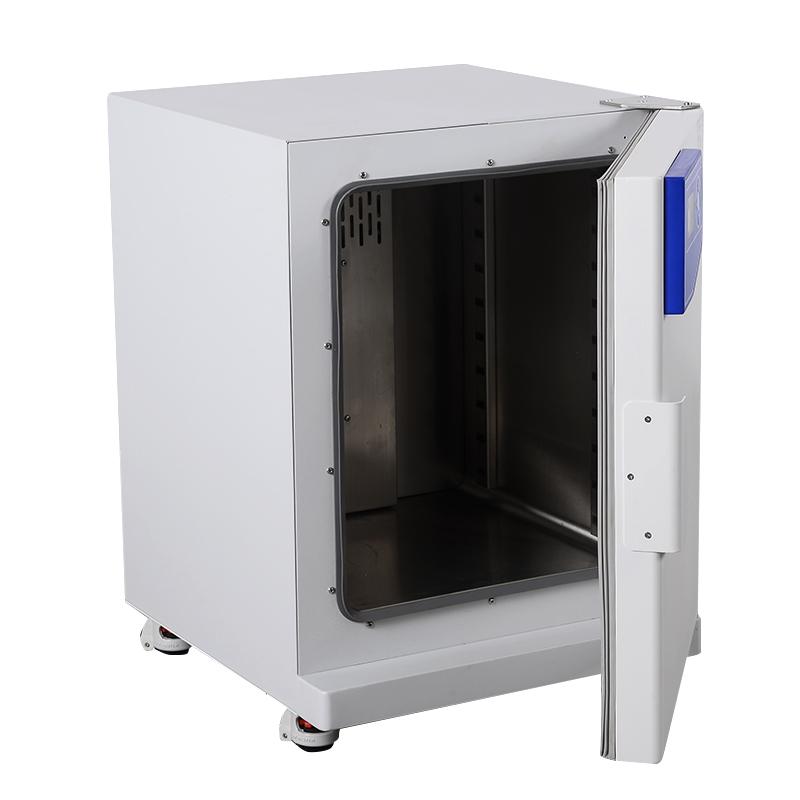

The mirror stainless steel liner is adopted, and the diagonal air duct structure in the box can effectively ensure the temperature uniformity in the box. The semi-circular arc design of the four corners is easy to clean, and the distance between the shelves in the box can be adjusted.
The overall surface of the box is sandblasted, which is not easy to scratch and easy to clean.
Electrothermal film heating method, fast heating speed.

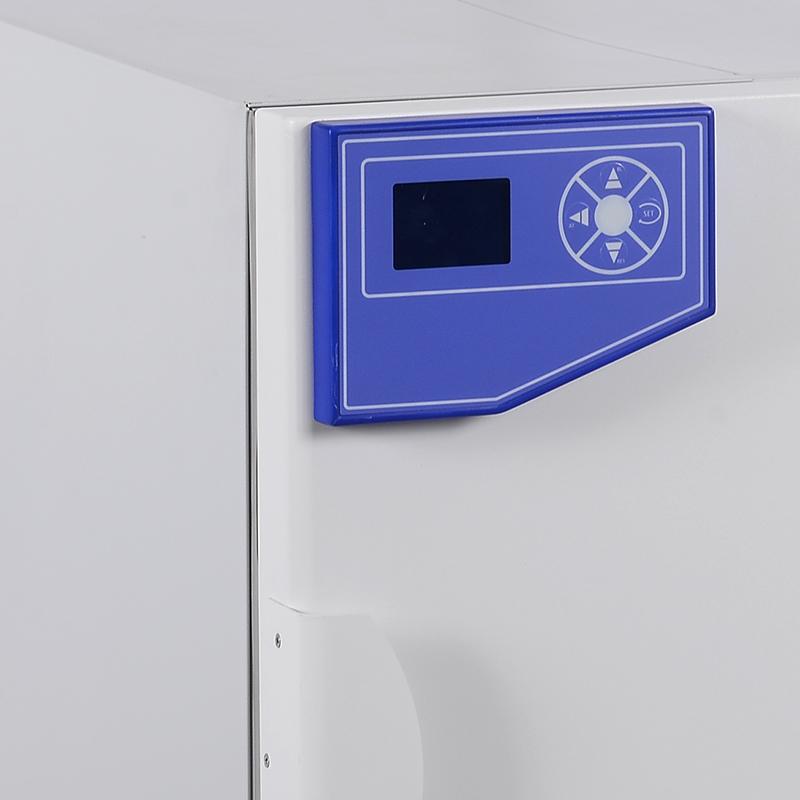

The instrument control of the whole machine is placed in the upper left corner of the door panel, the whole machine is beautiful and generous, saving the space for product placement.
This product is equipped with 4 mobile casters, which is convenient for customers to move the product.
Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)
With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)
Models
| model | input power | Nominal volume |
| DHP-9052N | 250W | 50L |
| DHP-9082N | 350W | 80L |
| DHP-9162N | 550W | 160L |
| DHP-9272N | 700W | 270L |
| Other parameters | ||
| Voltage | AC220V 50HZ | |
| Temperature control range | RT+5~65℃ | |
| Constant temperature fluctuation | ±0.2℃ | |
| temperature uniformity | ±1°C (No load 37°C) | |
| temperature resolution | 0.1°C | |
| Timer Range | 1-9999min | |
| Carrier | 2pcs (standard configuration) | |
| Note: The performance parameters are tested under no-load conditions, without strong magnetism and vibration: ambient temperature 30°C, ambient humidity 50%RH. | ||
Optional
Intelligent program controller
Independent temperature limit alarm system
Embedded printer
RS485 interface and special software
- 1SL 144.4-2008《Calibration method of electro-thermal Incubator》
- 2GB/T 32710.9-2016《Safety requirements for environmental testing and conditioning equipment—Part 9: Electric heating Incubators》
- 3GB/T 16267-2008《Test method of packaging materials - Vapors corrosion inhibiting ability》
- 4GB/T 20623-2006《Emulsions for architectural coatings》
