HUITAI GHP-9160N Incubator 160L
SE
GHP-9160N
HuiTai GHP-9160N Isolated Thermostatic IncubatorSPEC
HuiTai GHP-9160N Isolated Thermostatic IncubatorDetails
HuiTai GHP-9160N Isolated Thermostatic IncubatorPacking list
- SKU
- NB024679
- Temperature range
- RT+5~65°C
- Temperature Uniformity
- ±1℃
- Temperature fluctuation
- ±0.5℃
- temperature resolution
- ±1℃
- Heating method
- water jacket
- Liner material
- Mirror stainless steel
- Liner size
- 500*500*650mm
- Volume
- 160L
- Load bracket (standard)
- 2pcs
- Display
- Large screen LCD display
- Timer
- 1~9999min
- Power
- AC220V 50Hz
- Input power
- 850W
- Dimensions
- 635*690*905mm
Overview
It is suitable for scientific research or production departments such as medical and health, pharmaceutical industry, biochemistry and agricultural science, etc., for constant temperature experiments such as cell culture and fermentation.
Features

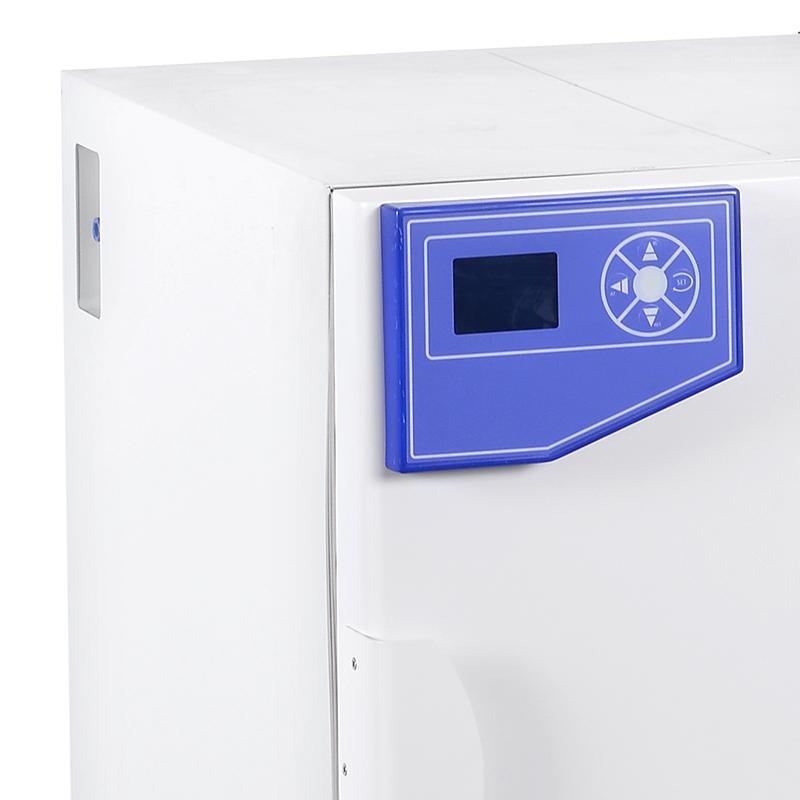

Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)
The self-designed pressure balance air inlet avoids the phenomenon of pumping back caused by adding water too quickly
The double-layer door structure has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.
The diagonal air duct structure in the box can effectively ensure the temperature uniformity in the box.
Water-proof heating method, the temperature is uniform, and it can still maintain a constant temperature for a long time after power off.

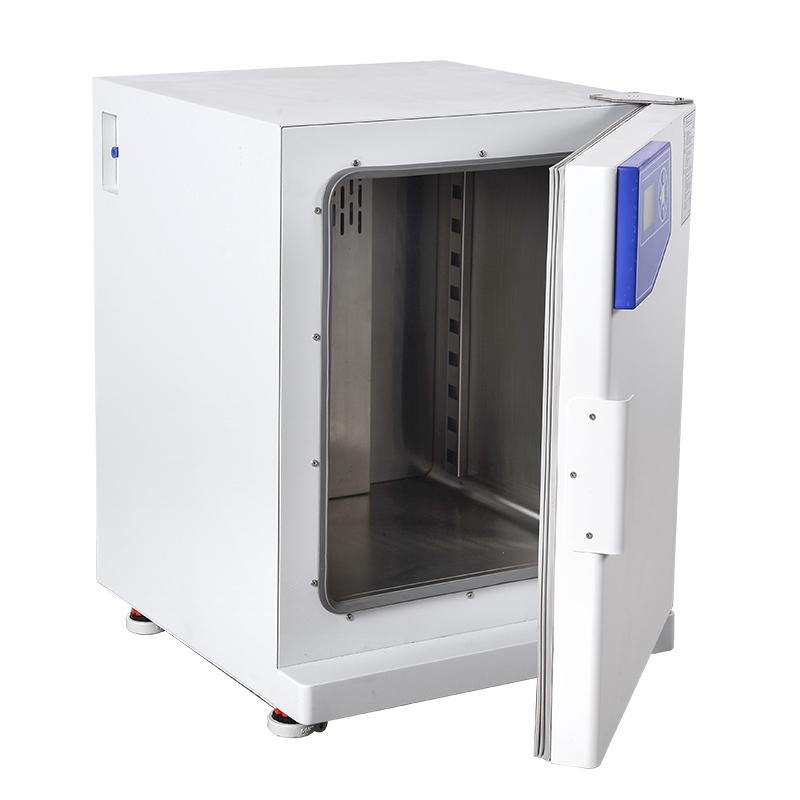

It adopts mirror stainless steel liner, the semi-circular arc design of the four corners is easy to clean, and the distance between the shelves in the box can be adjusted.
The overall surface of the box is sandblasted, which is not easy to scratch and easy to clean.

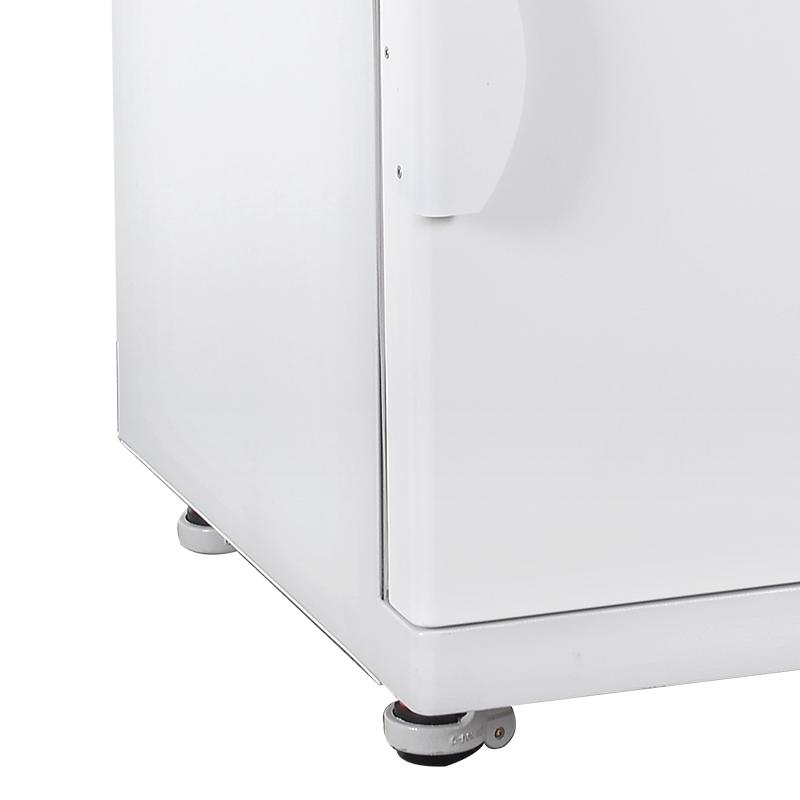

This product is equipped with 4 mobile casters, which is convenient for customers to move the product.
PID control mode, when the temperature in the box exceeds the set value or the water level of the water jacket is too high or too low, an audible and visual alarm will be automatically issued. Low water level stops heating
Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)
With RS485 interface or USB interface, it can be connected to a computer or a printer, and can record the change of temperature parameters. (optional)
Models
| project | GHP-9050N | GHP-9080N | GHP-9160N | GHP-9270N |
| Voltage | AC220V 50HZ | |||
| heating method | Water jacket | |||
| Temperature control range | RT+5~65℃ | |||
| Constant temperature fluctuation | ±0.5℃ | |||
| temperature uniformity | ± 1 ° C ( 37 ° C without load ) | |||
| temperature resolution | 0.1°C | |||
| input power | 450W | 650W | 850W | 1350W |
| Liner size | 345×350×410 | 400×400×500 | 500×500×650 | 600×600×750 |
| Dimensions | 480×545×665 | 535×590×755 | 635×690×905 | 735×790×1005 |
| volume | 50L | 80L | 160L | 270L |
| Carrier (standard) | 2pcs | |||
| Timer Range | 1~9999min | |||
| * Performance parameter test under no-load conditions, no strong magnetism, no vibration: ambient temperature 30°C , ambient humidity 50%RH . | ||||
Optional
Intelligent Program LCD Controller
Independent temperature limit alarm system
Embedded printer
RS485 interface and special software
UV sterilization system
- 1SL 144.4-2008《Calibration method of electro-thermal Incubator》
- 2GB/T 32710.9-2016《Safety requirements for environmental testing and conditioning equipment—Part 9: Electric heating Incubators》
- 3GB/T 16267-2008《Test method of packaging materials - Vapors corrosion inhibiting ability》
- 4GB/T 20623-2006《Emulsions for architectural coatings》
