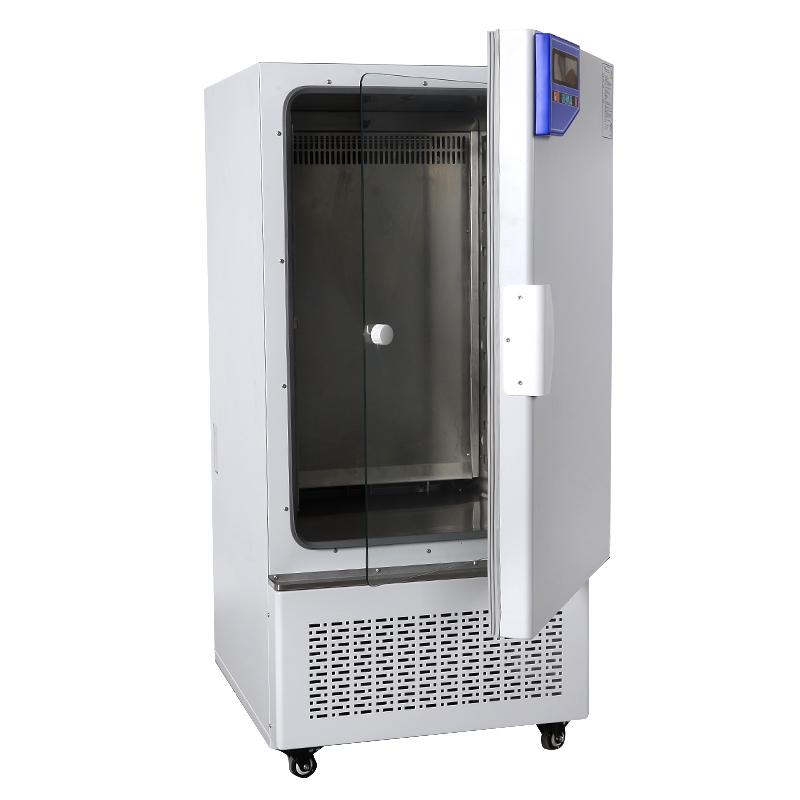

HUITAI HGZ-800N light chamber LED vertical Light source Ten-level dimming 800L volume

HGZ-800N

light chamber

With 10-level adjustable LED Vertical Light source and 0~ 25000Lx light intensity, support 99-cycle programmed control. Mirror stainless steel liner and tube flow circulating fan are used to ensure Temperature uniformity +/- 1 ℃ fluctuation, and 25mm test hole is equipped on the left for easy monitoring.

Overview

It is widely used in microbial tissue cell culture, seed germination, seedling breeding test, plant cultivation, insect and small animal breeding, etc. It can accurately simulate different environmental and climatic conditions.

Features

humanized design

Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

Use 134a fluorine-free refrigerant, effective, energy-saving, and make the environment healthier!

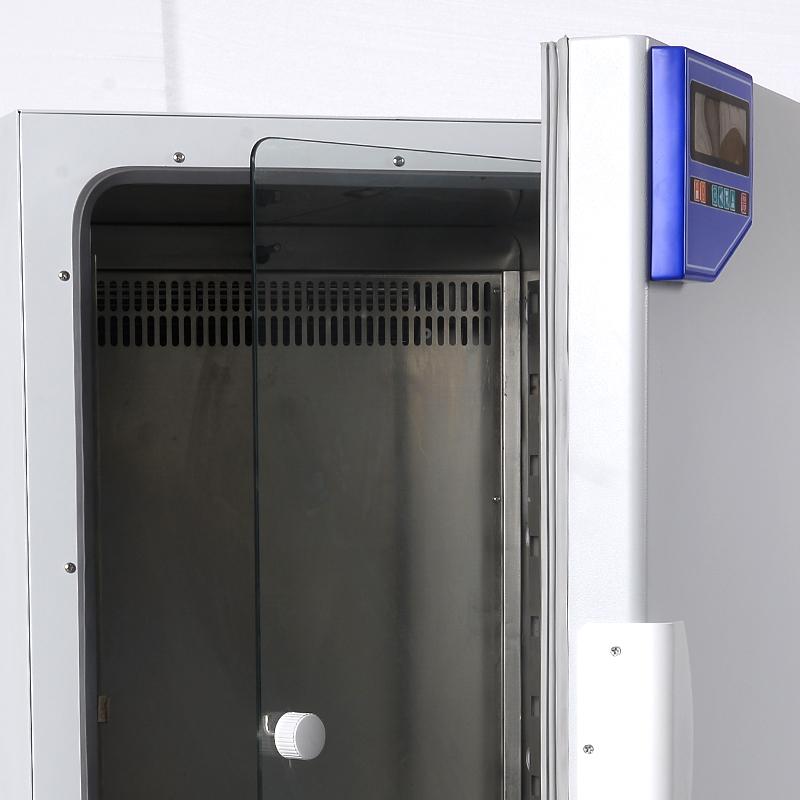

It adopts mirror stainless steel liner, the semi-circular arc design of the four corners is easy to clean, and the distance between the shelves in the box can be adjusted.

The wind speed of the equipment fan can be adjusted in "fast and slow" gears to prevent the customer from causing the sample to lose too fast due to water loss during use, and the experiment fails.

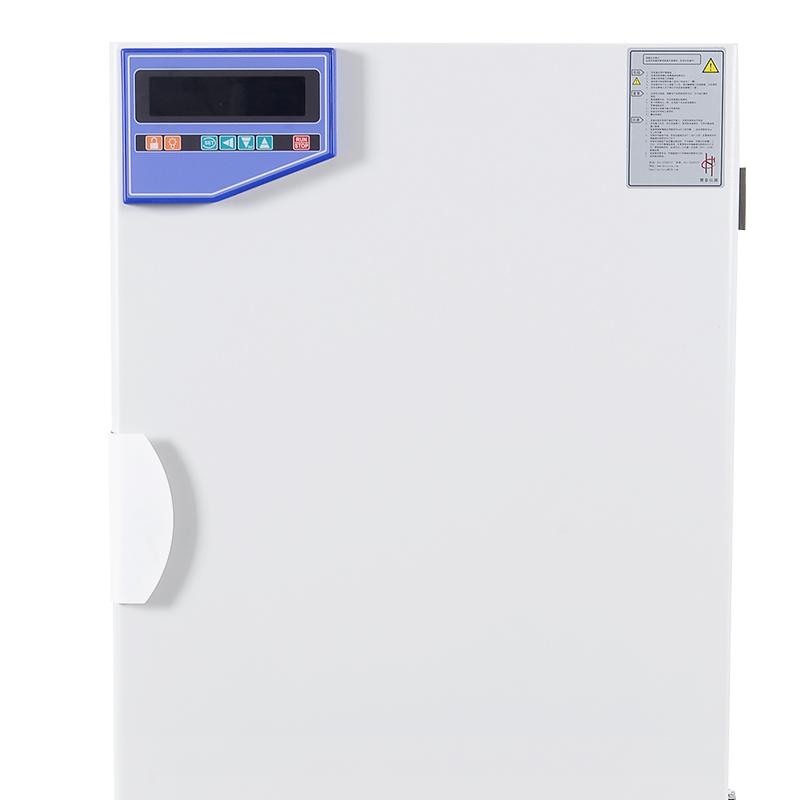

The instrument control of the whole machine is placed in the upper left corner of the door panel, the whole machine is beautiful and generous, saving the space for product placement.

There is a test hole with a diameter of 25mm on the left side, which is convenient for experimental operation and temperature measurement.

The double-layer door structure has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

The overall surface of the box is sandblasted, which is not easy to scratch and easy to clean.

Quality Assurance

International brand compressors are used, and the self-developed compressor cooling system can effectively prolong the service life of the compressor.

The JAKEL tube flow circulation fan is used, coupled with a uniquely designed air duct structure, to create a good air circulation system and effectively ensure the temperature uniformity in the box.

This product is equipped with LED light source as standard, which can be divided into 10 levels of dimming. The direction of the light source is a vertical light source, and the light source board is placed inside the cabinet. If a large sample is placed for experimentation, the light source board can be disassembled. Fast light source power transfer.

The microcomputer controls the temperature and light intensity, and the temperature can be set differently according to the presence or absence of light, day and night.

PID control method, accurate control and small fluctuation, menu-style operation page, easy to understand and easy to operate.

The program has 99 cycles, each cycle is divided into 30 segments, and each cycle is 99 hours and 59 minutes, which can meet almost all complicated experimental procedures.

Continuous operation for a long time.

Independent temperature limit alarm system (optional)

If the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will prompt the operator. Ensure the safe operation of the experiment without accidents.

Convenient data processing (optional)

With USB or RS485 interface, it can be connected to a printer or computer, and can record the change of temperature parameters. (optional)

Optional

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Packing list：host X1, rack X2, certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
