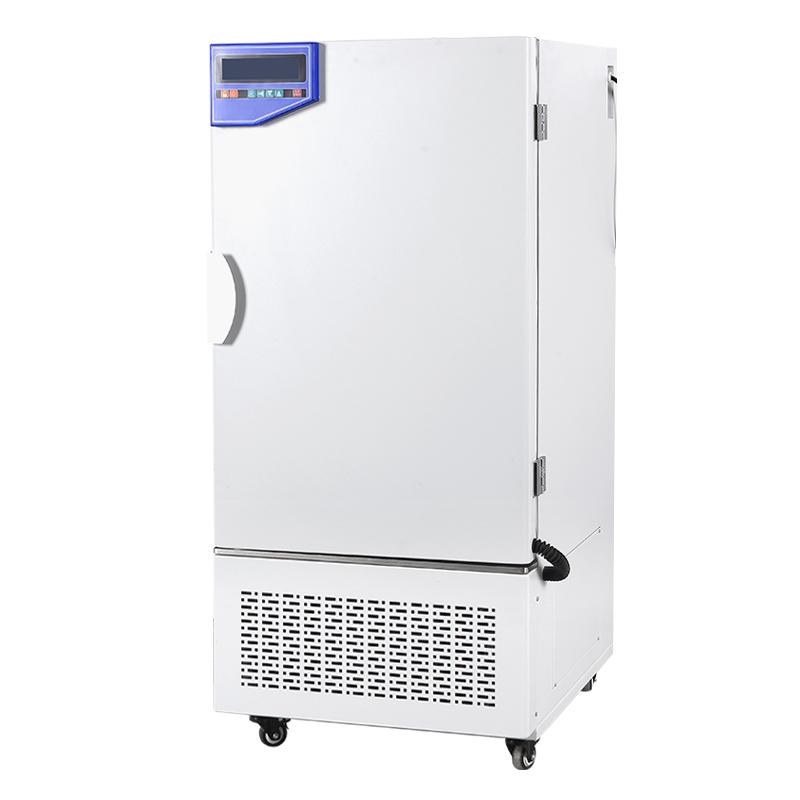

HUITAI HQH-400N Environmental Chamber 400L volume, ten-level dimming, Temperature and Humidity control

HQH-400N

Environmental Chamber

400L large-capacity design, temperature control accuracy +/- 1 ℃, support ten-level light regulation. Temperature uniformity is ensured by using refrigerant without fluorine and circulating fan system, and its own micro-pump realizes accurate humidification to meet the needs of long-term continuous experiments.

Overview

It is widely used in microbial tissue cell culture, seed germination, seedling breeding test, plant cultivation, insect and small animal breeding, etc. It can accurately simulate different environmental and climatic conditions.

Features

humanized design

Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

Use 134a fluorine-free refrigerant, effective, energy-saving, and make the environment healthier!

There is a test hole with a diameter of 25mm on the left side, which is convenient for experimental operation and temperature measurement.

The wind speed of the equipment fan can be adjusted in "fast and slow" gears to prevent the customer from causing the sample to lose too fast due to water loss during use, and the experiment fails.

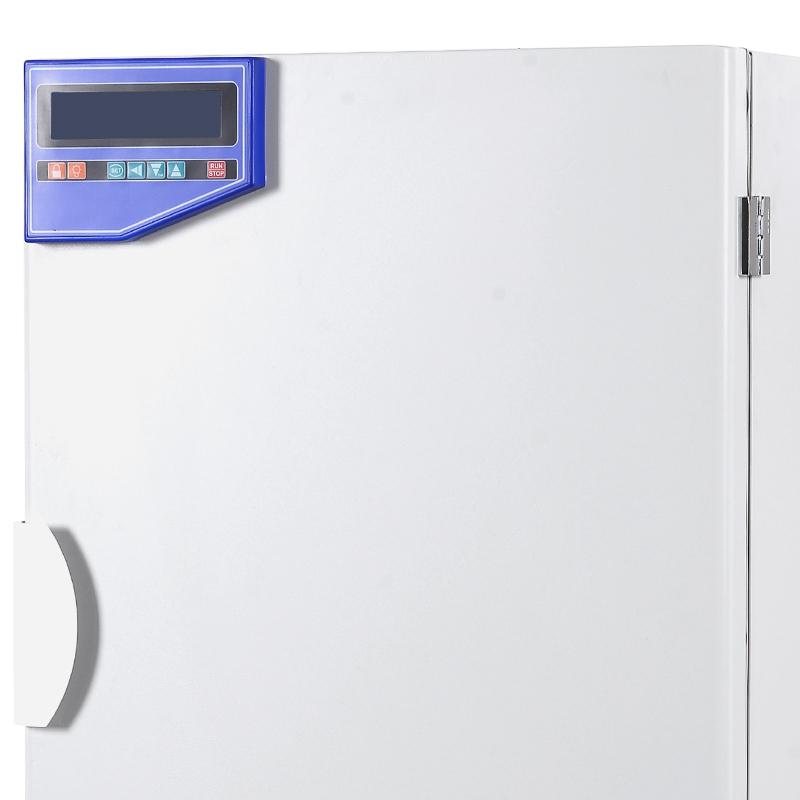

The instrument control of the whole machine is placed in the upper left corner of the door panel, the whole machine is beautiful and generous, saving the space for product placement.

The product is equipped with a miniature water inlet pump inside, which can precisely control the water volume and make little noise.

It adopts mirror stainless steel liner, the semi-circular arc design of the four corners is easy to clean, and the distance between the shelves in the box can be adjusted.

The double-layer door structure has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

The overall surface of the box is sandblasted, which is not easy to scratch and easy to clean.

Quality Assurance

International brand compressors are used, and the self-developed compressor cooling system can effectively prolong the service life of the compressor.

The JAKEL tube flow circulation fan is used, coupled with a uniquely designed air duct structure, to create a good air circulation system and effectively ensure the temperature uniformity in the box.

It adopts the internationally famous brand humidity sensor and the self-designed built-in Water Tank electric heating tube humidification system to effectively ensure the humidity deviation.

This product is equipped with LED light source as standard, which can be divided into 10 levels of dimming. The direction of the light source is a vertical light source, and the light source board is placed inside the cabinet. If a large sample is placed for experimentation, the light source board can be disassembled.

The microcomputer controls the temperature, humidity, and illuminance, and the temperature can be set according to the presence or absence of light, and it can be set differently day and night.

PID control method, accurate control and small fluctuation, menu-style operation page, easy to understand and easy to operate.

The program has 99 cycles, each cycle is divided into 30 segments, and each cycle is 99 hours and 59 minutes, which can meet almost all complicated experimental procedures.

Continuous operation for a long time.

Independent temperature limit alarm system (optional)

If the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will prompt the operator. Ensure the safe operation of the experiment without accidents.

Convenient data processing (optional)

With USB or RS485 interface, it can be connected to a printer or computer, and can record the change of temperature parameters. (optional)

Optional

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Packing list：Host X1, shelf X3, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
