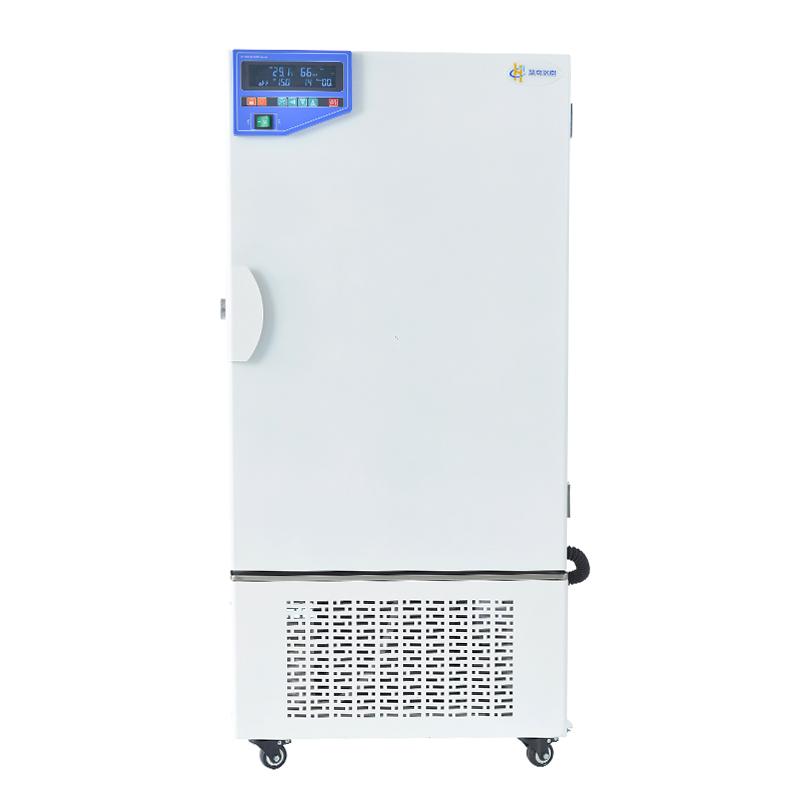

HUITAI LHS-100SCN Constant Temperature and Humidity Chamber 0~65 ℃/100L

LHS-100SCN

Constant Temperature and Humidity Chamber

Overview of uses

The constant temperature and Humidity Chamber has a precise temperature and humidity control system, which provides various environmental simulation conditions required for industrial research and biotechnology testing, so it can be widely used in sterility testing, stability testing, and raw material performance, product packaging, product life and other tests of industrial products.

Features

User-friendly design

Large-screen LCD display, multi-group data display on one screen, menu-based operation interface, simple to understand, easy to operate. (Standard)

The use of 134 A fluorine-free refrigerant is effective, energy-saving, and makes the environment healthier!

It adopts a mirrored stainless steel liner, the four-corner semi-circular arc design is easy to clean, and the shelf spacing in the box is adjustable.

The wind speed of the fan of the equipment is adjusted in 'fast and slow' gears to prevent customers from losing too much water due to water loss and failing the experiment when using it.

The instrument control of the whole machine is placed in the upper left corner of the door panel, which makes the whole machine beautiful and generous, saving the space for product placement.

It adopts double-layer door structure, which has good thermal insulation performance, and does not affect the temperature in the box when observing the situation in the box.

There is a test hole with a diameter of 25mm on the left side of the cabinet, which is convenient for experimental operation and temperature measurement.

The overall surface of the box is sandblasted, which is not easy to scratch and easy to clean.

Quality Assurance

The use of international brand compressors, self-developed compressor cooling system, can effectively extend the service life of the compressor.

JAKEL pipe flow circulation fan, with a unique design of air duct structure, creates a good air circulation system, effectively ensuring the temperature uniformity in the box.

The humidity sensor of the international good brand and the self-designed built-in Water Tank electric heating pipe humidification system can effectively ensure the humidity deviation.

PID control mode, temperature control, humidity control accurate fluctuation small, menu-style operation page, simple and easy to understand, easy to operate.

With 99 cycles of programming, each cycle is divided into 30 segments, each section is 99 hours and 59 minutes of cycle steps, which can meet almost all complex experimental processes.

Independent temperature alarm system (optional)

If the limit temperature is exceeded, the operation will be automatically interrupted, and the operator will be alerted by sound and light alarm. Ensure the safe operation of the experiment without accidents.

Convenient data processing (optional)

With USB or RS485 interface, it can be connected to a printer or computer, and can record the change of temperature parameters. (Optional)

Options

Intelligent program controller

Independent temperature limiting controller

BOD dedicated socket

Embedded printers

RS485 interface and dedicated software

Door observation window

Test hole 25mm/50mm

Packing list：host X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
