KYLINBELL GL-805 Miniature Desktop Vacuum Pump

The adjustable vacuum range of the KYLINBELL GL-805 miniature desktop Vacuum Pump is -300-600mbar, the vacuum degree Flow velocity is 6L/min (no load), the liquid absorption speed is 15ml/s, and the noise is less than 50db (A) within 1 meter. The size of the whole machine is 320 * 120 * 230mm (with collection bottle), and the collection bottle capacity is 1000ml.
Model：
Certificate
Contact
Details SPEC CAT

kylinbell GL-805 Miniature desktop Vacuum PumpSPEC

kylinbell GL-805 Miniature desktop Vacuum PumpDetails

kylinbell GL-805 Miniature desktop Vacuum PumpPacking list

SKU
NB024804
Adjustable vacuum range
-300 - -600mbar
Vacuum degree Flow velocity
6L/min (no load)
Liquid absorption rate
15ml/s
noise value
<50dB(A)
Machine size
320 * 120 * 230Mm (with collection bottle)
Collection bottle Capacity
1000ml
Power Supply
220V
Machine Weight
3.5KG
GL-805
Miniature desktop Vacuum Pump

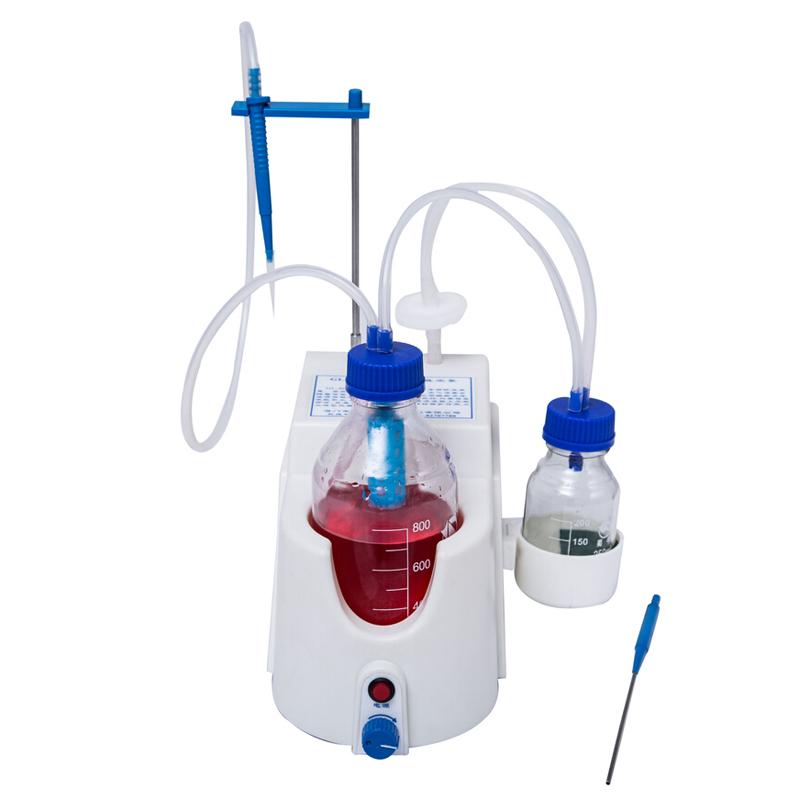

KYLINBELL GL-805 Miniature Desktop Vacuum Pump Picture

Application

The Limbell Instruments offer a fast and cost-effective solution for the disposal of liquid waste. It is a compact, all-in-one vacuum operating system with a separate vacuum source. The system's compact size and flexibility provide the most comfortable benchtop aspiration experience for your experiments.

GL-805 is convenient and safe

★The GL-805 desktop pipette device is unpacked, take out the instrument, screw on the screw cap and plug in the power supply

★ The Vacuum Pump works very quietly and can adjust the pumping power. A 0.22um polymer bacterial filter is installed on the liquid accumulation bottle and pump body, the outer diameter of this filter is 55mm, the diameter of the filter membrane is 47mm, and the filtration accuracy is 0.22um, which has the function of filtering general bacteria

★ Replacing a full liquid collection bottle is very convenient, just unscrew the cap and pour out the waste from the bottle. GL-805 uses a laboratory

Very easy to find standard screw top blue cap bottle with great convenience

★The GL-805 is compact enough to fit on any lab bench or Laminar Flow Cabinet

★ The built-in anti-overflow device can effectively protect the liquid from entering the pump body, and when the liquid rises and touches the buoy, the buoy will rise and resist the retraction

Promancy to prevent liquids from being pumped into the pump. The instrument waste liquid collection bottle is fixed by a fence to avoid accidentally touching the bottle and dumping it during operation.

GL-805 is widely used

★ Aspirate small amounts of liquid from microcentrifuge tubes/microplates

★ Recovery of supernatant after centrifugation (e.g., RNA/DNA extraction)

★ Wash the western blot or Elisa test

★ The remaining reagents were recovered

★ Western blotting buffer

★ Pipette excess liquid from the slide or Petri dish

★ Pathogenic bacteria liquid recovery

★ Cell staining, extraction of cell culture medium

★ When ordering, you can choose a brown collection bottle that is protected from light (the standard configuration is a clear blue cap bottle)

Friendly reminder

1. Please tighten the cap after replacing the collection bottle or pouring out the waste liquid from the collection bottle, if it is not tightened, it will cause air leakage during aspiration and inability to absorb liquid.

2. When the waste liquid is collected to 800ml, the waste liquid should be poured out in time, otherwise the waste liquid may be sucked into the pump body of the instrument and damage the instrument

It is not covered by the warranty, so please pay special attention when using it.

3. Please clean the instrument pipeline frequently, if the pipeline is not cleaned for a long time, some fungi may grow in the pipeline and block the pipeline

Method aspiration.
