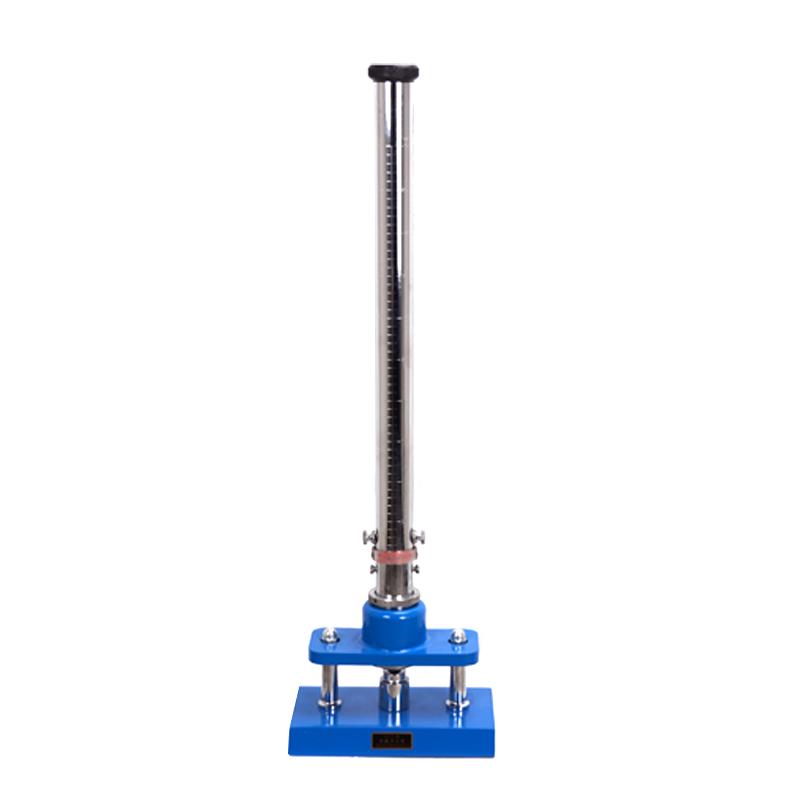

YONGLIDA QCJ-100 film Impact height is 0~100cm

QCJ-100

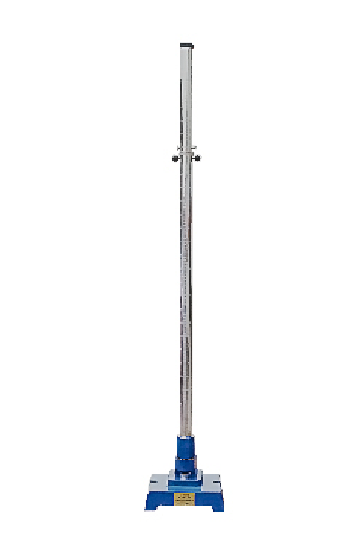

Film Impact Device

In line with the national standard GB/T1732, Impact height can be adjusted from 0 to 100cm, suitable for film Impact performance testing. Its weight mass is 1000g, Striker Diameter is φ 8mm, easy to operate, suitable for impact resistance evaluation of various films.

Applications

It is designed according to the national standard GB/T1732 "Determination of impact resistance of paint film".

Principle

Set the hammer at the required height by the controller screw, and its height can be read from the positioning mark. Press the controller screw and the controller spring will be compressed. At this time, the round hole of the controller slider and the upper cover of the controller Align the hook with the round hole at the lower bottom of the controller, so that the connected weight falls down and hits the punch. The punch acts downward on the sample plate that was placed on the pillow block in advance, and then lifts the weight body and takes it out for testing. Passed samples to observe the paint film test on the samples.

Packing list：host X1, heavy hammer x2, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
