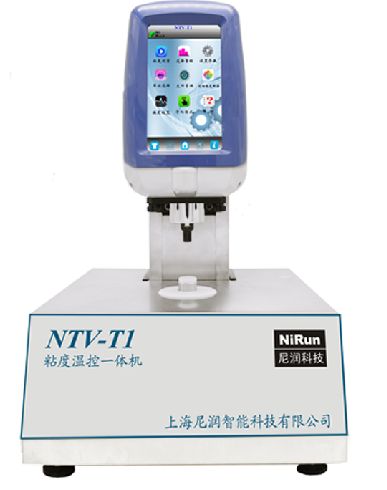

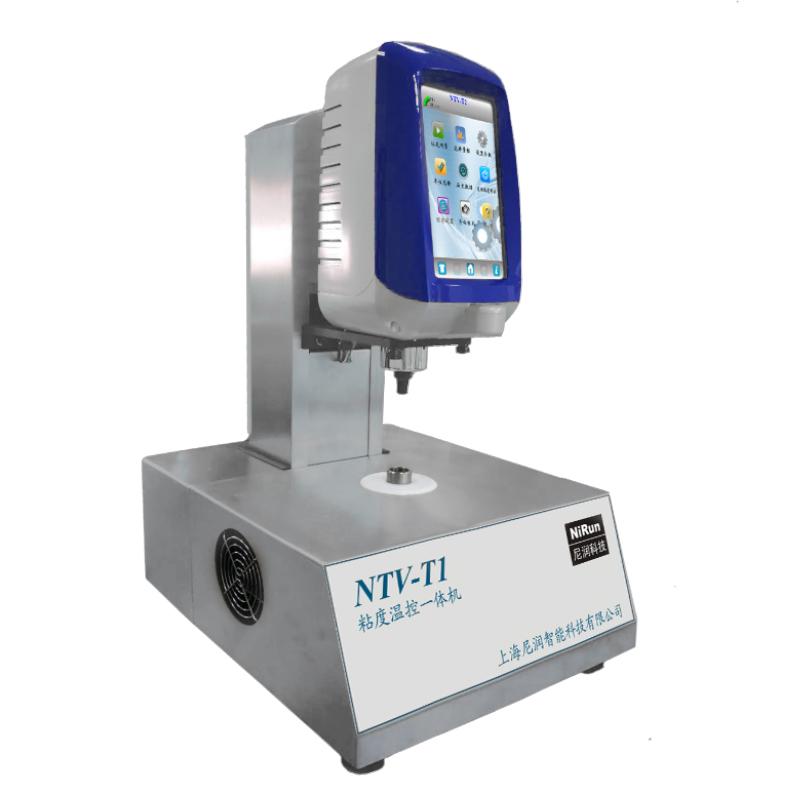

NIRUN NTV-T1L Viscosity and Temperature Control Integrated Machine 5~ 3300000mPa · s

NTV-T1L

Viscosity temperature control machine

Measurement range 5~ 3300000mPa · s, Rotor specification SC4-21, 27, 28, 29, Rotor speed 0.3~ 100rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage input AC100-240V, 50Hz/60Hz. Output DC17V1.2A, Interface RS232, USB, Operating language Chinese, capacity 2~ 16ml.

Introduction

Viscosity temperature control all-in-one machine is a combination of viscosity measurement and precise temperature control. It breaks through the split machine composed of constant temperature Water Tank, viscosity measuring instrument and small sample adapter in the existing market.

The all-in-one viscosity measurement system is composed of a 7-inch wide touch screen host, a small sample adapter (SSR), a cylindrical sample sleeve, an SC4 rotor, and a temperature controller;

Only 2 to 16m of sample is required for testing, and the cylindrical geometry of the SC4 rotor provides very accurate viscosity measurements.

Electric control lift, precise positioning. The small sample cylinder is easy to load and unload, which brings convenience to the cleaning work.

The small-volume sample cylinder is closely connected with the temperature controller, so that the temperature of the sample can be kept very accurately. The stirring action of the rotor, coupled with the small amount of sample, can minimize the inhomogeneity of the sample temperature and greatly shorten the constant temperature time;

The viscosity measurement system comes with a password protection temperature and viscosity correction coefficient, allowing users to correct the temperature and viscosity correction coefficient by themselves on the premise of reliable and accurate data;

Support infinitely variable speed measurement of viscosity, input any speed, it will directly reflect the full scale of each rotor, which is convenient for users to select test conditions;

Support external U disk data storage; single-point, continuous, and timing three storage methods are optional.

plan

Packing list：host x1, rotor x4 (1 each of SC4-21, 27, 28, 29), manual x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
