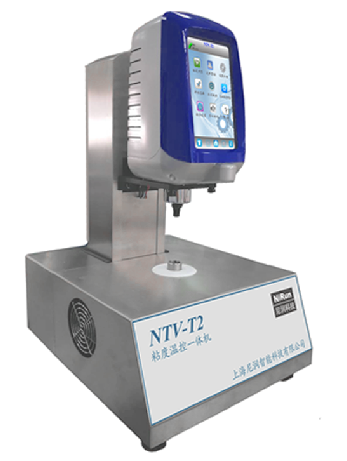

NIRUN NTV-T2L Viscosity and Temperature Control Integrated Machine 5-33Mmpa.s

NTV-T2L

Viscosity temperature control machine

Measurement range 5~ 33Mmpa.s, Rotor specification SC4-21, 27, 28, 29, Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage input AC100-240V, 50Hz/60Hz. Output DC17V1.2A, Interface RS232-USB interface, Operating language Chinese, capacity 2~ 16ml, lifting system automatic lifting system, Temperature range - 1~ 150 ℃, temperature accuracy +/- 0.1 ℃.

Introduction

The rheometer temperature control all-in-one machine is a combination of viscosity measurement and precise temperature control. It breaks through the split machine composed of constant temperature Water Tank, viscosity measuring instrument and small sample adapter in the existing market. The all-in-one rheometer system is composed of a 7-inch wide touch screen host, a small sample adapter (SSR) cylindrical sample sleeve, an SC4 rotor, and a temperature controller; it can display shear rate and shear stress indicators, and can be used in a certain Accurate measurement at the shear rate, only 2 to 16m of sample is needed for detection, the cylindrical geometry of the SC4 rotor can provide very accurate viscosity measurement; electric lift, precise positioning. The small sample cylinder is easy to load and unload, which brings convenience to the cleaning work. The small-volume sample cylinder is closely matched with the temperature controller, which can accurately carry out constant temperature of the sample. The stirring action of the rotor, combined with the small sample volume, minimizes sample temperature non-uniformity. The constant temperature time is greatly shortened. The rheometer system has password-protected temperature and viscosity correction coefficients, allowing users to correct temperature and viscosity correction coefficients on the premise of reliable and accurate data. Support infinitely variable speed measurement of viscosity, input any rotational speed, it will directly reflect the full scale and shear rate of each rotor, which is convenient for users to select test conditions. You can also control the rheometer to make rheological curves through simple programming; support external U disk data storage; single-point, continuous, and timing three storage methods are optional.

Precise temperature control is very helpful for testing the performance changes of your samples and predicting the behavior of products. Controlling the temperature when measuring the viscosity helps to ensure the accuracy of the experimental results. Since the temperature controller is composed of a semiconductor and a built-in automatic optimization temperature program control, the temperature control accuracy is ±0.1. The temperature control is controlled by NTV-T2 all-in-one machine, and can also be controlled by DV software. It has good operability and flexibility.

Packing list：Host × 1, 21 #, 27 #, 28 #, 29 #1 rotor each, manual × 1, certificate × 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
