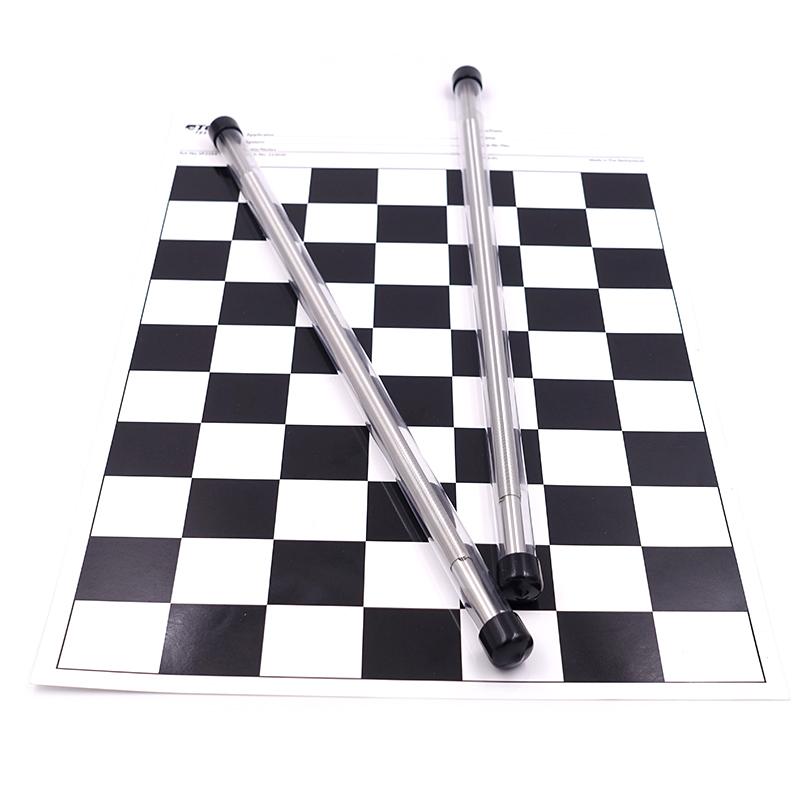

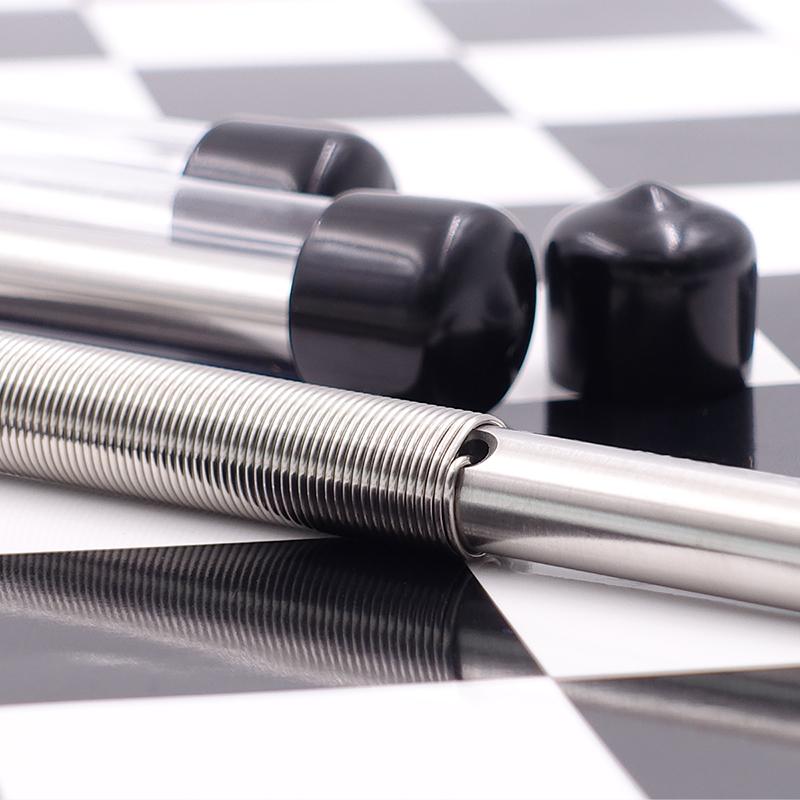

RDS 30 #3/8 "Mayer Rods WFT 68.6μm Length 400mm

A According to the parameter requirements, when the solid content is 8%, the solid content is about 5.5g, converted out of the wet film thickness of 68.6μm, with 30 #rod

A Hello, it is 68.6μm.

A Hello, no, you don't need to roll, keep it still and scrape it down vertically.

A Hello, yes, each type of scraper has a specific film Film thickness, unless Miscellaneous factors will cause the scratch coating deviation.

A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.

A The 30 #3/8 "Applicator rod will do

A Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.

A RDS Film Applicators do not wear handles. There may be uneven force in hand-held Spreader proofing. It is recommended to configure the Drawdown Plate substrate. Thanks for the consultation.

A Hello, the exact wet film thickness corresponding to the rod number #30 of RDS is 68.6μm. Since most customers are not very concerned about 0.1μm, we rounded it to 70μm after introducing it into China. But as customer requirements and processes become more and more strict, we have also made the accurate Spreader wet film thickness surface of Film Applicator. The accuracy reaches 0.1μm. Sorry for causing you trouble.

A RDS Mayer-Rod Film Applicator is commonly used in Gloss oil Spreader. The difference is that you need to choose the corresponding model according to the wet film thickness of the sample you want to apply. You can refer to the wet film thickness calculation formula:/mohou/Thank you for your consultation!
