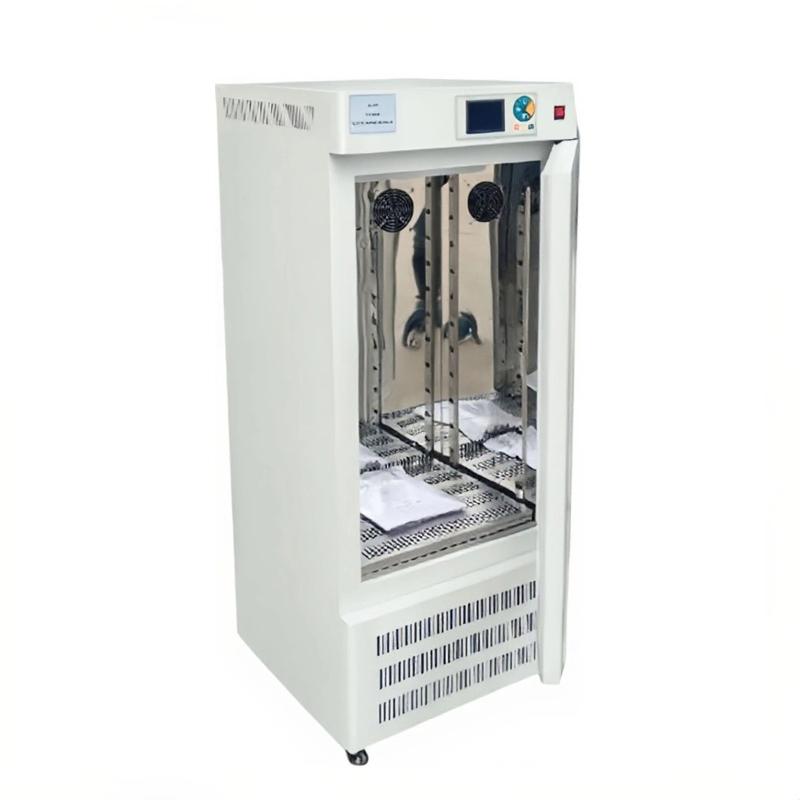

FARI FR-1240-1000A Constant Temperature and Humidity Incubator

FR-1240-1000A

Constant temperature and humidity Incubator

Introduction

This equipment can be used for bacterial cultivation, breeding, fermentation and other constant temperature experiments and cultivation in scientific research and industrial production departments such as medical and health, industrial production, biochemistry and agricultural science.

The scientific air duct design coupled with exquisite craftsmanship and powerful non-standard production capabilities ensure that you have the most suitable drying equipment.

FR-1240 constant temperature and humidity Incubator adopts large LCD display microcomputer intelligent adjustment technology for temperature control. It has the function of automatic display of measured temperature and set temperature at the same time, and has PID adjustment, constant temperature timing and self-tuning functions. The temperature control accuracy is high. Strong anti-interference ability, easy to operate.

The heating principle adopts the principle of air circulation, which makes the temperature distribution in the box more uniform and the temperature rise more stable.

The brushed stainless steel liner makes it easier to clean the studio, and the shelf can be set arbitrarily and adjusted in height;

There is an exhaust hole in the north of the box, and a ventilation hole in the bottom, so that the gas volatilized by the experimental items can be discharged from the back.

Function

It is controlled by microprocessor and has the functions of monitoring, temperature control and protection. Lighting lamp in the box: the culture in the box can be observed, and the stainless steel liner will not corrode.

features

1. The outer box of this equipment is made of cold-rolled steel plate, the surface adopts electrostatic spraying process, the inner tank is made of stainless steel, the insulation layer is formed by polyester foam, and the light-transmitting window adopts double-layer hollow glass to ensure the insulation performance of the box (low temperature Incubator And BOD and other Incubators that require stainless light have no glass windows), there are cold and hot air ducts in the box body to make the gas circulation in the box smooth and the temperature more balanced.

2. The system adopts "zero-crossing" non-contact switch circuit technology, thus realizing pulse width modulation heating and cooling, so that the temperature control fluctuation range is less than 0.5°C, and the internal unevenness is about 1.0°C.

Instructions

1. Conditions of use:

A. Ambient temperature: 10-30°C

B. No strong corrosive gas, well ventilated, Relative Humidity below 85%

C. Power supply: 220V±10%, 50HZ capacity not less than 1KW, with a good grounding wire.

2. How to use:

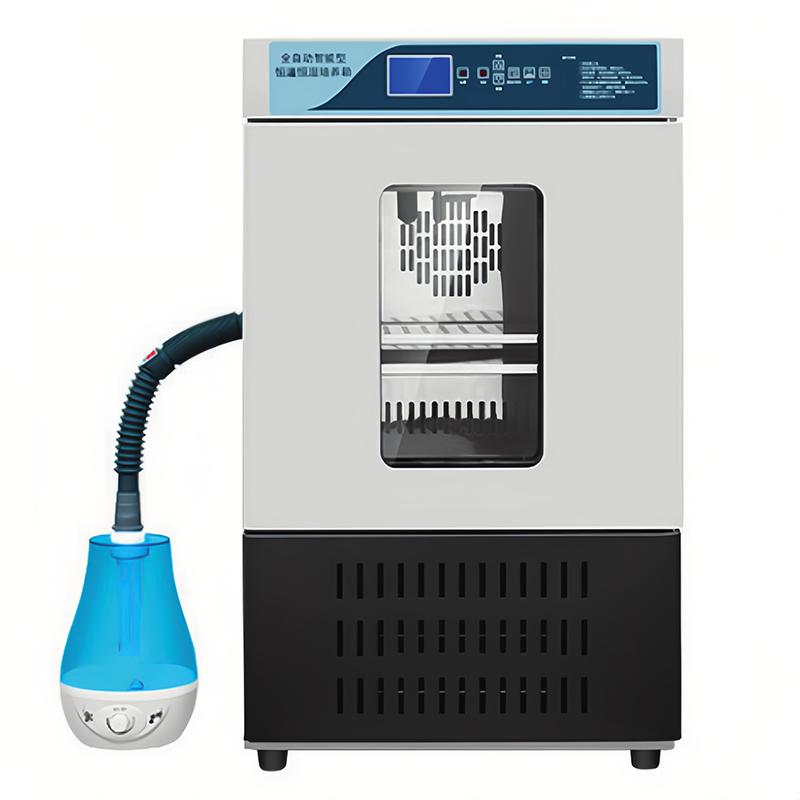

A. Before use, put the ultrasonic nebulizer next to the machine, add water to the ultrasonic nebulizer, connect the gasification pipeline, and plug the power cord of the ultrasonic nebulizer into the three-wire socket on the right side of the box.

B. Stop humidifying when the machine is heating

Precautions

1. Pay attention to adding water in time when using the humidifier, and add water once every 1-2 days according to the humidity requirements to prevent damage. When adding water, remove the power plug of the humidifier, remove the water storage tank of the humidifier, turn up and unscrew the water filling sealing port counterclockwise, after adding water, tighten the sealing port, put it on the humidifier, press the humidifier power supply Can.

2. After the equipment lands, if the ground is uneven, it should be leveled.

3. The general movement of the equipment should move in parallel, and the inclination in any direction should be less than 45 degrees.

①When the equipment is in normal operation, the placement of the loads in the box should not affect the air circulation, so as to ensure the uniform temperature in the box.

②The tank wall liner and the surface of the equipment should be wiped frequently to keep them clean.

4. If it is not in use for a long time, the power cord should be unplugged to prevent the equipment from being electrified and hurting people, and it should be operated regularly (usually in the first quarter) for 2-3 days according to the conditions of use to drive away the moisture of electrical components and avoid damage to related devices.

Packing list：Host X1, baffle X1, humidifier X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
